3-22 Service Manual
4510-001
Pick Roller
There is more than one way to remove the pick roller, but the
procedure below is the easiest.
1. Open the front cover, and remove the toner cartridge.
2. Remove the rear and top covers along with the paper input tray
assembly.

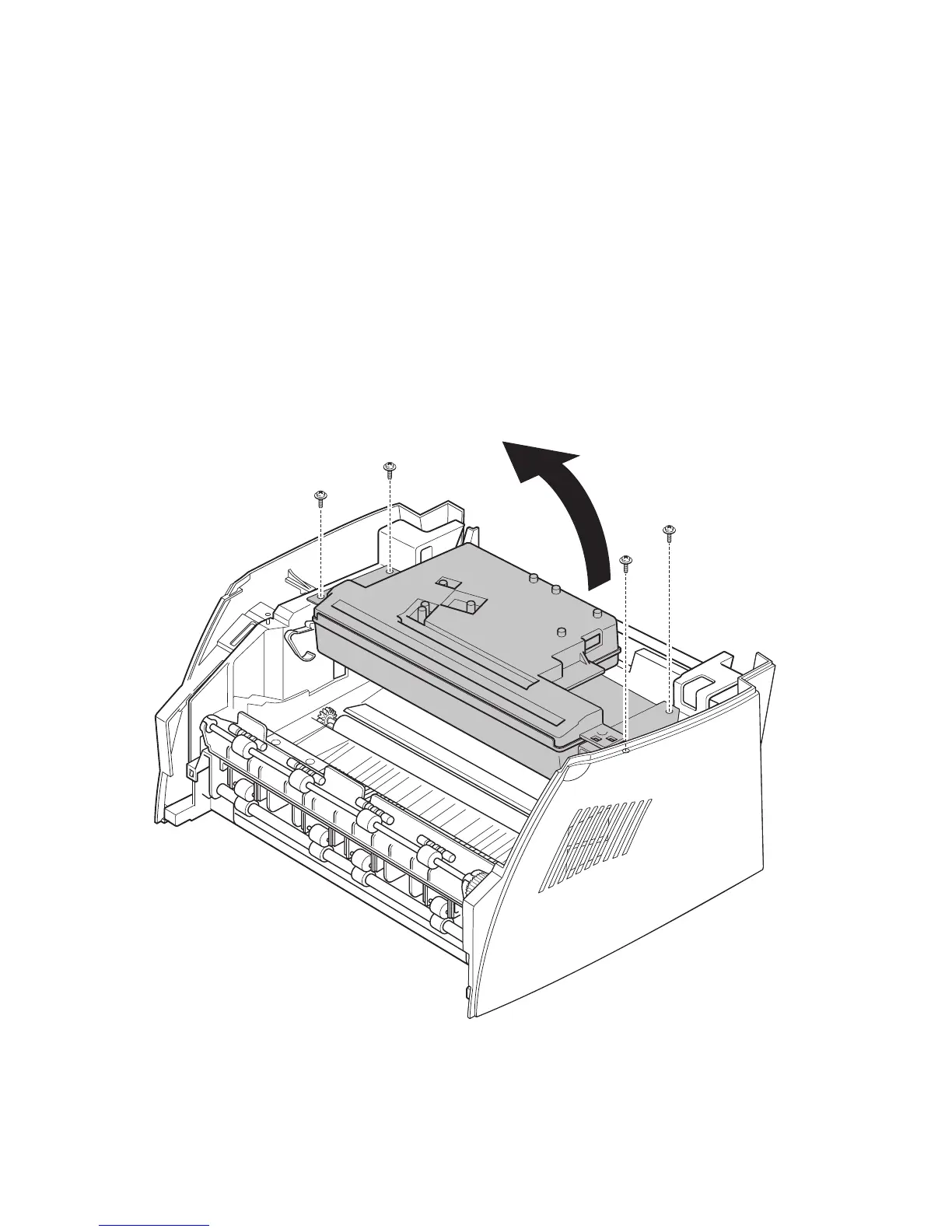

3. Remove the four screws securing the printhead bracket to the
plastic frame.
4. Lift the printhead bracket (with printhead still attached) upward
and to the left to disconnect the pick roller assembly from the
pick roller shaft.
5. Remove two screws securing the pick roller assembly to the
printhead bracket.
6. Remove the pick roller assembly from the bracket.
