Repair Information 3-19
4510-001

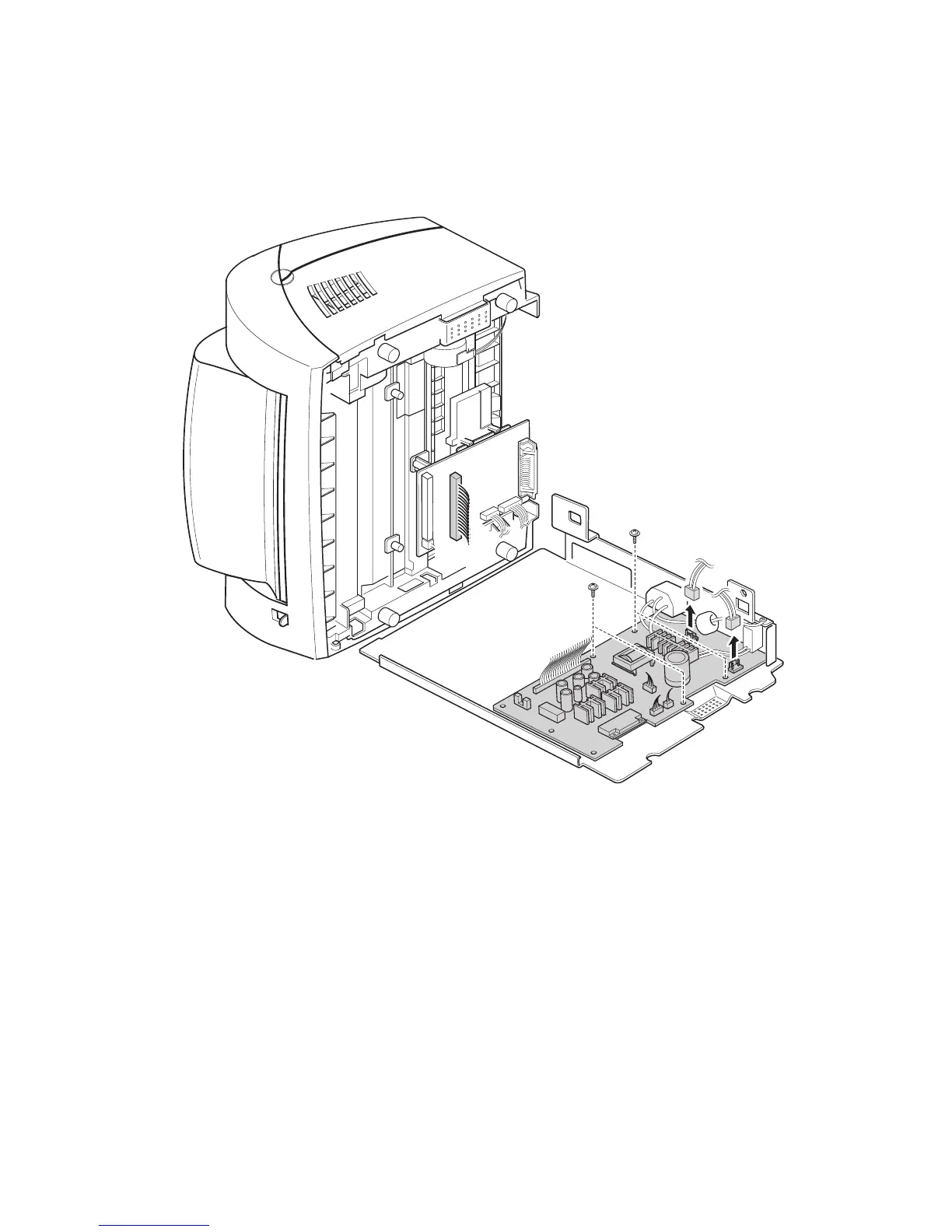

4. Unplug connector (CN5) from the main board and connectors
(CN1, CN2, CN501, CN502) from LVPS. Remove the clip that
secures the LVPS to the metal bottom pan. Remove five screws
from the LVPS and remove the LVPS board.
