Lexmark MS510dn Service Manual

Printhead assembly adjustments
Printhead assembly mechanical adjustment

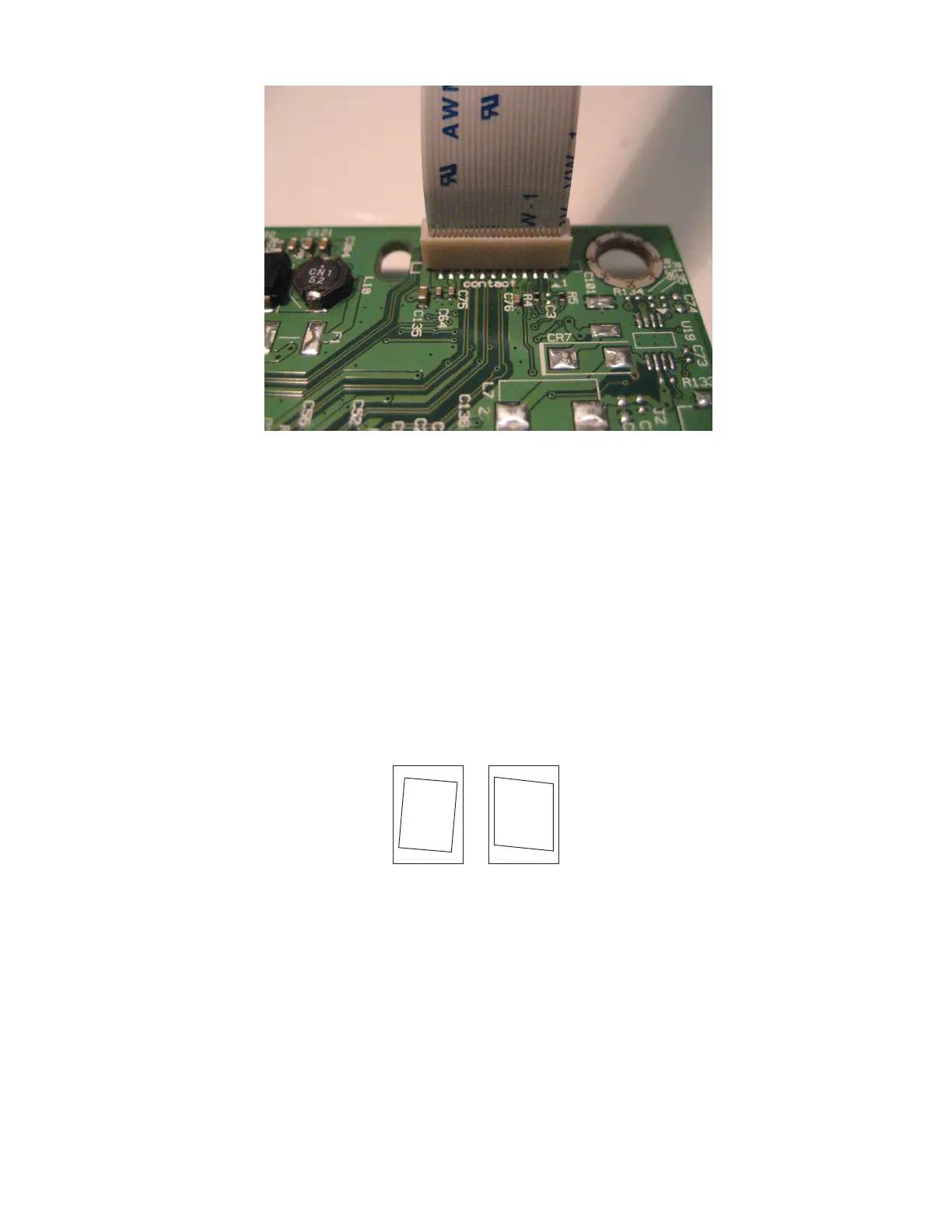

A printhead needs to be correctly positioned after it has been removed. Use a sharp pencil or a small, flat-blade
screwdriver to mark the location of the old printhead on the printer frame. Align the new printhead relative to
the location of the old printhead.
Note: Skew is caused by a sheet being fed through the printer while misaligned. The entire image is rotated
relative to the sheet edges. However, a mechanically misaligned printhead causes the horizontal lines to
appear skewed, while the vertical lines remain parallel to the vertical edges. There are no adjustments for
skew. Check the pick tires for wear, the paper path for obstructions, the fuser for proper setting, and the tray
paper guides for fit to the media.
Paper feed
skew
Printhead
misalignment
To adjust the printhead:
1 POR into the Diagnostics menu, and print a Quick test page:
Diagnostics Menu > Print Tests > Tray 1 > Single
2 Fold the printed test page on the left side so that a few millimeters of grid lines wrap around the outside of
the fold.
4514-6xx
Parts removal
225

Lexmark MS510dn Specifications

General

Color	No
Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Print speed (black, normal quality, A4/US Letter)	42 ppm
Duplex print speed (black, normal quality, A4/US Letter)	18 ppm
Security algorithms	802.1x RADIUS, EAP-TLS, EAP-TTLS, LEAP, MD5, PEAP
Printing colors	Black
Country of origin	China
Maximum duty cycle	80000 pages per month
Recommended duty cycle	1500 - 14000 pages per month
Number of print cartridges	1
Page description languages	Microsoft XPS, PCL 5e, PCL 6, PDF 1.7, PostScript 3, PPDS
Internal memory	256 MB
Processor frequency	800 MHz
Maximum internal memory	1280 MB
Sound power level (standby)	15 dB
Sound pressure level (printing)	55 dB
Total input capacity	350 sheets
Total output capacity	150 sheets
Maximum input capacity	2000 sheets
Envelopes sizes	7 3/4, 9, 10, DL
Maximum print size	216 x 356 mm
Paper tray media types	Card stock, Envelopes, Labels, Plain paper, Transparencies
Paper tray media weight	60 - 120 g/m²
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Letter (media size), Oficio (media size), Statement (140 x 216mm), Legal (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Standard interfaces	USB 2.0
Optional connectivity	Wireless LAN
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Mac operating systems supported	Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion
Linux operating systems supported	Fedora 14, Fedora 15
Other operating systems supported	Novell NetWare 5.x, Novell NetWare 6.x, Novell Open Enterprise Server
Server operating systems supported	Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64
Windows operating systems supported	Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Power consumption (printing)	- W
Package weight	16700 g
Networking features	Gigabit Ethernet
Compatible operating systems	SUSE Linux Enterprise Server 10, 11\\r SUSE Linux Enterprise Desktop 10, 11\\r Red Flag Linux Desktop 6.0\\r Linpus Linux Desktop 9.6\\r Debian GNU/Linux 5.0, 6.0\\r Red Hat Enterprise Linux WS 4.0, 5.0, 6.0\\r Ubuntu 11.04, 11.10, 12.04\\r openSUSE 11.3, 11.4, 12.1\\r PCLinuxOS 2011.9\\r Mint 9, 10, 11, 12\\r Sun Solaris SPARC 9, 10\\r HP-UX 11.11, 11.23, 11.31\\r Sun Solaris x86 10, 11\\r IBM AIX 5.3, 6.1, 7.1
Sustainability certificates	ENERGY STAR
Display	LCD
Certification	Blue Angel, VCCI, FCC, CE, SEMKO, UL AR, CS
Non-operating altitude	0 - 2896 m
Storage temperature (T-T)	16 - 32 °C
Operating relative humidity (H-H)	8 - 80 %

Weight and Dimensions

Weight	15000 g
Dimensions (WxDxH)	399 x 382 x 263 mm
