Controller board
Controls the printing operation based on the communication with the RIP controller and optional peripherals.
It also controls the fuser, toner dispensing, sensor switch feedback, drive motors, clutches and solenoids

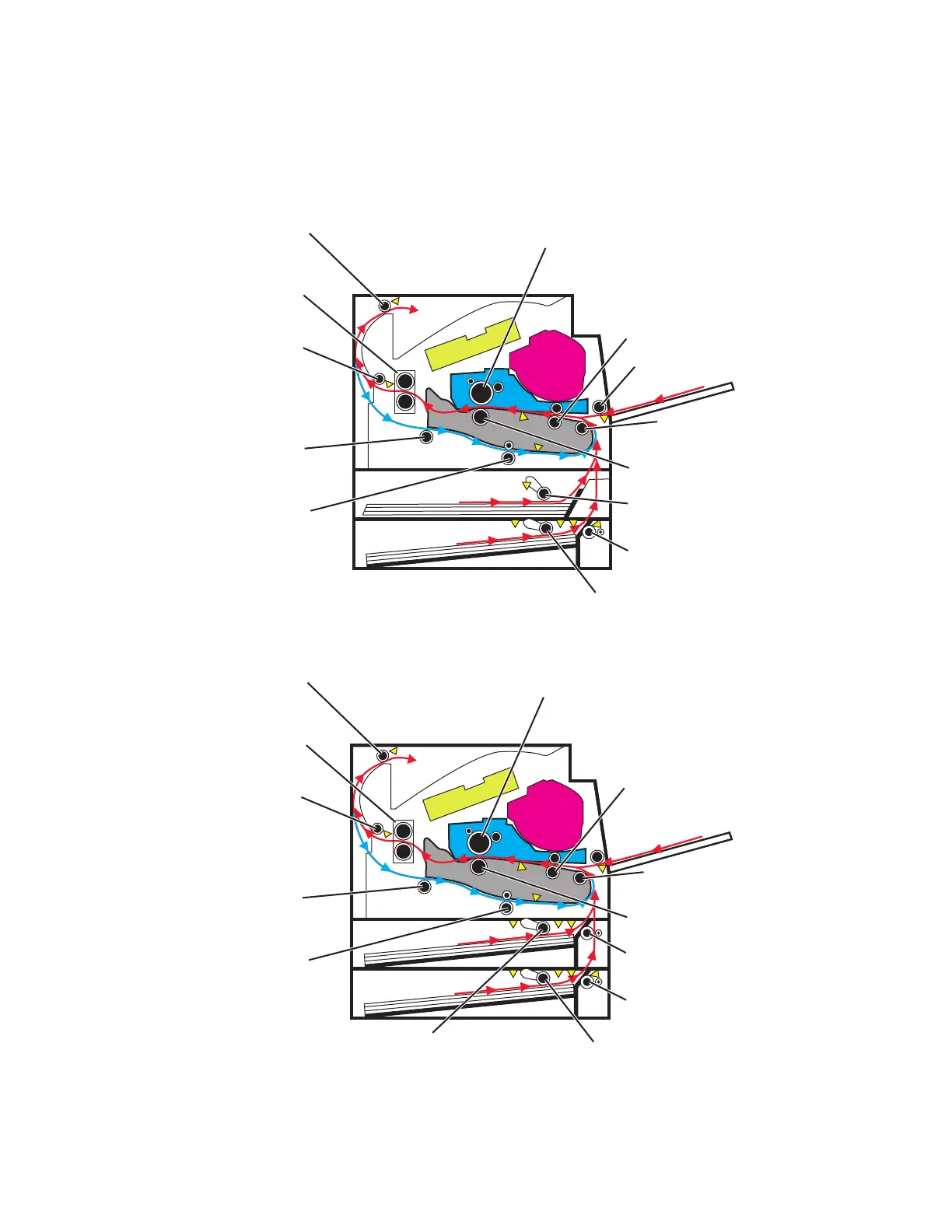

MS310/MS410 rollers
Duplex rear
deliver roller
Transfer roll
First input roller
Photoconductor
drum
Paper exit roller
Fuser assembly
Fuser exit
roller
Secondary input
roller
Duplex front
deliver roller
MPF pick roller
Separator roll
Pick rollers
Pick rollers
MS510/MS610 rollers
Duplex rear
deliver roller
Transfer roll
First input roller
Photoconductor
drum
Paper exit roller
Fuser exit
roller
Secondary input
roller
Duplex front
deliver roller
Separator roll
Pick rollers
Separator roll
Pick rollers
Fuser assembly
4514-6xx
Theory of operation
371
