518

4-3. Do-it-yourself maintenance

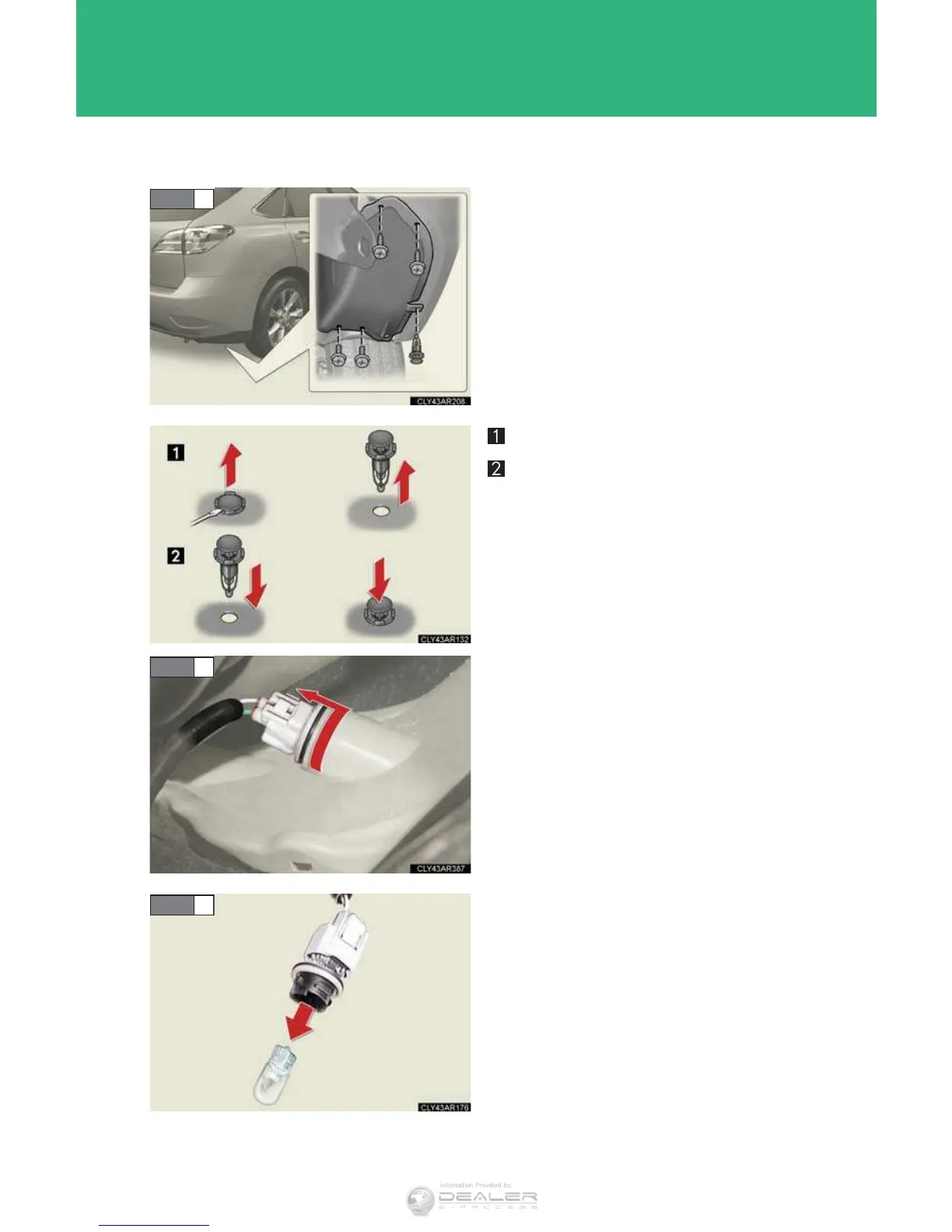

n Rear side marker lights (right side)

Remove the bolts using a Phillips-

head screwdriver, and remove the

clip.

Removing the clip

Installing the clip

Turn the bulb base counterclock-

wise.

Remove the light bulb.

STEP 1

STEP 2

STEP 3
