Lexus 2011 RX350 - Driver’s Side Instrument Panel - Fuses

505
4-3. Do-it-yourself maintenance
4
Maintenance and care

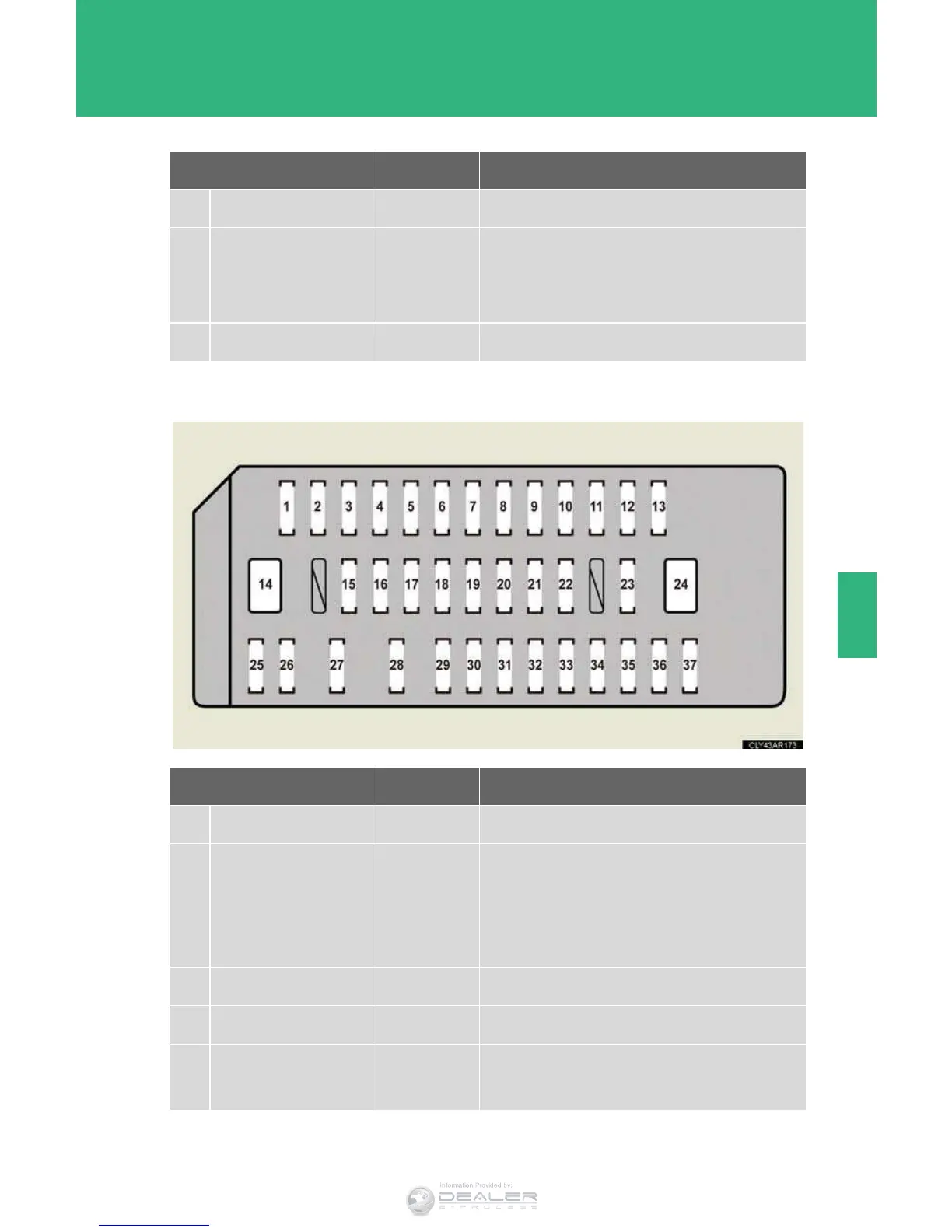

n Driver’s side instrument panel
52
HORN 10 A Horn
53
A/F 20 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
54
S-HORN 7.5 A Security horn
Fuse Ampere Circuit
1
P/P OI NT 15 A Power outlet
2
ECU-ACC 10 A
Navigation system, outside rear view
mirror, multiplex communication sys-
tem, multi-information display, head-
up display
3
CIG 15 A Power outlet
4
RADIO NO. 2 7.5 A Audio system, power outlet
5
GAUGE NO. 1 10 A
Emergency flashers, navigation sys-
tem, head
-up display
Fuse Ampere Circuit
