Lexus LS500 - Engine Compartment Components View

387
6-3. Do-it-yourself maintenance
LS500h_OM_OM50F42U_(U)
6
Maintenance and care
Engine oil level dipstick (→P.388)
Power control unit coolant reservoir (→P.390)
Engine coolant reservoir (→P.390)
Engine oil filler cap (→P.389)
Brake fluid reservoir (→P.391)
Fuse boxes (→P.414)
Washer fluid tank (→P.392)
Engine coolant radiator (→P.391)
Power control unit coolant radiator (→P.391)
Electric cooling fan
Condenser (→P.391)
■ 12-volt battery
→P.393

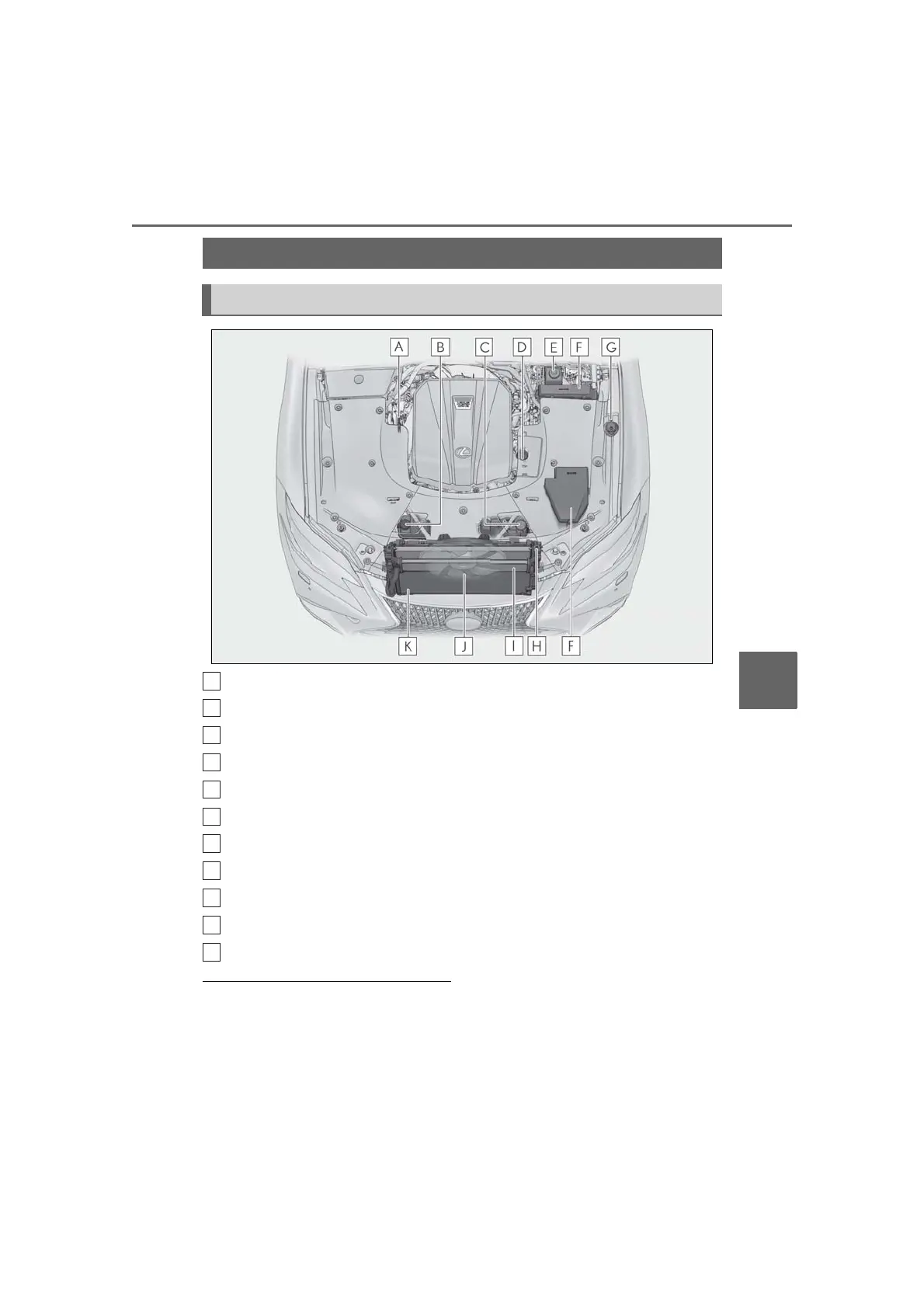

Engine compartment
Components
