3.2.2 RS 232 interface
Standards DIN 66020
Protocol acc. to VDI/VDE 3689
Transmission rate 19200 baud
Response delay default setting 10 ms
(parameter 180)
Address range non-addressable
Max. cable length 15 m
Interface connector 9 way Sub-D type,
socket on the instrument (female)
thread UNC4-40
Note: If on the controlling side an RS 232 interface in accordance with the
PC standard with a 9-pin Sub-D male connector is present, then a straight
through cable as shown in Fig. 3.4 may be used.
For further information please refer to the Operating Instructions 17200048.
Operation
17
8
7
6
5
4
3
2
1
9

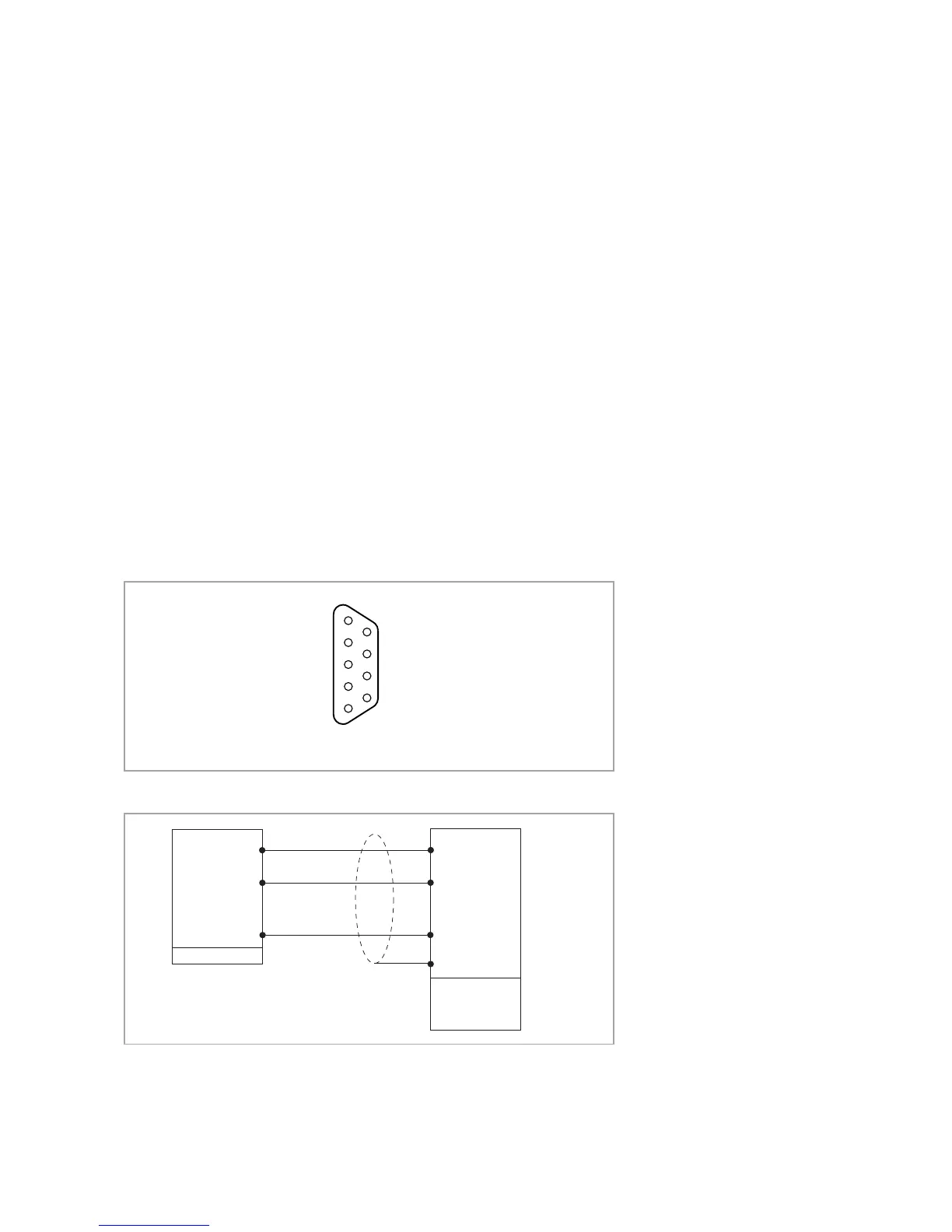

Fig. 3.3 Pin assignment for the socket at the frequency converter (female)
TxD
RxD
GND
(3)
(5)
(2)
TURBO.DRIVE
TxD
RxD
GND
TxD
RxD
GND
(3)
(5)
(2)
Fig. 3.4 Providing a RS 232 connection
Shield
9-pin IBM PC
RS 232
interface
