3.2.6 DeviceNet interface

See additional Operating Instructions 17200055.

3.2.7 Ethernet/IP interface

See additional Operating Instructions 17200056.

Operation

VALVE

HEATER

FAN

MAINS IN

FOREPUMP

X22

5 (GND)

(24VDC, 80mA)

2 (Start)

3 (Stop)

6 (24VDC)

1 (Remote)

(Optional relay 2)

(Optionsrelais 3*)

(Normal relay)

Output relay

TD 20

classic

with

25-way terminal strip

Note: Optional relay 1 and

error relay are not shown

* Set parameter 318 to 3

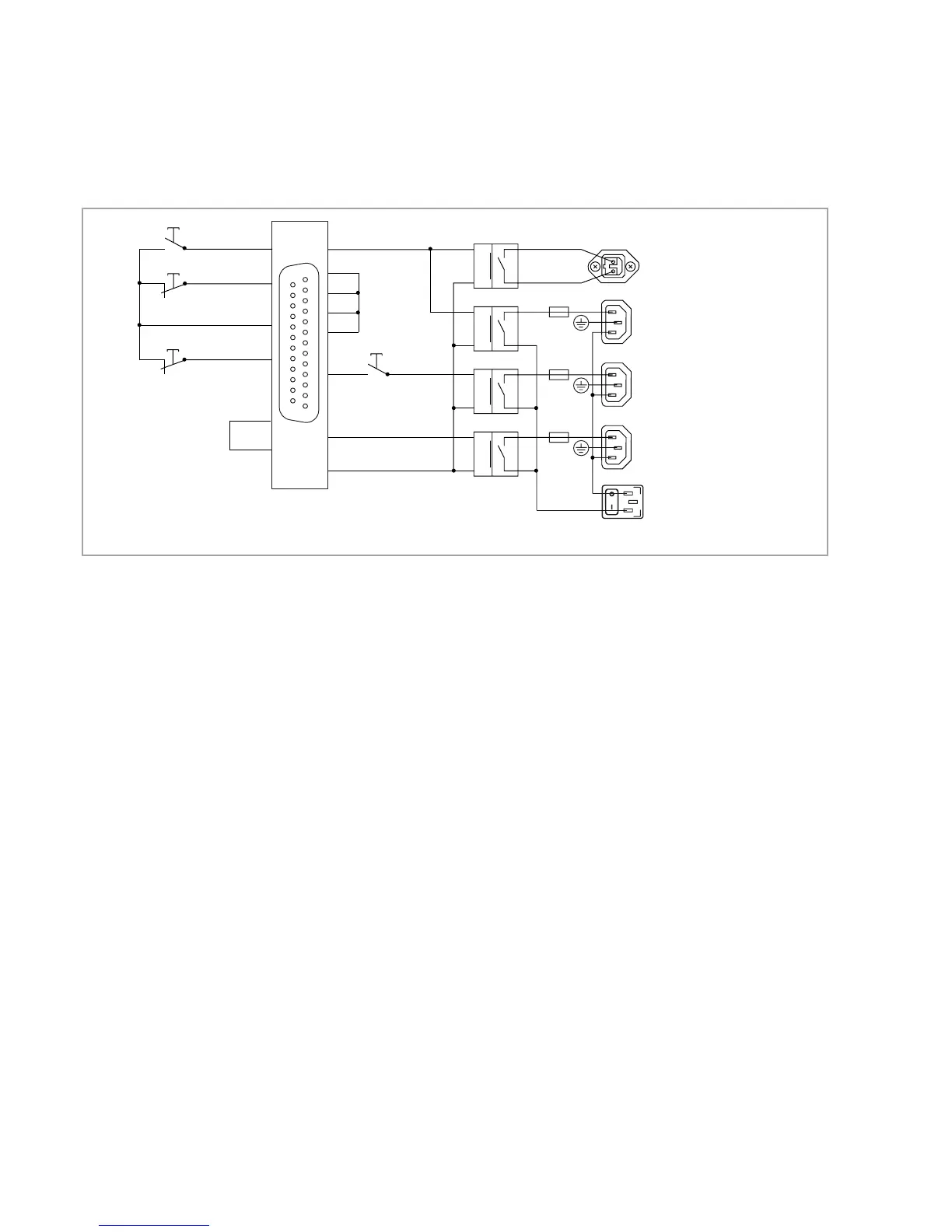

Fig. 3.7 Example for external connections compatible with the NT 20 (principle)
