LEYBOLD Turbo.Drive TD20 classic User Manual

GA05228_002_C0 - 11/2016 - © Leybold
Description
6
1.3 Technical data
Mains connection 100 to 240 V AC -15%/+10%,
50/60 Hz
Power consumption tolerance including options < 500 VA
Power consumption of the TURBOVAC < 400 VA
Power output (motor)
Nominal voltage 47 V
Motor current limitation
Acceleration (max. 10 min.) 5 A
Continuous operation 3.5 A
Frequency 0 to 835 Hz
TURBOVAC speed ratings
TURBOVAC 151 49,980 min
-1
TURBOVAC 361 45,000 min
-1
TURBOVAC 600 36,000 min
-1
TURBOVAC 1000 36,000 min
-1
TURBOVAC 1100 30,000 min
-1
Ambient temperature 0-45 °C
Storage temperature -25 °C...+70 °C
Relative air humidity 5 to 85 % (non-condensing)
Type of protection to EN 6059 IP 20
Electrical safety to EN 61010-1
Interference radiation to 61326-1 Class A
EMC to IEC 801-2 Severity 2
Dimensions 1/2 19“, 3HU
Weight 4 kg

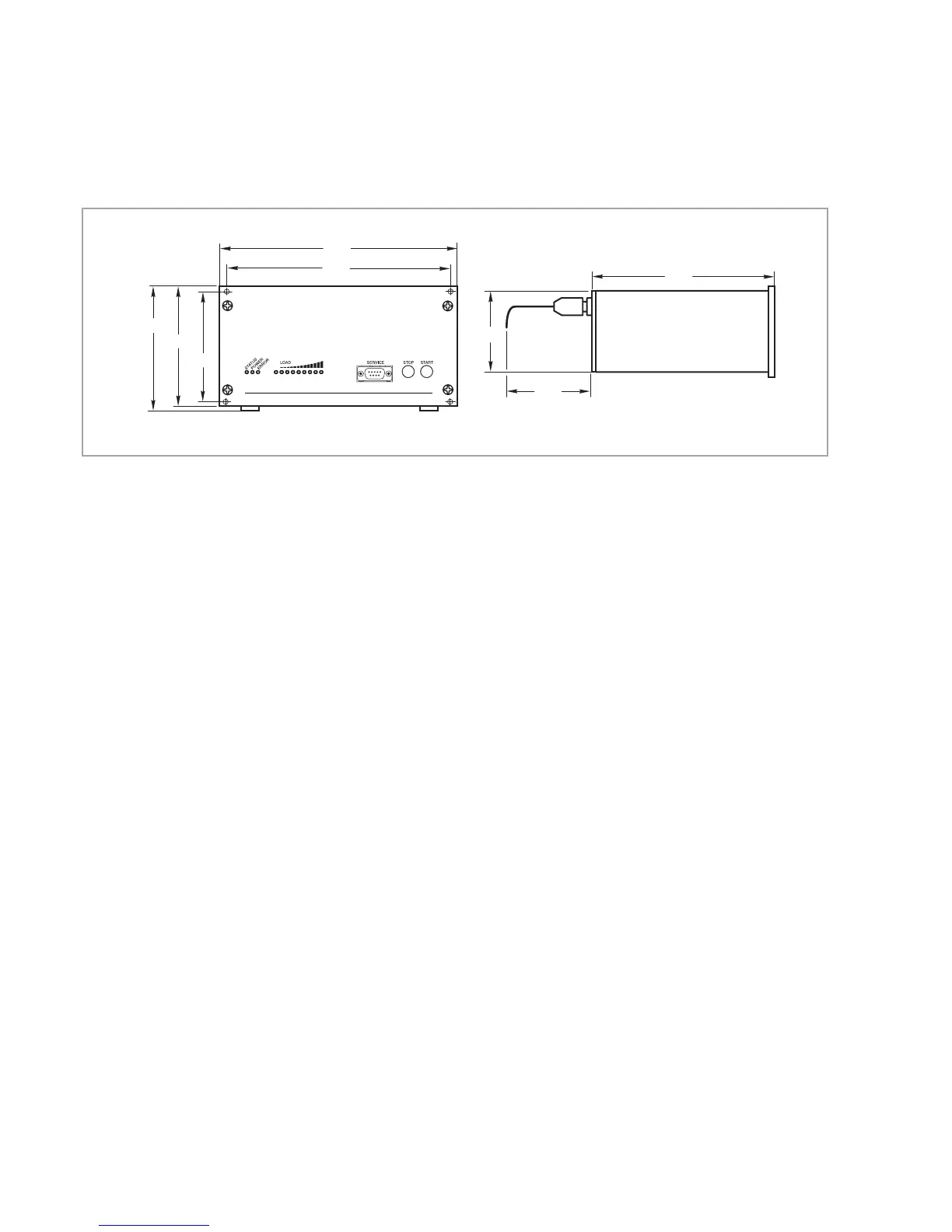

Fig. 1.2 Dimensional drawing for the Turbo.Drive TD20
classic
, dimensions in mm
107
315
196
198
213
128
122,4
135
Turbo.Drive TD20
classic
