GA05228_002_C0 - 11/2016 - © Leybold

Installation

2.3 Providing the connections

Insert and fasten the connection line to the motor of the TURBOVAC.

Connect the interface, see Section 3.2.

Connect the instrument using the ground bolt to the protective ground

system.

Connect the power line cord.

POWER

DRIVE

REMOTE

X22

INTER-

FACE

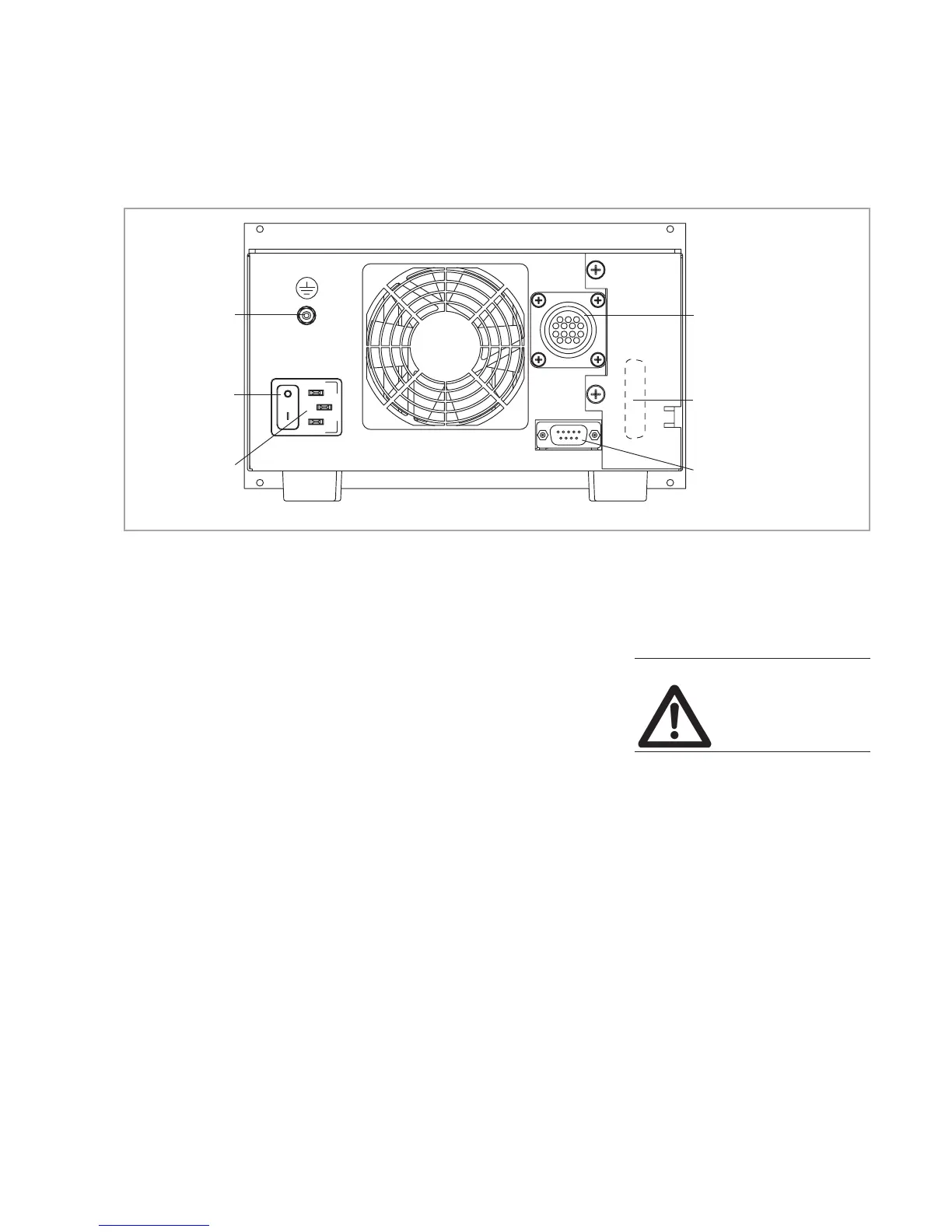

Fig. 2.1 Turbo.Drive TD20

classic

, rear panel

Connection of the

TURBOVAC

Optional interface

9-way PLC interface

Ground bolt

Power switch

Connection for

power line cord

Warning
