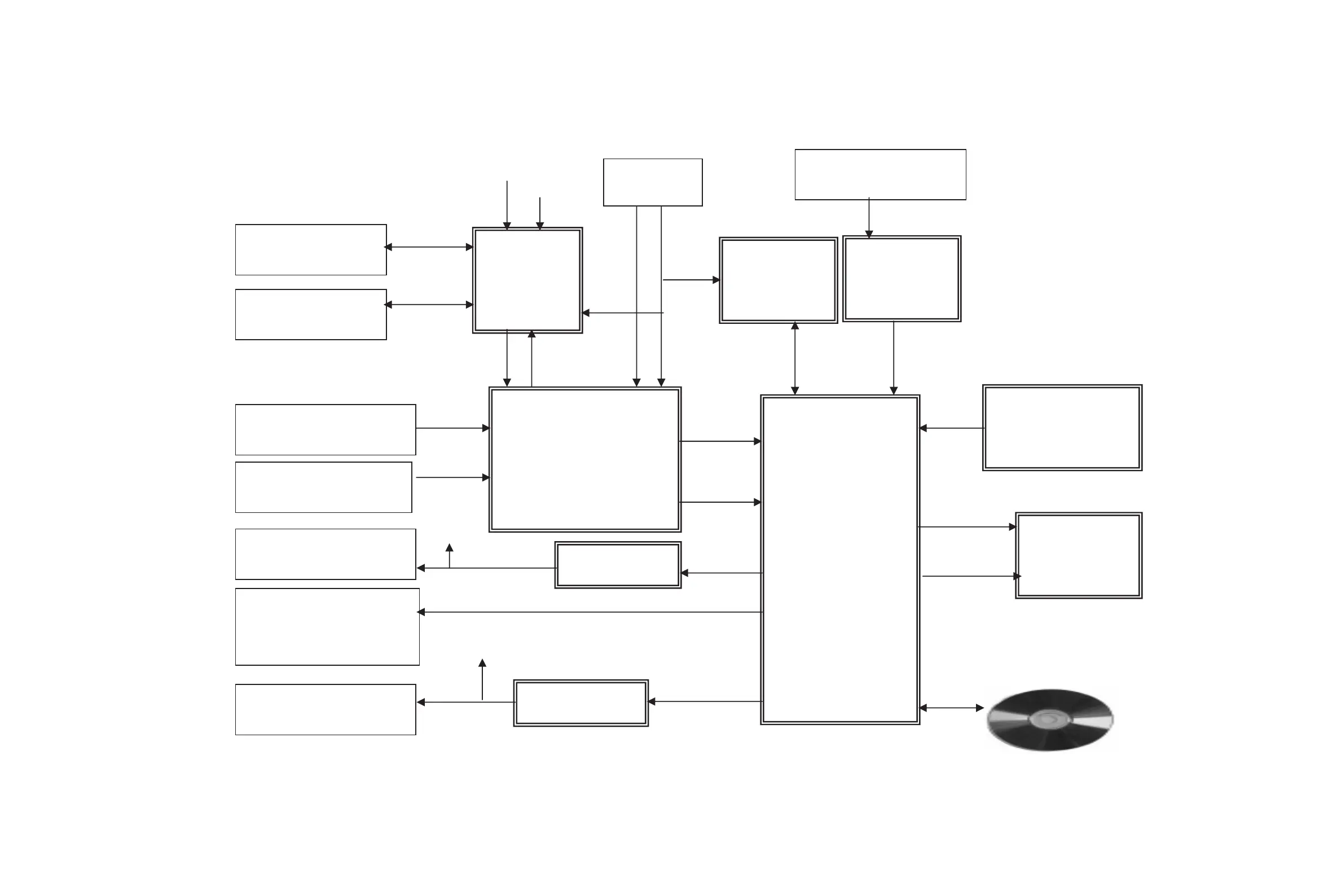

9. SCART BLOCK DIAGRAM(SCART MODEL
ONL
Y)
DMN-8603
MPEG
AV SWITCH
CANAL+
MM144
3
PHIL
IPS SAA7137
VIDEO DECODER
AUDIO ADC / MSP
DVD DRIVER
TUNER
SCART1
SCART2
AUDIO DAC
CS43
51
A/V 1
A/V 2
SIF
T.
Video
SPI
A/V 3
A/V 4
Rear RCA
Front RCA
Rear RCA
SW A/V
D.Audio
ADC I2S
D.Audio
DAC I2S
D.Video
R-656
Coaxial OUT
Optical OUT
Rear RCA
T.
Audio
IEC60958 ( S/PDIF
)
CVBS
S-VIDEO
Component
Vi
deo 6dB Amp
BH7868FS
DV (1394)
PHY
TSB41AB1
TPA/
TPB +/-
Audio L/R
CVBS
Audio L/R
CVBS
CVBS
S-VIDEO
Com
ponent
ATAPI I/
F
MEMORY
CARD SL
OT
MICOM
MM101
DF
HDMI
SI
L9030
D.Video
16
bit & clk
D.Audio
IEC60958
3-36
3-37
43
45
Table of Contents
Section 1 Summary
3
Table of Contents
3
Product Safety Servicing Guidelines for Video Products
4
Servicing Precautions
5
General Servicing Precautions
5
Insulation Checking Prodedure
5
Electrostatically Sensitive Devices
5
Service Information for Eeprom IC Setting
6
Flash Upgrade
7
Loader Upgrade
9
Specifications
11
Section 2 Cabinet & Main Chassis
12
Cabinet and Main Frame Section
13
Exploded Views
13
Deck Mechanism Section(RS-01A)
14
Packing Accessory Section
15
Section 3 Electrical
16
Electrical Troubleshooting Guide
17
Power Supply on Smps Board
17
Vdr Part
17
Power Supply on I/O Board
19
Disc Not Recognized
26
System Circuit Part
26
When Playing Disc, no Audio Output
27
Optical / Digital Output
28
Tuner Audio Output
29
External Audio Input
30
Rgb / Component Video Signal When Play Disc
31
Composite / S-Video Signal When Play Disc
32
Tv, External Input Video Signal
33
DV(Ieee 1394) Input (Video/Audio) Signal
34
Block Diagrams
36
Power Block Diagram
36
Main Power Block Diagram
37
Video in Block Diagram
38
Video out Block Diagram
39
Audio in Block Diagram
40
Audio out Block Diagram
41
System Main Block Diagram
42
I/O Μ-COM BLOCK DIAGRAM
43
Scart Block Diagram(Scart Model Only)
44
Hdmi Block Diagram (Hdmi Model Only)
45
Memory Block Diagram (Memory Slot Model Only)
46
Circuit Diagrams
47
Main Power Circuit Diagram
48
Mpeg Circuit Diagram
49
A.latch/Flash/Ddr Circuit Diagram
50
Loader/DV Circuit Diagram
51
I/O Μ-COM CIRCUIT DIAGRAM
52
Tuner/Mpx/Adc/Dac/Jack Circuit Diagram
53
Decoder Circuit Diagram
54
Hdmi Circuit Diagram
55
Timer Circuit Diagram
56
Key Circuit Diagram
57
Waveforms
58
Circuit Voltage Chart
59
Main P.C.board(Top Side)
62
Printed Circuit Diagrams
62
Main P.C.board(Bottom Side)
63
Hdmi P.C.board(Optional Parts)
64
I/O P.C.board
64
Key P.C.board
65
Timer P.C.board
65
Power P.C.board
66
Section 4 Rs-01A Loader Part
68
Electrical Troubleshooting Guide
69
Recording Layer
83
The Difference of DVD-R/Rw, DVD+R/Rw Discs and DVD-Rom
83
Disc Materials
84
Disc Specification
84
Organization of the Inner Drive Area, Outer Drive Area, Lead-In Zone and Lead-Out Zone
88
Alpc Measurement System
91
Alpc Program
91
How to Use Test Tool
91
Execute Alpc Program
92
Optical Power Setting
94
Confirm Optical Power Setting Parameter
95
Optical Power Setting Parameter Range
96
Attachment. Optical Power Measurement
97
Block Diagram of the Pick-Up(Lpc-812R)
98
Internal Structure of the Pick-Up
98
Pick up Pin Assignment
99
Signal Detection of the P/U
100
Alpc (Automatic Laser Power Control) Circuit
101
Description of Circuit
101
Focus/Tracking/Sled Servo Circuit
102
Spindle Servo Circuit
104
Lic121 (An22113A) : Fep(Rf) Analog Signal Processor
105
Major IC Internal Block Diagram
105
Ic301 (Bd7956Fs) : CD-Rom/DVD-Rom 7Ch Power Driver
108
Circuit Diagrams
110
Dsp Circuit Diagram
110
Rf Circuit Diagram
111
Drive Circuit Diagram
112
Circuit Voltage Chart
113
Main P.C.board(Top View)
114
Printed Circuit Diagrams
114
Main P.C.board(Bottom View)
115
