4. OPTICAL POWER SETTING
<Test for checking DVD LD and CD LD>
When you change the Travers ass°Øy(including pick-up) or loader PCB, you must do the laser power setting to match
pick-up and loader PCB.

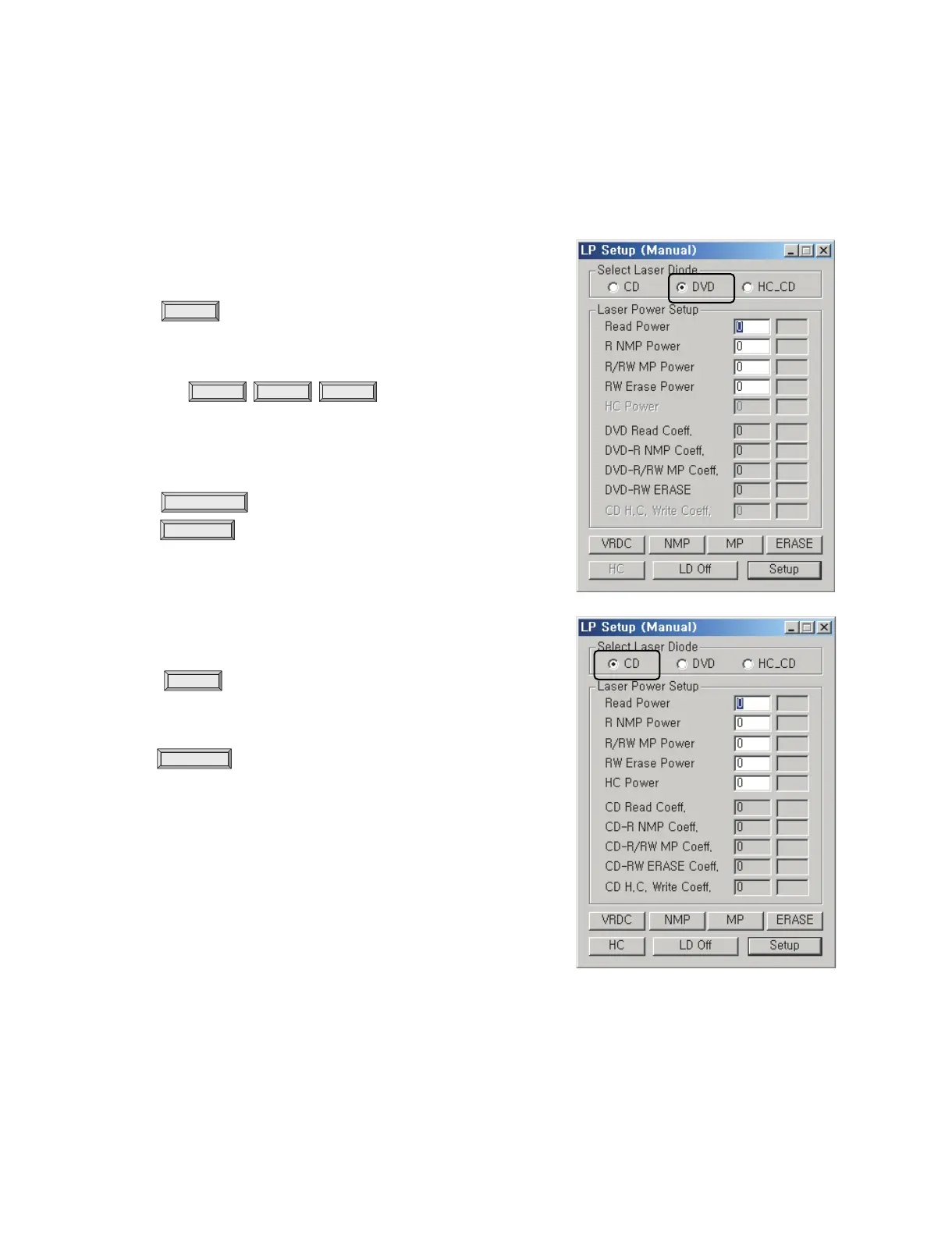

1) DVD LD power setting
• Select the DVD in the ‘Select Laser Diode’
• Press (Read Power On, Strong Read light)
•Measure optical read Power.
•Write read power value.
• In case of ,
you are able to measure the power through same procedure.
(caution) Don’t watch light directly.
• When you finish optical power measurement,
press button(LD Off).
•Press button.(save to ERPROM)
2) CD LD Power Setting
• Select the CD in the ‘Select Laser Diode’
• Press .
•Measure optical read Power.
•Write Read Power value.
•Press button(save to ERPROM)
*** In case of CD power setting of RS-01A, loader don’t need to set up
write power.
Although NMP, MP,Erase and HC power is N.G when you press setup,
please ignore the N.G message.
Because of RS-01A only support reading function about CD-R/RW.
* Look at reference sheet to test Optical Power.
**Power value is ß— unit. Value is read power X 100.
