9

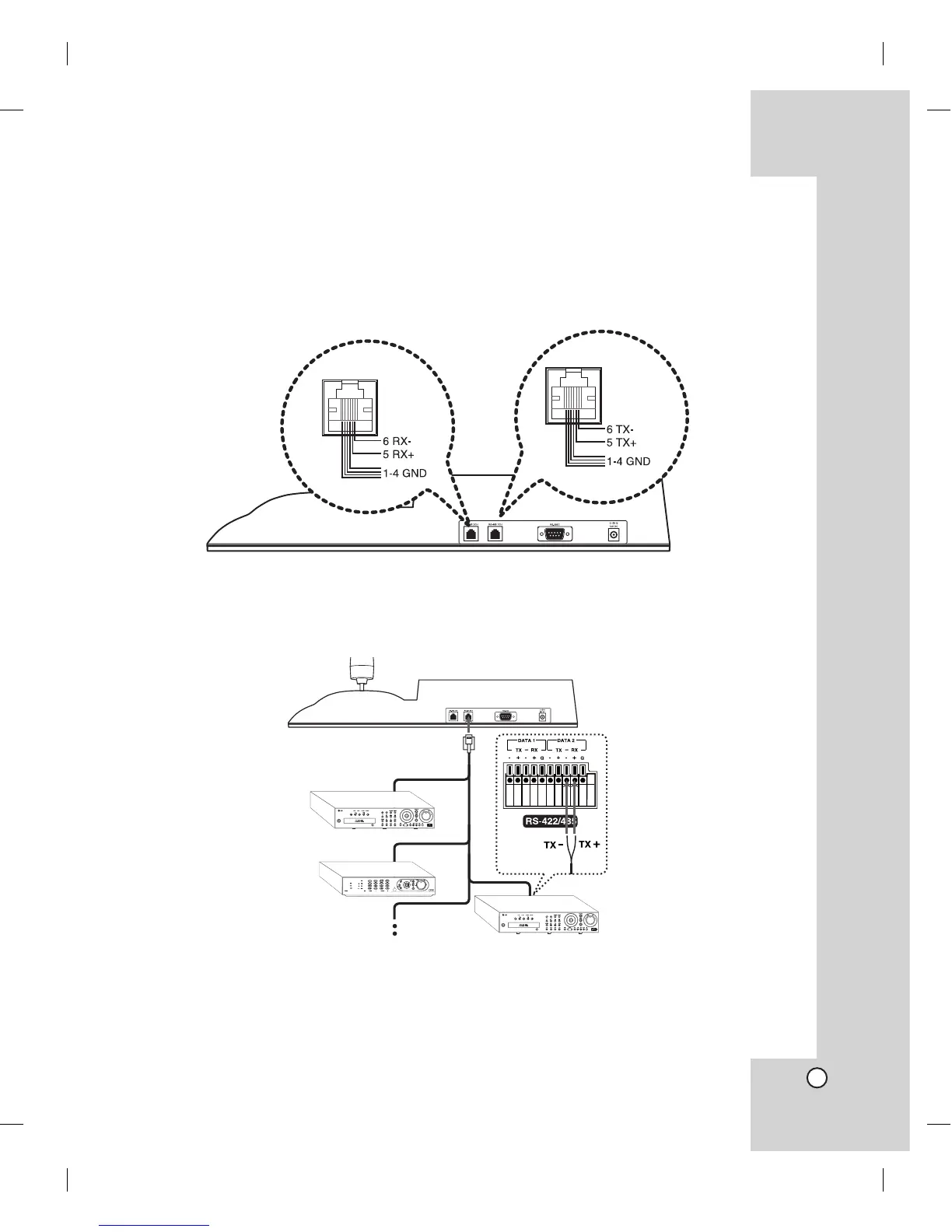

RS-485 Connection
Use this port to connect PTZ cameras or LG DVRs. Use the cable that is described below for RS-485 site
communication.
Shielded, twisted pair cable
Low impedance
Wire gauge size is thicker than AWG #22 (0.33 mm
2
).
Connecting the LG DVR
You can connect up to 16 LG DVRs.
Connect the LG DVR to the RS-485 1 CH terminal of the LKD1000 as shown below.
Notes:
When connecting lines, connect the TX - of the LKD1000 controller to RX - (DATA2) of the LG DVR and TX
+ of the LKD1000 controller to RX + (DATA2) of the LG DVR correctly.
Set the appropriate DVR system ID to operate via the LKD1000 Controller when using the multiple LG
DVR.
DC 12 V adaptor
(Not supplied).
LKD1000
Controller 1
(MASTER)
LKD1000
Controller 2
(SLAVER)
LKD1000
Controller 3
(SLAVER)
DVR 1
DVR 2
DVR 3
LKD1000
Controller 4
(SLAVER)
Camera 1
Camera 2
Up to 16 controllers.
Up to 256 cameras.
Up to
16 DVRs.
To RS-485 2 CH
terminal.
To RS-485 1 CH
terminal.
RJ11 Cable
(Supplied)
