HOOKUP AND SETTINGS
Precautions
The connections should be made by qualified service personnel or system installers in accordance with all
local codes.
DC 12 V can be used.

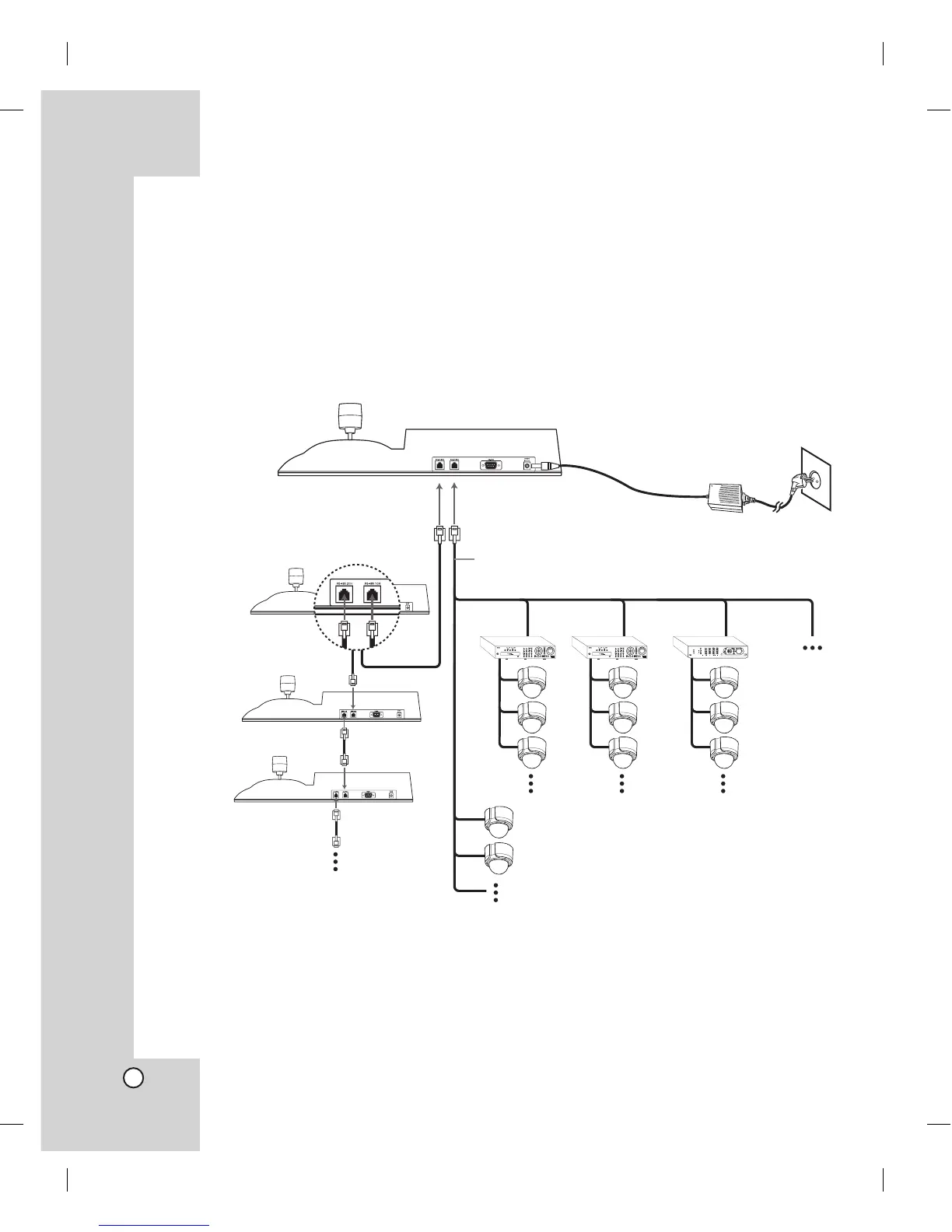

Basic Connection Overview
Notes:
Please refer to the LG DVR and Camera manuals as necessary for additional connection information.
Set the DVR ID and Camera ID differently for each DVR and Camera if many DVRs or cameras are con
-
nected to the LKD1000 controller.
DC 12 V adaptor
(Not supplied).
LKD1000
Controller 1
(MASTER)
LKD1000
Controller 2
(SLAVER)
LKD1000
Controller 3
(SLAVER)
DVR 1
DVR 2
DVR 3
LKD1000
Controller 4
(SLAVER)
Camera 1
Camera 2
Up to 16 controllers.
Up to 256 cameras.
Up to
16 DVRs.
To RS-485 2 CH
terminal.
To RS-485 1 CH
terminal.
RJ11 Cable
(Supplied)
