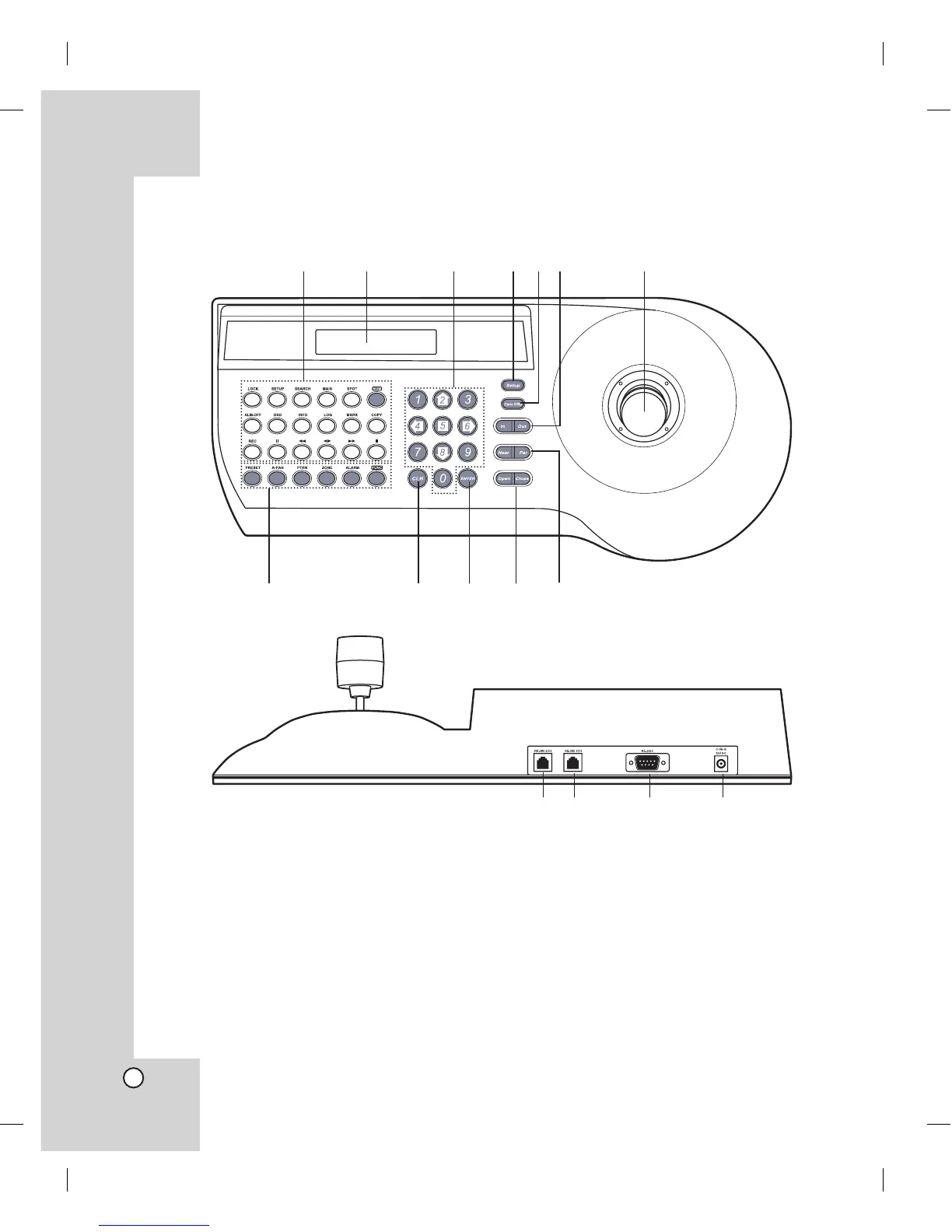

Identification of the Controller
 mn o p
 a b c def g
 h i j k l
1 LG DVR Control Buttons
For details, see page 15.
2 Display Window
Displays function menus, numeric input, and
system status.
3 Numeric (0 to 9) and Arrow (left/right/up/down)
Buttons
Selects an option in the menu.
These buttons are used for numeric input of pre-
set numbers or for executing each parameter on
the Controller’s menu.
4Setup Button
Opens controller’s main Setup menu in the dis-
play window.
5 Cam OSD Button
Opens or closes the Camera’s Setup menu on
the screen.
6 In/Out Buttons
These buttons are used to zoom the camera
image In (TELE) and Out (WIDE).
