COMPONENT ACCESS

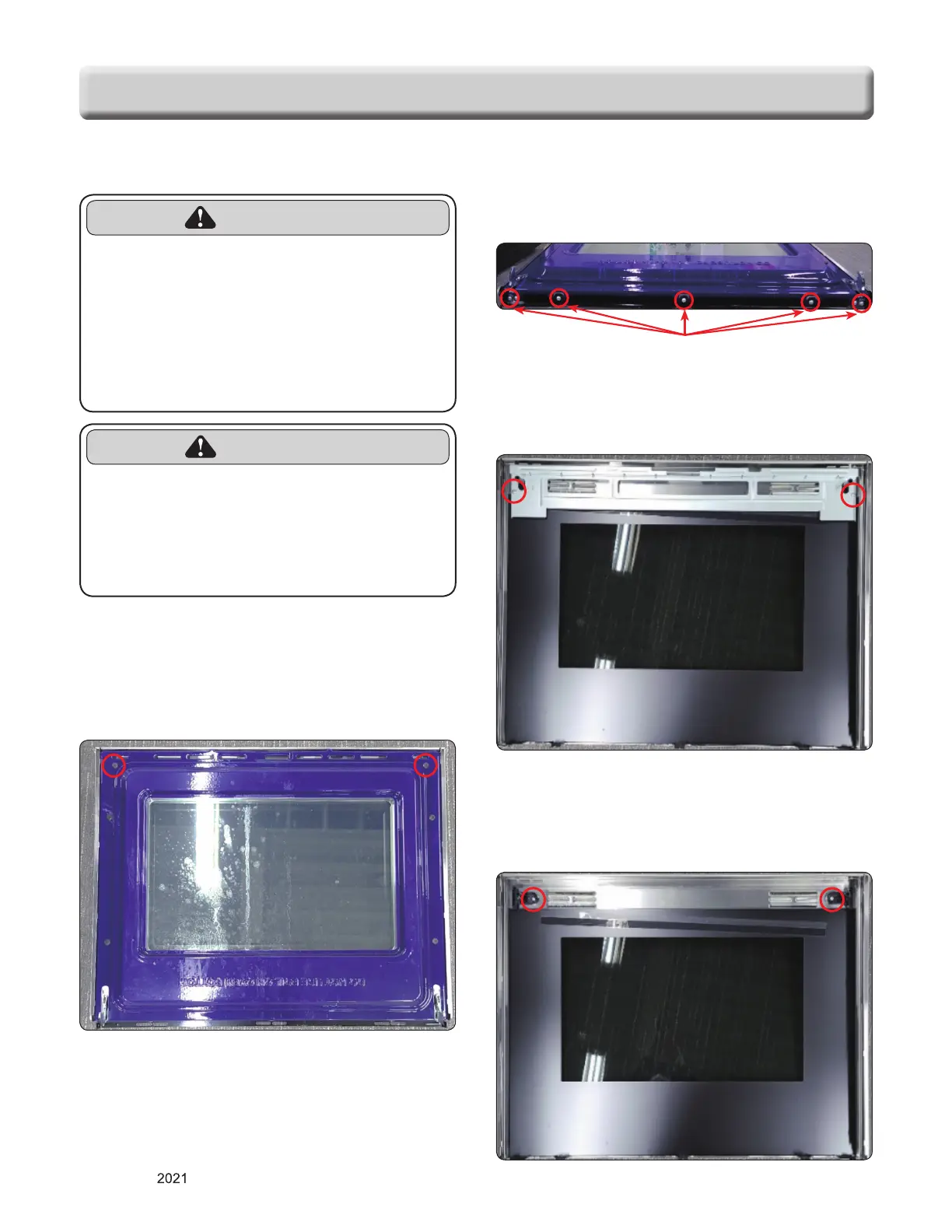

REMOVING THE OVEN DOOR HANDLE & GLASS
1. Remove the oven door from the range (see
"Removing oven door" Page 3-16).
2. Place the oven door on a padded work surface
with the front glass facing down.
3. Remove the 2 top door screws.
4. Remove the three bottom screws from the door
liner.
5 screws
5. Lift the liner assembly off the front glass and set it
aside.
6. To remove the Air guide, remove 2 screws.
7.
To remove the door handle & trim
- Remove the 2 door handle screws and lift the
door handle off door trim and slide up the door
trim.
WARNING
• DISCONNECT power supply cord
from the outlet before servicing.
• Replace all panels and parts before
operating.
•
RECONNECT all grounding devices.
- Failure to do so can result in severe personal
injury, death or electrical shock.
CAUTION
• Be careful when you work on the
gas range handling the sheet metal
part.
- Sharp edge may be present and you can cut
yourself.
