COMPONENT ACCESS
8. To remove a hinge hanger assembly:
a) Place the door liner assembly on a padded
work surface with the hinge hangers over the
edge.
b) Remove the 4 top door screws.
c) Lift the hinge hanger out of the door liner slot.

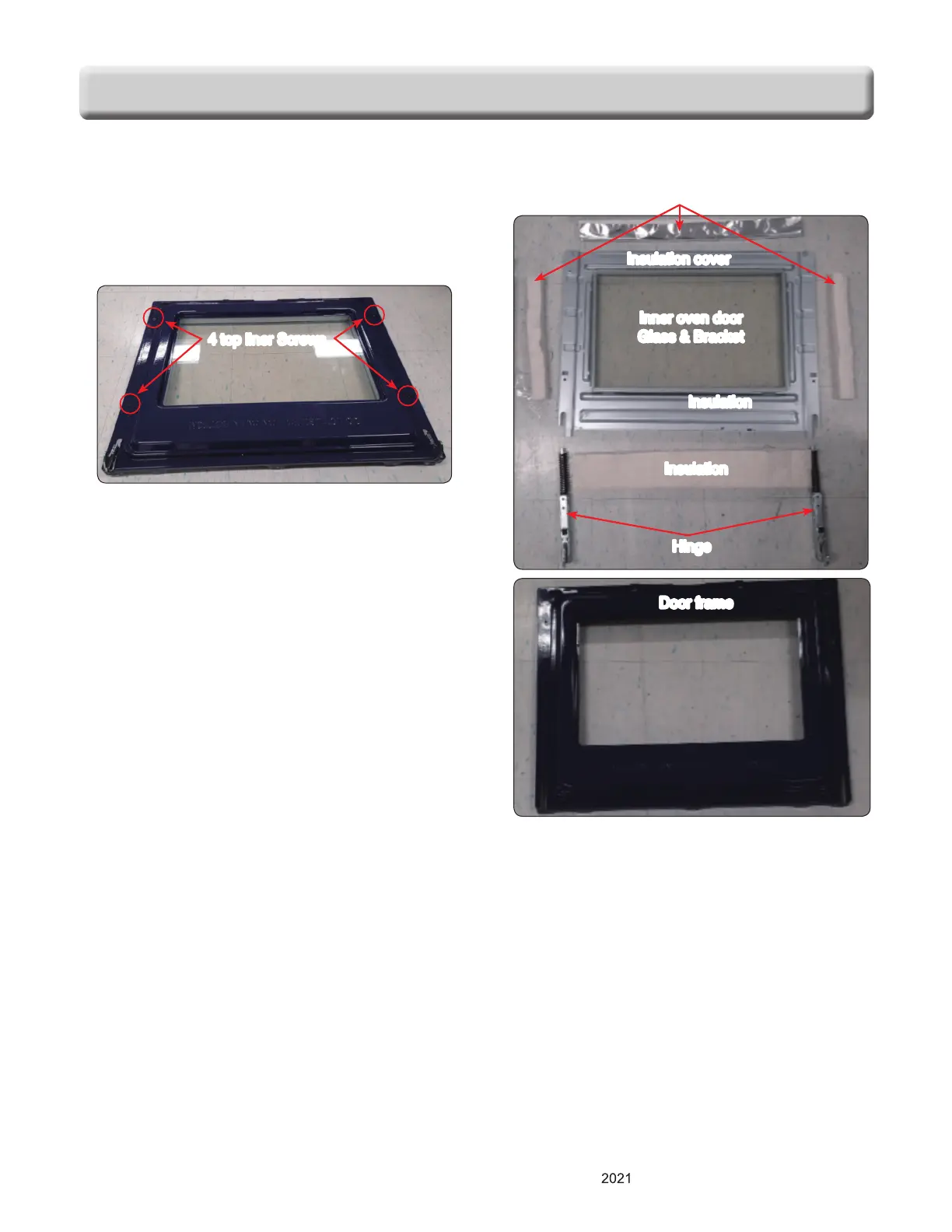

4 top liner Screws
9. Lift the insulation cover, inner oven door glass
and bracket assembly out of the door liner.
Door frame
Insulation
Insulation
Insulation
Hinge
Insulation cover
Inner oven door
Glass & Bracket
