COMPONENT ACCESS
REMOVING A SIDE PANEL

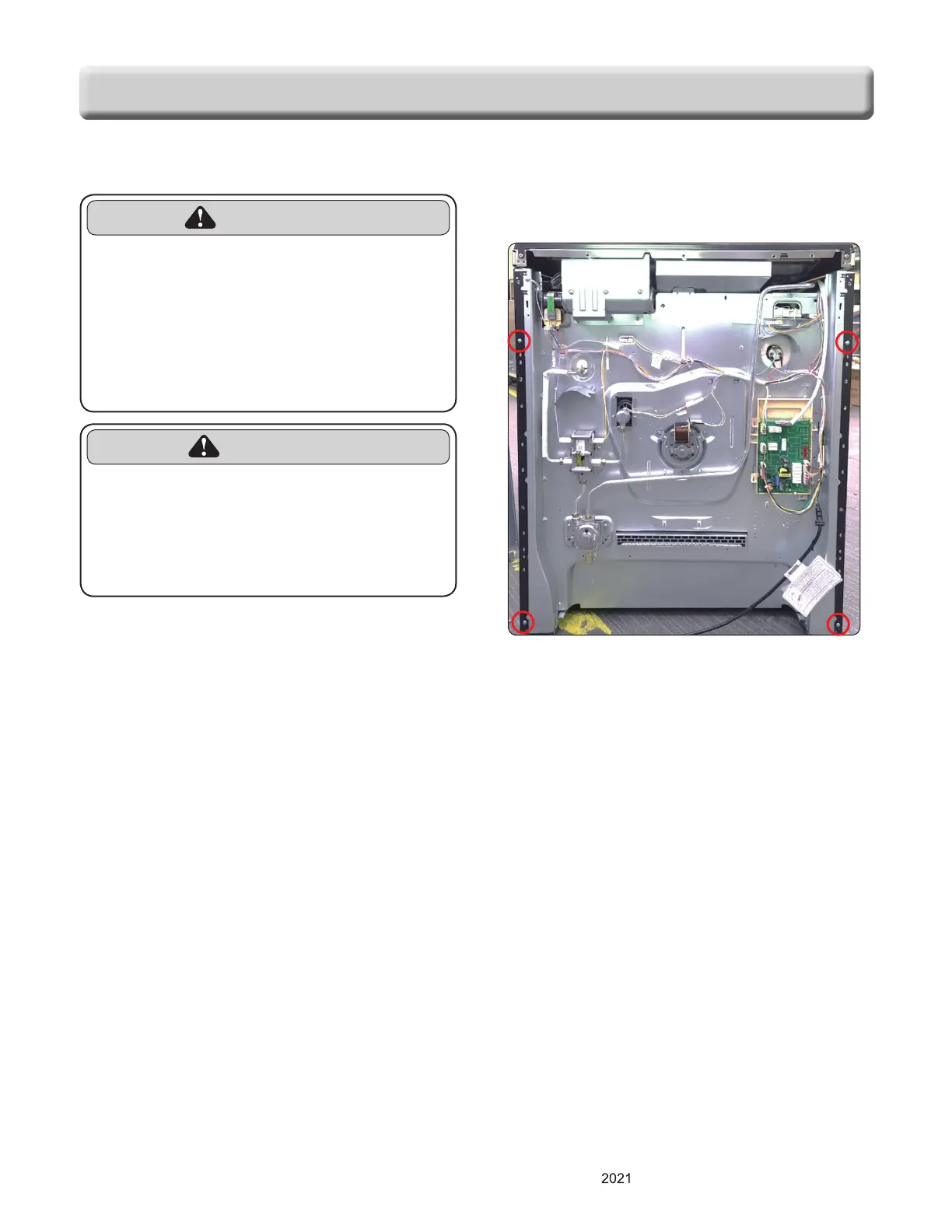

7. Remove the 4 screws from the left or right side
panel.
1. Turn off the electrical supply and gas supply going
to the range.
2. Remove the oven door from the range
(see "Removing the oven door" Page 3-16).
3. Pull the range away from the wall so you can
access the back of the unit.
4. Remove the rear panel (see "Removing the back
cover" Page 3-2).
5. Raise the cooktop plate (see "Removing the
cooktop plate" Page 3-4).
6. Remove the controller panel (see "Removing the
controller panel" Page 3-5).
WARNING
• DISCONNECT power supply cord
from the outlet before servicing.
• Replace all panels and parts before
operating.
•
RECONNECT all grounding devices.
- Failure to do so can result in severe personal
injury, death or electrical shock.
CAUTION
• Be careful when you work on the
gas range handling the sheet metal
part.
- Sharp edge may be present and you can cut
yourself.
