LG LSGL6337F - Gas System Component Removal

3-22
Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes
COMPONENT ACCESS

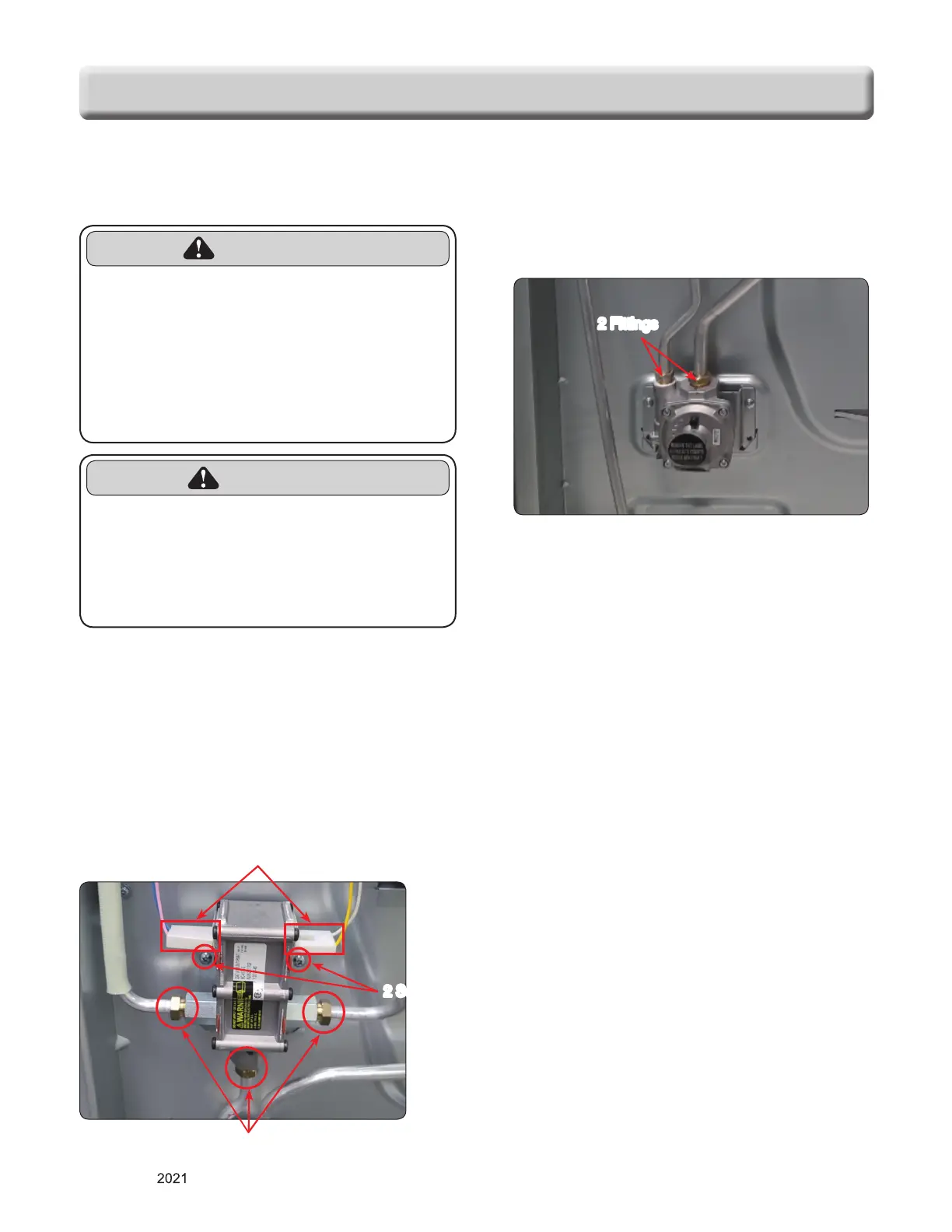

REMOVE THE OVEN VALVE (SAFETY VALVE) &
GAS REGULATOR
4. To remove the gas regulator:
a) Remove the 2 fittings and a gas supplier fitting.
2 Fittings
WARNING
• DISCONNECT power supply cord
from the outlet before servicing.
• Replace all panels and parts before
operating.
•
RECONNECT all grounding devices.
- Failure to do so can result in severe personal
injury, death or electrical shock.
CAUTION
• Be careful when you work on the
gas range handling the sheet metal
part.
- Sharp edge may be present and you can cut
yourself.
1. Turn off the electrical supply and gas supply going
to the range.
2. Remove the back cover (see "Removing the back
cover" Page 3-2).
3. To remove the oven valve:
a) Remove the 3 fittings.
b) Remove the 3 connectors.
c) Remove the 2 screws and than lift the oven
valve.
3 Connectors
2 Screws
3 Fittings
