MULTI Standard
8. Installation
18
Indoor Unit
8.2 Connection of pipes and cables
8.2.1 Preparing work for installation

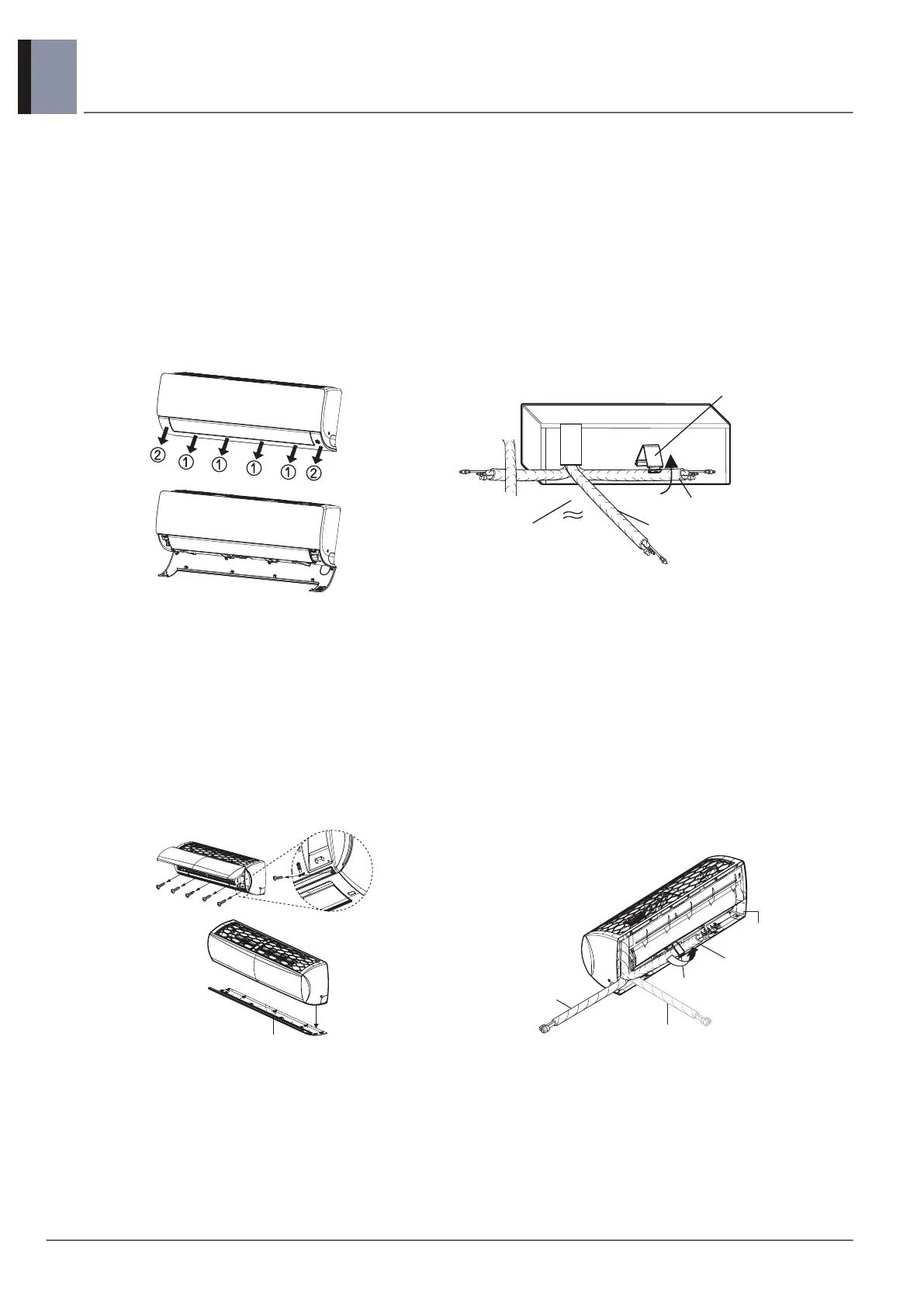

■ SJ/SK chassis
1. Pull the cover at the bottom of the indoor unit. Pull the cover ①→②.
2. Remove the chassis cover from the unit.
3. Pull back the tubing holder.
4. Remove pipe port cover and positioning the tubing.
■ SV chassis
1. Open the panel of the indoor unit.
2. Remove the chassis cover from the unit by loosing 5 screws.
3. Pull back the tubing holder.
4. Remove pipe port cover and position the piping.
* The feature can be changed according to type of model.
* According to product type, model line up, sales region..etc, applicability of each chassis could be different.
* The feature can be changed according to type of model.
* According to product type, model line up, sales region..etc, applicability of each chassis could be different.
Right
Indoor unit back side view
Tubing holder
Downwards
Left
Backwards
ೈ The feature can be changed according to type
of model.
Chassis Cover
Right
Back side view
Tubing holder
Backwards
Left
Pipe Port
