LG MULTI F

Wiring Diagram

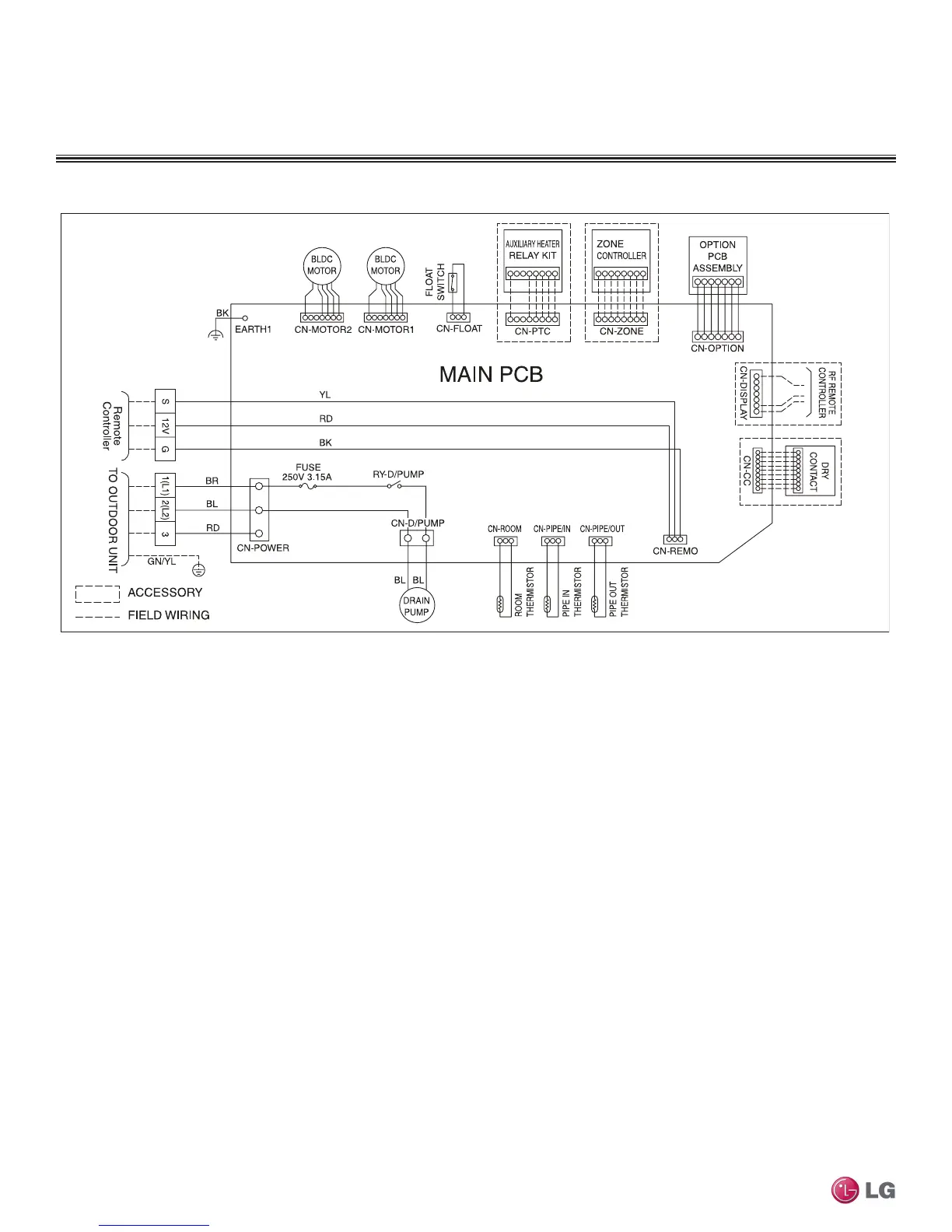

Figure 128:Multi F Ceiling-Concealed Duct (Low Static) LMDN096HV, LMDN126HV, and LMDN186HV Indoor Units Wiring Diagram.
DUCT (LOW STATIC) INDOOR UNITS
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
100 | DUCT (LOW STATIC)
Multi F and Multi F MAX Indoor Unit Engineering Manual
