Dimensions
STANDARD WALL-MOUNTED INDOOR UNITS

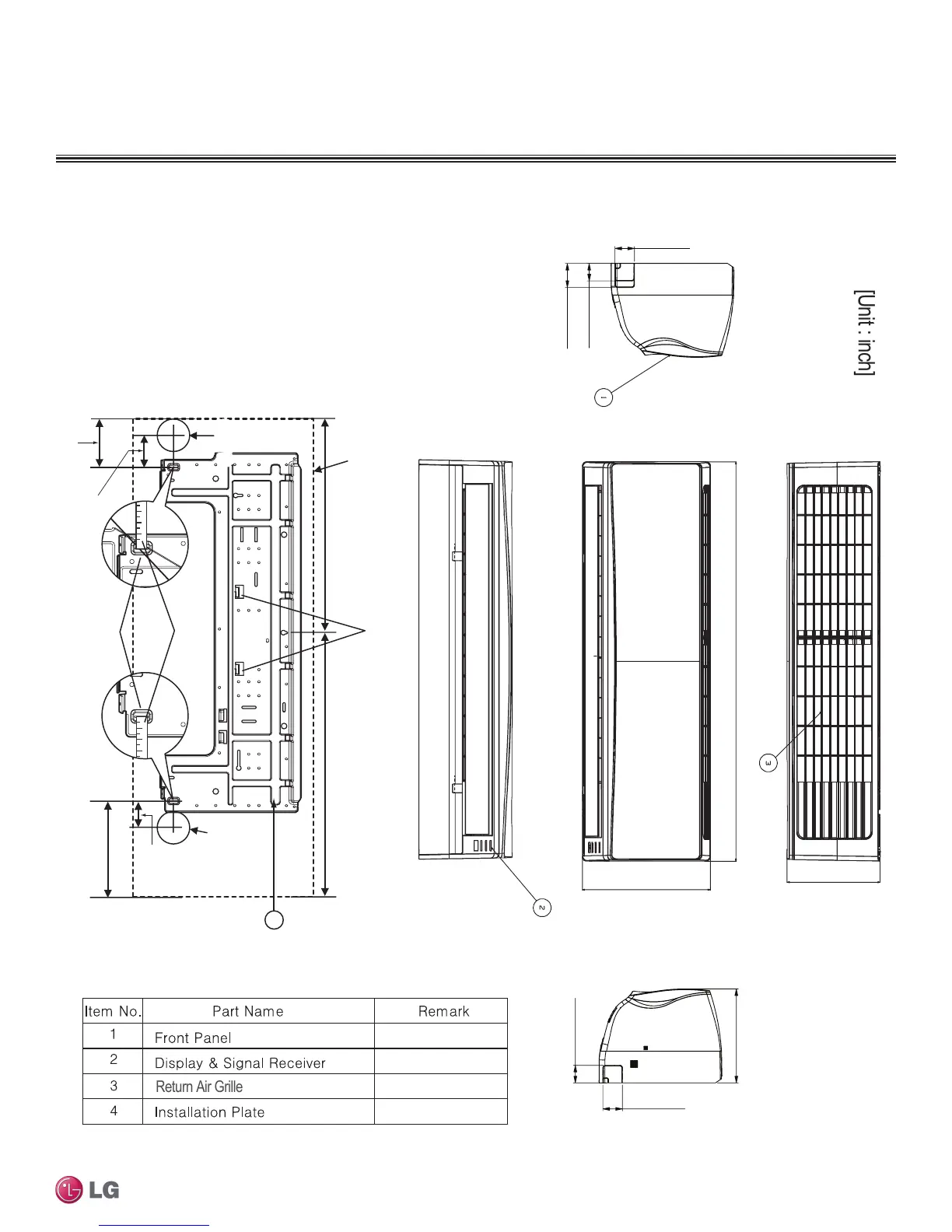

Figure 74: LSN180HSV4 Dimensions.
40-9/16
12-13/16
9-13/16
Ø2-9/16
Right rear piping
Left rear piping
Measuring Tape
Measuring Tape
Hanger
Place a level on raised tab
Unit Outline
18-1/8
22-3/8
8-1/8
4-1/8
2-11/16
2-3/16
Ø2-9/16
4
9-13/16
2-1/2 1-3/4
2-1/32
2-1/32
1-3/4
[Unit : inch]
Return Air Grille
