31
INSTALLATION
ENGLISH

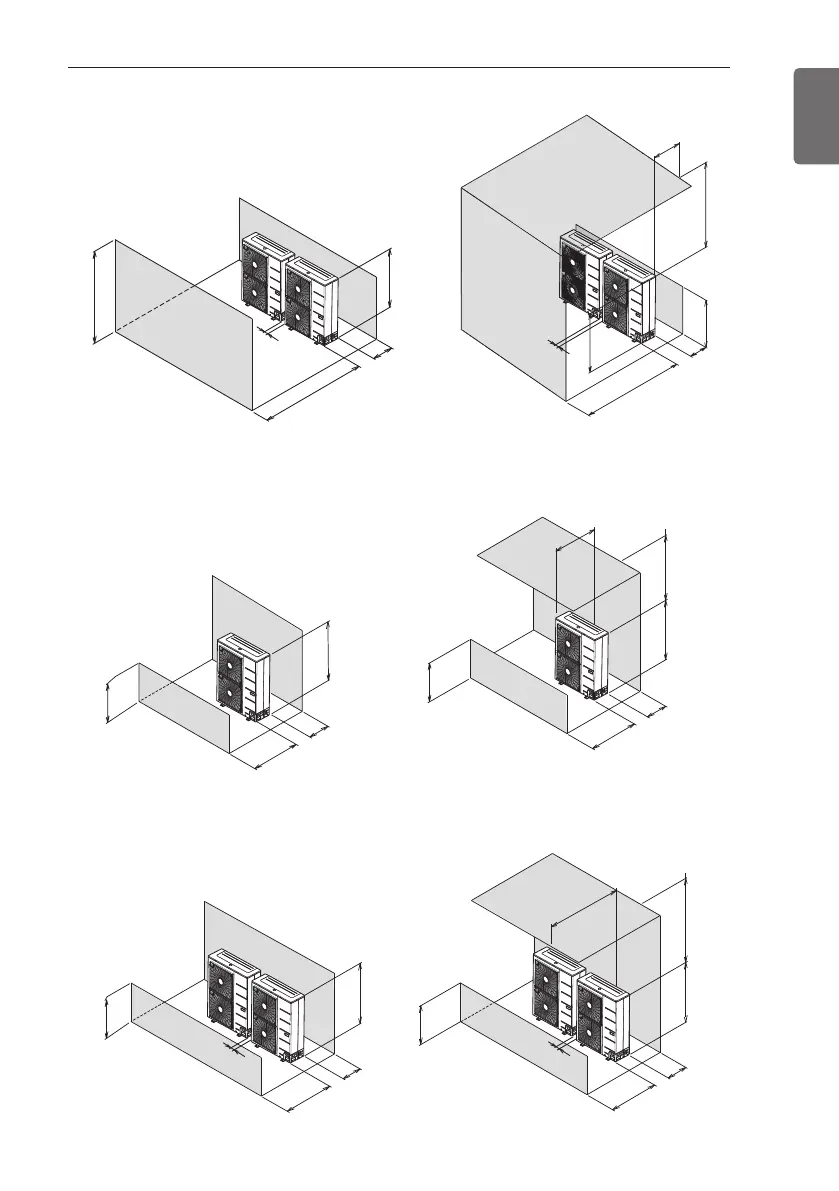

Collective installation
Ú Obstacle height of discharge side is lower than the unit
Stand alone installation
Collective installation
L > H L > H
L
H
300 or
more
1000 or
more
500 or less
more
1000 or
L
H
300 or
more
1250 or more
5
5
100 or more
100 or more
[Unit:mm]
L ≤ H L ≤ H
H
L
100 or
more
500 or
more
500 or less
more
1000 or
H
L
300 or
more
1000 or
more
L ≤ H L ≤ H
H
L
300 or
more
1500 or
more
500 or less
more
1000 or
H
L
300 or
more
1500 or
more
100 or more
100 or more
[Unit:mm]
