66
ACCESSORIES INSTALLATION
ENGLISH
How to Install Remote Temperature Sensor
[Parts of Remote Temperature Sensor]
Sensor Screw(to fix remote sensor)
Follow below procedures step 1 ~ step 5.
Step 1. Decide where the remote temperature sensor is Installed. Then, Determine the location
and height of the fixing screws in fig. 1 (Interval between the screws : 60 mm)
Step 2. Check if the power of the unit is turned off.
Step 3. Disassemble front panels and distinguish control box(Indoor) of the unit.
Step 4. Insert temperature sensor into PCB(CN_ROOM) and fix the sensor firmly in fig. 2.
Step 5. The Connection wire does not matter if you change the color of the wire because of
nonpolar.
Remote Temperature Sensor
Remote temperature sensor can be installed any place a user wants to detect the temperature.
• The function is not available for some products.

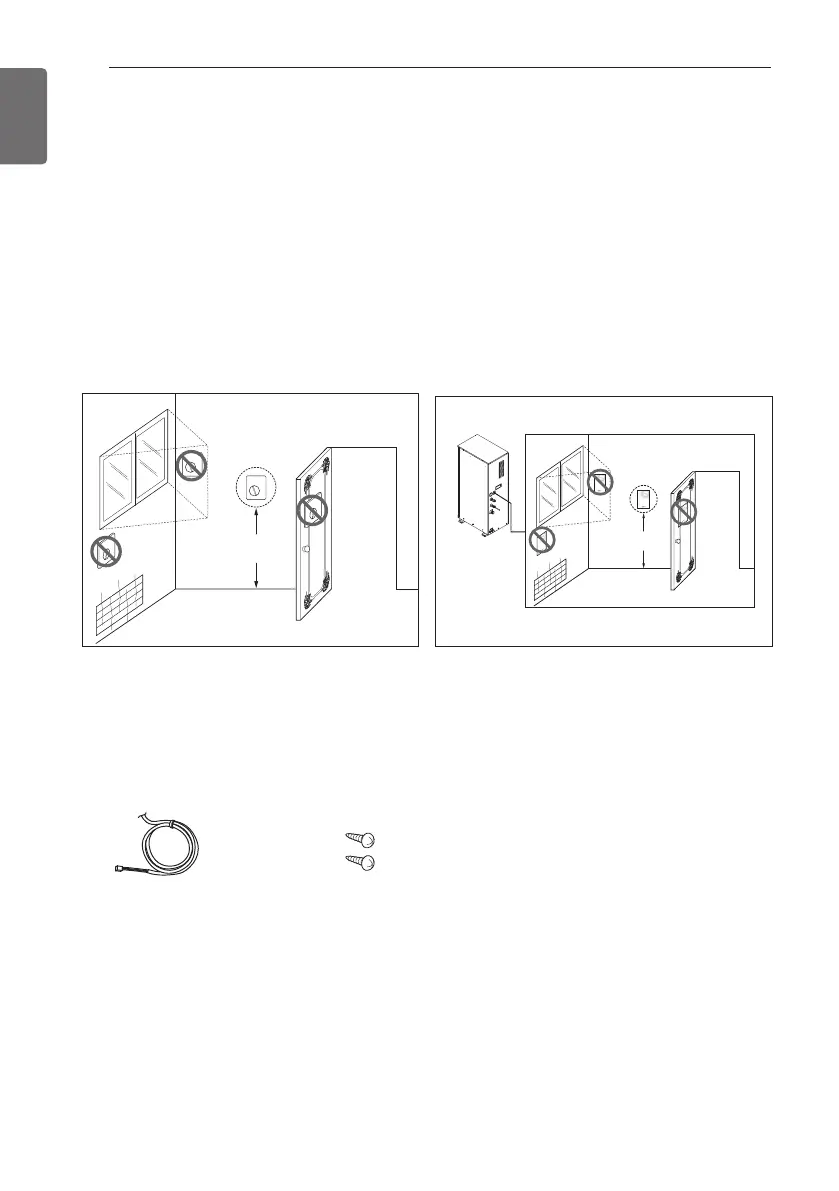

Installation condition
Role and constraint while installation of remote air temperature sensor is very similar to that of
thermostat.
• Distance between the unit and the remote air temperature sensor should be less than 15 m
due to length of the connection cable of remote air temperature sensor.
• For other constraints, please refer to previous page where constraints about thermostat is
described.
5 ft
(1.5 m)
Direct
Sun ray contact area
no
no
no
yes
5 ft
(1.5 m)
Direct
Sun ray contact area
no
no
no
yes
Connection cable
(less than 15 m)
Thermostat Remote Air Temperature Sensor
To Next Page
