35
INSTALLATION OF INDOOR UNIT
ENGLISH
INSTALLATION OF INDOOR UNIT
Electrical Wiring
Two kind of cables should be connected to the outdoor unit : One is ‘Power cable’, the other one
is ‘Connecting cable’. Power cable is a cable which is used to supply external electricity to the
outdoor unit. This cable is generally connected between external power source (such as main
electric power distribution panel of user’s house) and the outdoor unit.
Procedure for wiring to the outdoor unit is four steps. Before starting wiring, check if wire
specification is suitable and read following directions and cautions VERY carefully.

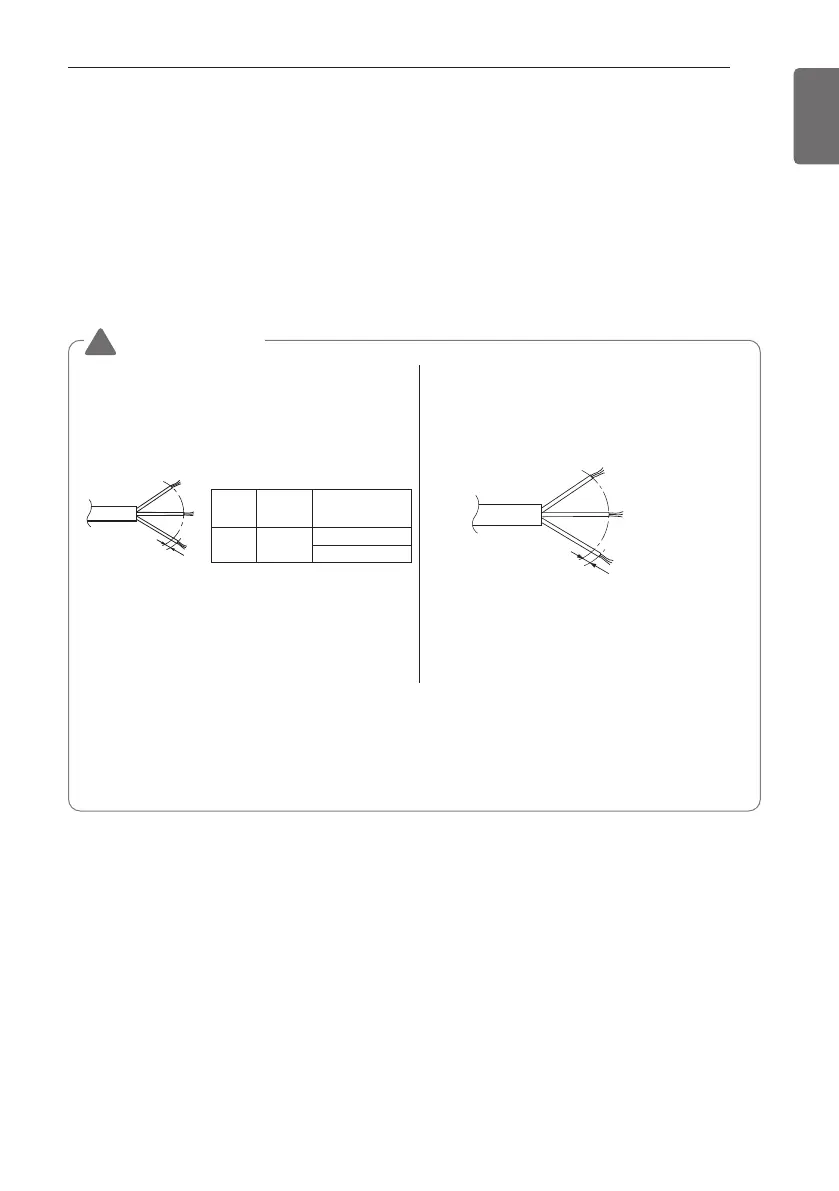

The power cord connected to the outdoor
unit should be complied with IEC 60245 or
HD 22.4 S4 (This equipment shall be
provided with a cord set complying with the
national regulation.)
The connecting cable connected to the
outdoor unit should be complied with
IEC 60245 or HD 22.4 S4 (This equipment
shall be provided with a cord set complying
with the national regulation.)
In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance
must not be supplied through an external switching device, such as a timer, or connected to a
circuit that is regularly switched on and off by the utility.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
When the connection line between the
indoor unit and outdooor unit is over 40 m,
connect the telecommunication line and
power line separately.
20 mm
GN/YL
NORMAL
CROSS-SECTIONAL
AREA 0.75 mm
2
Phase Capacity Area (mm
2
)
1Ø 16 kW
Indoor unit : 4
Outdoor unit : 6
NORMAL CROSS-SECTIONAL AREA
CAUTION
!
To Next Page
