41
PIPING AND WIRING FOR OUTDOOR UNIT
ENGLISH

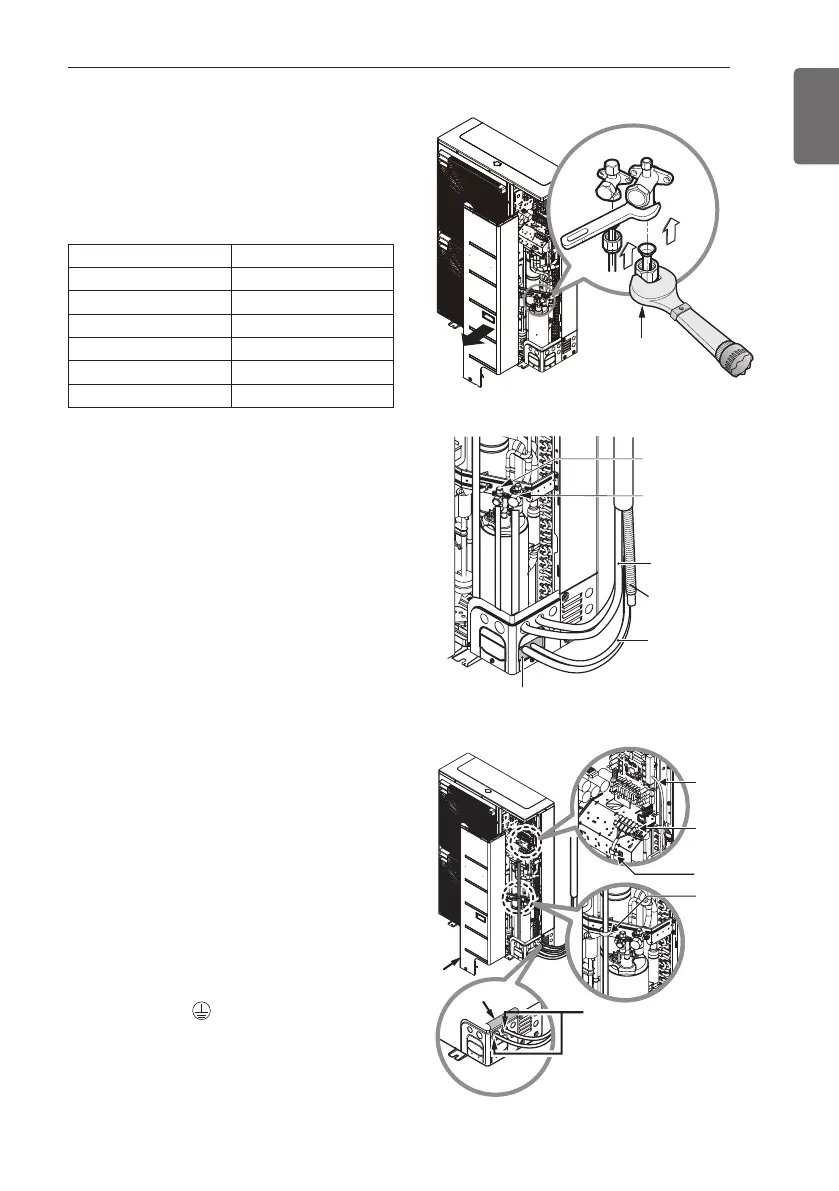

Step 2. Tightening
- Align the center of the pipes and sufficiently
tighten the flare nut by hand.
- Tighten the flare nut with a wrench until the
wrench clicks.
- Tightening torque is as following.
Step 3. Preventing entering of foreign objects
- Plug the pipe through-holes with putty or
insulation material (procured locally) to fill up
all gaps as shown in right figure.
- If insects or small animals enter the outdoor
unit, it may cause a short circuit in the
electrical box.
- Finally, form the pipes by wrapping the
connecting portion of the indoor unit with
insulation material and secure it with two
kinds of vinyl tape. Ensuring thermal
insulation is very important.
Outdoor unit
Torque wrench
Gas side piping
Liquid side piping
Putty or insulating material
(produced locally)
Drain hose
(if necessary)
Connecting wire
Connection pipe
Wiring Procedure for Power Cable
and Connecting Cable
Step 1. : Disassemble the side panel from the
outdoor unit by loosing screws.
Step 2. : Connect Power cable to Main Power
Terminal and Connecting cable to
Control Terminal, respectively.
See below figure for detailed
information. When connecting earth
cable, the diameter of cable should
be bigger than 1.6 mm
2
to secure
safety. The earth cable is connected
to the terminal block where earth
symbol is marked.
When connecting power cable, make sure the
rubber bushes are properly attached in knock-out
holes after removing the Insulation pad.
Control Terminal
(Terminal for
Connecting Cable)
Main Power
Terminal
(Terminal for
Power Cable)
Cable Clamp
(or Cord Clamp)
Insulation pad
Side Panel
Cable Clamp
(or Cord Clamp)
Outside diameter Torque
mm kgf·m
6.35 1.8 ~ 2.5
9.52 3.4 ~ 4.2
12.7 5.5 ~ 6.6
15.88 6.6 ~ 8.2
19.05 9.9 ~ 12.1
To Next Page
