Liebert GXT4 User Manual

Product Description
5Liebert
®
GXT4
™
1.3 Appearance and Components
1.3.1 Appearance
The Liebert GXT4 rack/tower models in various power ratings have the same general appearance,
controls and features (see Figure 1). The various rack/tower models differ largely in the type of
receptacles each has.
Figure 1 Liebert GXT4-700RT230 - GXT4-3000RT230 UPS
1.3.2 Rear Panel Features
The rear panel of the Liebert GXT4 has these features:
• Liebert IntelliSlot
®
Port
•USB port
• Input Circuit Breaker
•Input Receptacle
• General Output Receptacles
• Programmable Output Receptacles
• Cable Strain Relief Attachment Hole
• External Battery Connector
• Cooling Fan
• RS-232 port
• Terminal Block Communication
• Output Circuit Breakers (only on GXT4-3000RT230/230E models)

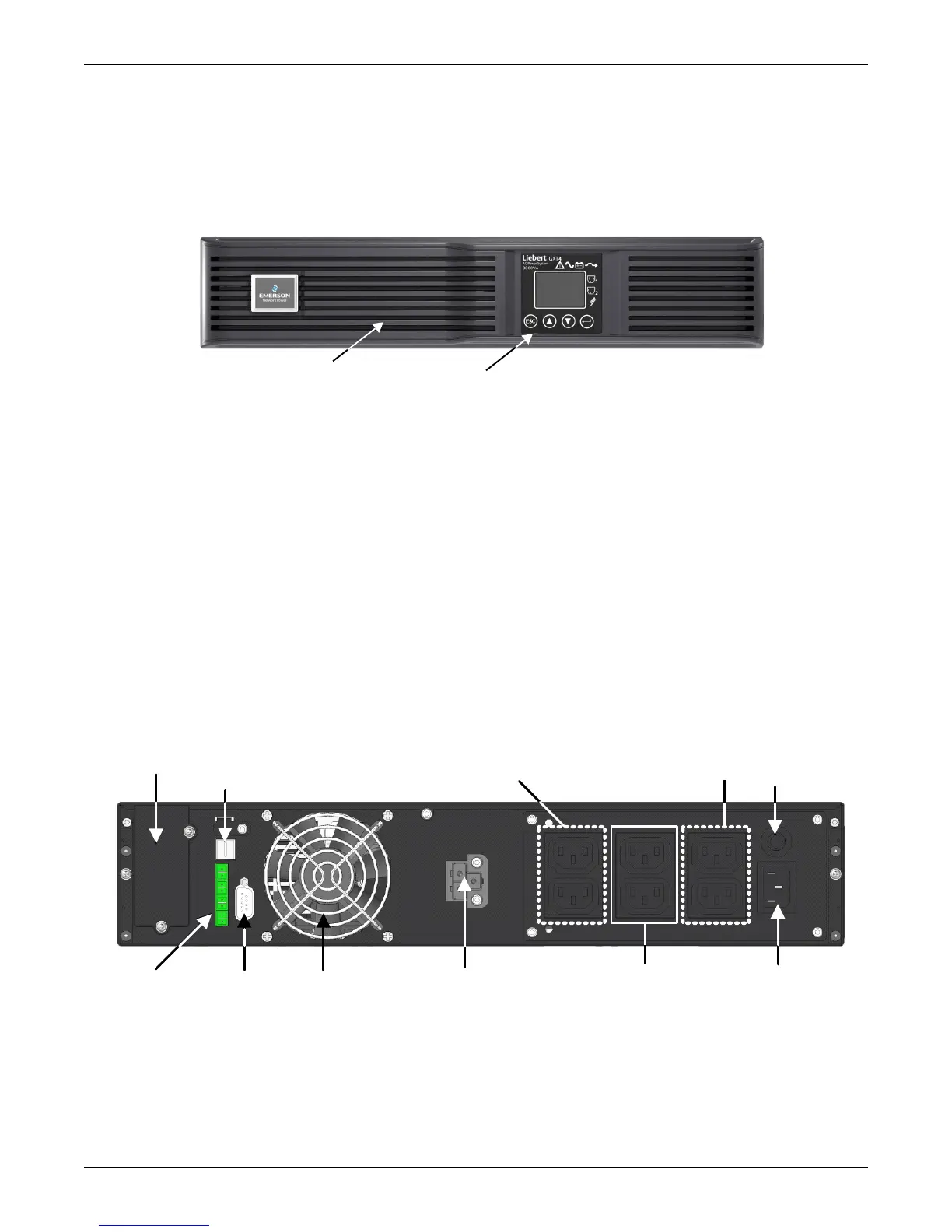

Figure 2 Rear components, Liebert GXT4 230V 700VA and 1000VA models
Operation and Display Panel
Ventilation Slots
Terminal Block
RS232
Port
Liebert IntelliSlot Port
USB Port
Cooling
Fan
Input Circuit
Breaker
External Battery
Connector
General Output
Receptacle, 2
Programmable Output
Receptacle #2, 2
Programmable Output
Receptacle #1 - 2
Input Receptacle

Liebert GXT4 Specifications

General

Form Factor	Tower/Rack Mount
Power Factor	0.9
Battery Type	Sealed Lead-Acid (SLA)
Backup Time	Varies by model and load
Waveform Type	Sinewave
Communication Ports	USB, RS-232
Topology	On-line Double Conversion
Output Frequency	50/60 Hz +/- 0.1 Hz
Typical Recharge Time	3 hours to 90%
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-15°C to 45°C (5°F to 113°F)
Humidity	0-95% non-condensing
Dimensions	Varies by model
Weight	Varies by model
Certifications	UL, cUL, CE, RoHS
Output Voltage	208/220/230/240VAC
