Liebert GXT4 User Manual

Operation and Display Panel
15 Liebert
®
GXT4
™
3.0 OPERATION AND DISPLAY PANEL
This chapter describes the Liebert GXT4 controls, particularly the operation and display panel on the
front of the Liebert GXT4. The panel has four control buttons, seven LED indicators and a liquid
crystal display (LCD), as shown in Figure 12.

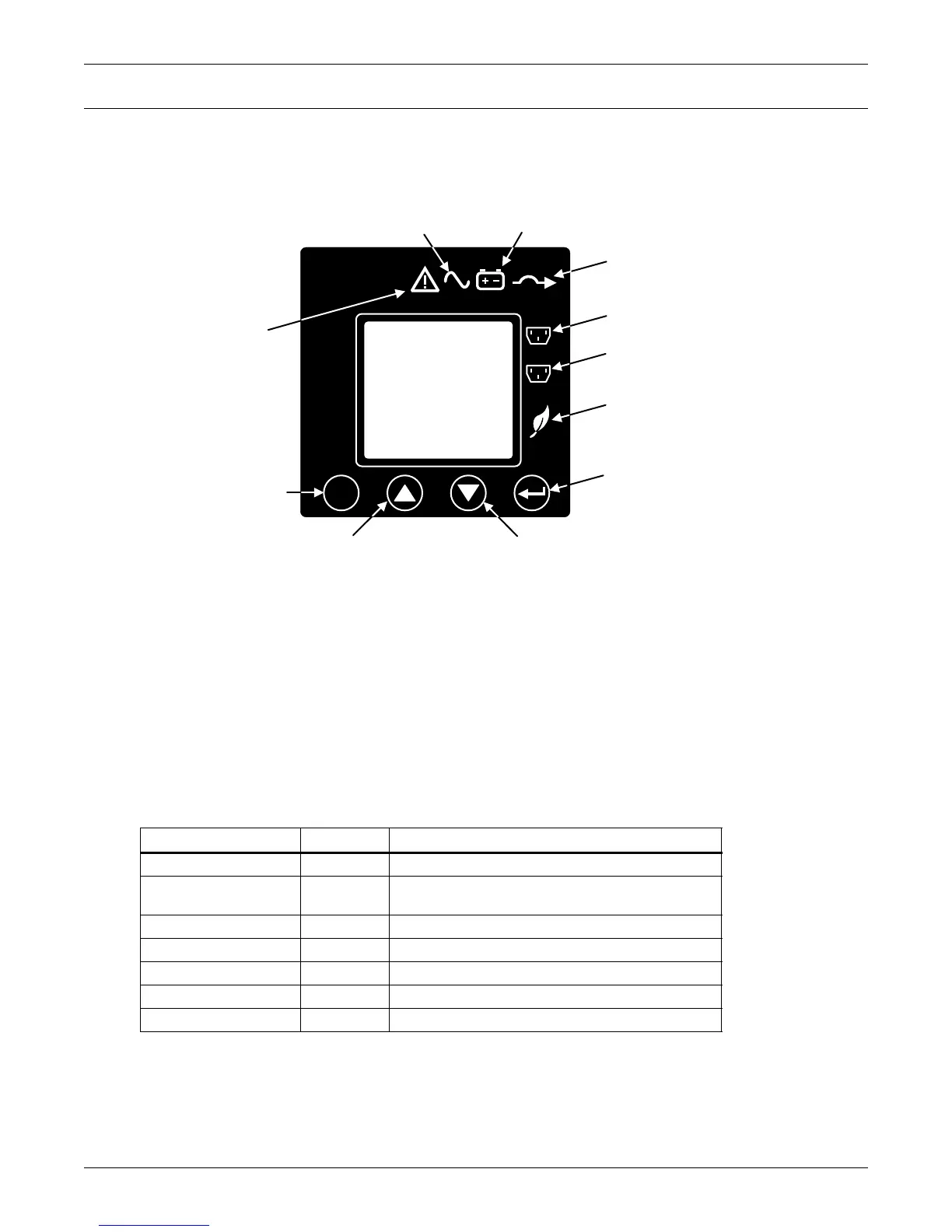

Figure 12 Operation and display panel
3.1 LED Indicators
The seven LED indicators on the front of the operation and display panel are:
• Inverter
•Battery
•Bypass
• Programmable Outlet1
• Programmable Outlet2
• ECO Mode
•Fault
Figure 12 shows the indicators’ locations; their descriptions and functions are shown in Table 3.
Table 3 LED indicators
LED Indicators
LED Color
Description
Inverter Green On when the inverter is supplying power
Bypass Amber
On when the load is supplied by the mains through
automatic/manual bypass
Battery Amber On when the load is supplied by the battery
Fault Red On when an error has occurred within the UPS
Programmable Outlet1 Green On when programmable Outlet1 is On
Programmable Outlet2 Green On when programmable Outlet2 is On
ECO Mode Green On when the UPS is in ECO Mode
Liebert ® GXT4 ™
AC Power System
Battery Indicator
Bypass
Indicator
Inverter Indicator
Fault
Indicator
ESC
Programmable
Outlet1 Indicator
Programmable
Outlet2 Indicator
ECO Mode
Indicator
Down ButtonUp Button
ESC
Button
Enter
Button
1
2

Liebert GXT4 Specifications

General

Form Factor	Tower/Rack Mount
Power Factor	0.9
Battery Type	Sealed Lead-Acid (SLA)
Backup Time	Varies by model and load
Waveform Type	Sinewave
Communication Ports	USB, RS-232
Topology	On-line Double Conversion
Output Frequency	50/60 Hz +/- 0.1 Hz
Typical Recharge Time	3 hours to 90%
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-15°C to 45°C (5°F to 113°F)
Humidity	0-95% non-condensing
Dimensions	Varies by model
Weight	Varies by model
Certifications	UL, cUL, CE, RoHS
Output Voltage	208/220/230/240VAC
