Liebert NX series User Manual

Operator Control and Display Panel
12
2.11 UPS Status Messages
The NX displays status changes as they occur in the current status window of the LCD, then later
stores that data in the history log, as shown in Figure 9.
• Current Status Window: The status messages are displayed chronologically and include the
date and time of the events. Three status messages are visible in the window at a time. To see
other messages, use the navigation keys to scroll up or down the list. A status message remains in
the current status area of the LCD until the status changes, when it is moved to the history log.
• History Log: When a record moves to the history log, the time the status changed is recorded.
The history log can hold up to 512 records. History log records may be viewed by accessing the
Records menu.

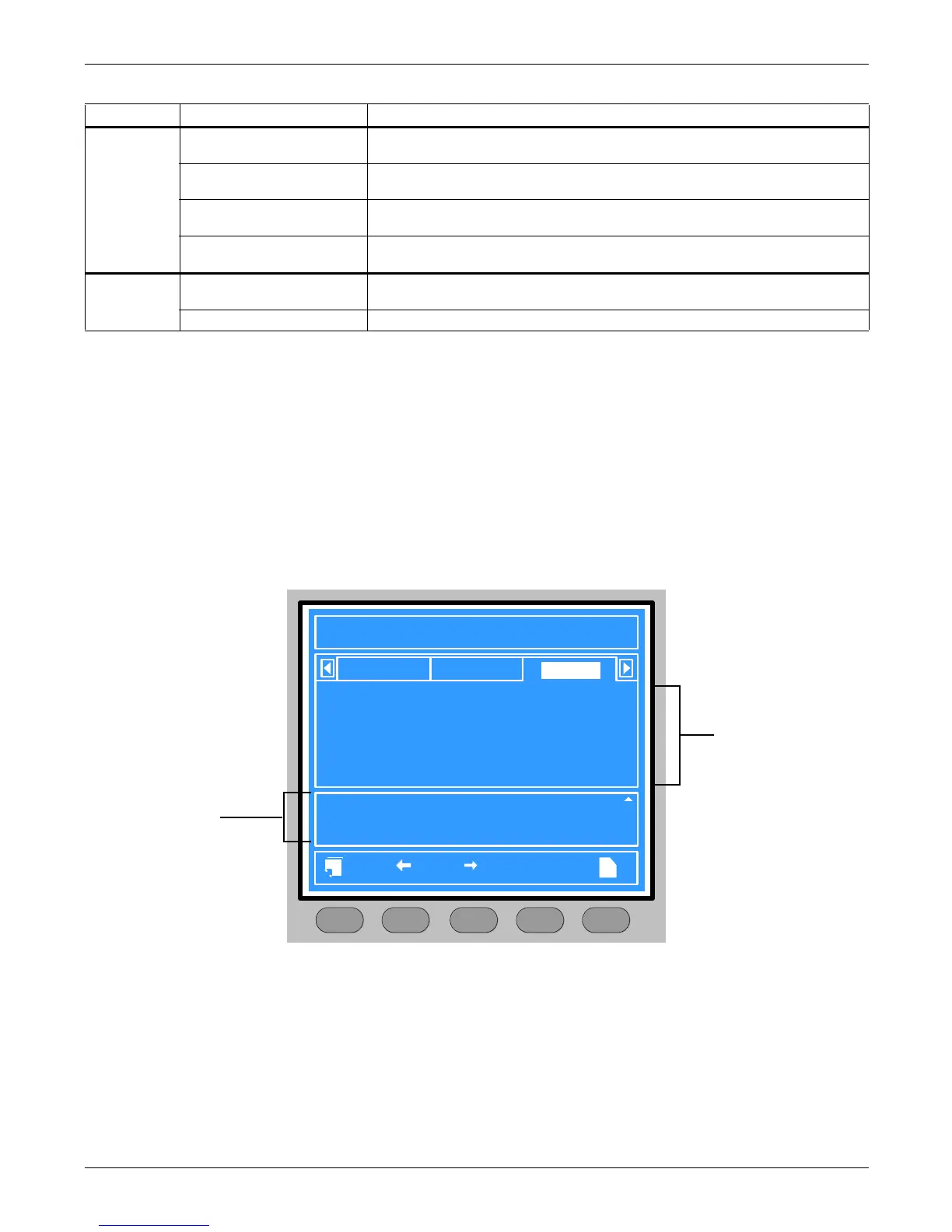

Figure 9 Current status and history log records
See Table 8 in Appendix A for a complete list of status messages, along with a description and any
recommended actions.
Command
(start/stop
battery &
system
tests)
Battery maintenance test
This test performs a partial discharge of the battery to obtain a rough estimate
of the battery capacity. Load must be between 20% and 80%.
Battery capacity test
This test performs a full discharge of the battery to obtain a precise measure of
the battery capacity. Load must be between 20% and 80%.
System test
This is a self-test of the UPS. When the user activates this function, a pop-up
window appears about 5 seconds later to show the results.
Stop testing
Manually stops a battery maintenance test, battery capacity test or system
test.
Version
UPS version
Provides UPS firmware version numbers for the inverter, rectifier and software
display board.
UPS model Provides UPS model information—for example, 208V-60Hz.
Table 5 Descriptions of UPS menus and data window items
Menu Type Item Type Explanation
?
F2 F4
HELP
F1 F3
BatterySystem Records
Bypass abnormal
01-22-2004 09:57:13
01-22-2004 10:02:16
Inverter asynchronous
01-22-2004 09:57:13
01-22-2004 10:02:21
Mains freq. abnormal
01-22-2004 09:57:14
01-22-2004 10:02:14
2004-01-22 12:30:36Liebert NXb
Single Normal30kVA-3X3
Fault reset 01-22 10:32
Manual turn on 01-22 10:32
Normal mode 01-22 11:05
Current status
messages
History log
(records menu)

Liebert NX series Specifications

General

Frequency	50/60 Hz
Display	LCD
Topology	Double Conversion
Input Voltage	208/220 VAC
Output Voltage	208/220 VAC
Communication	SNMP
Operating Temperature	0 to 40°C
Battery Type	VRLA
Humidity	0 to 95% (non-condensing)
Dimensions	Varies by model. See product documentation.
Weight	Varies by model. See product documentation.
Storage Temperature	-15-50°C (5-122°F)
