3.2 UPS Start-Up
The NX must be fully installed and commissioned before startup, and external power isolators must
be closed. Once those general conditions are met, the UPS may be started.
3.2.1 Start-Up Procedure
To start the UPS from a fully powered-down condition:
1. Open the UPS door to gain access to the main power switches.
2. Close CB1.
3. Turn the rotary switch to TEST.
The bypass contactor (M2) closes automatically and the LCD begins to show start-up screens.
The Rectifier indicator flashes green while the rectifier is starting up. It stops flashing and
becomes solid green about 30 seconds after the rectifier enters the normal operation state.
After initialization, the bypass static switch closes.
Because output switch SW1-A is still open, the UPS
channels power through Maintenance Bypass Supply
line (SW1-D). The bypass indicator extinguishes, pro-
vided that the bypass is normal.

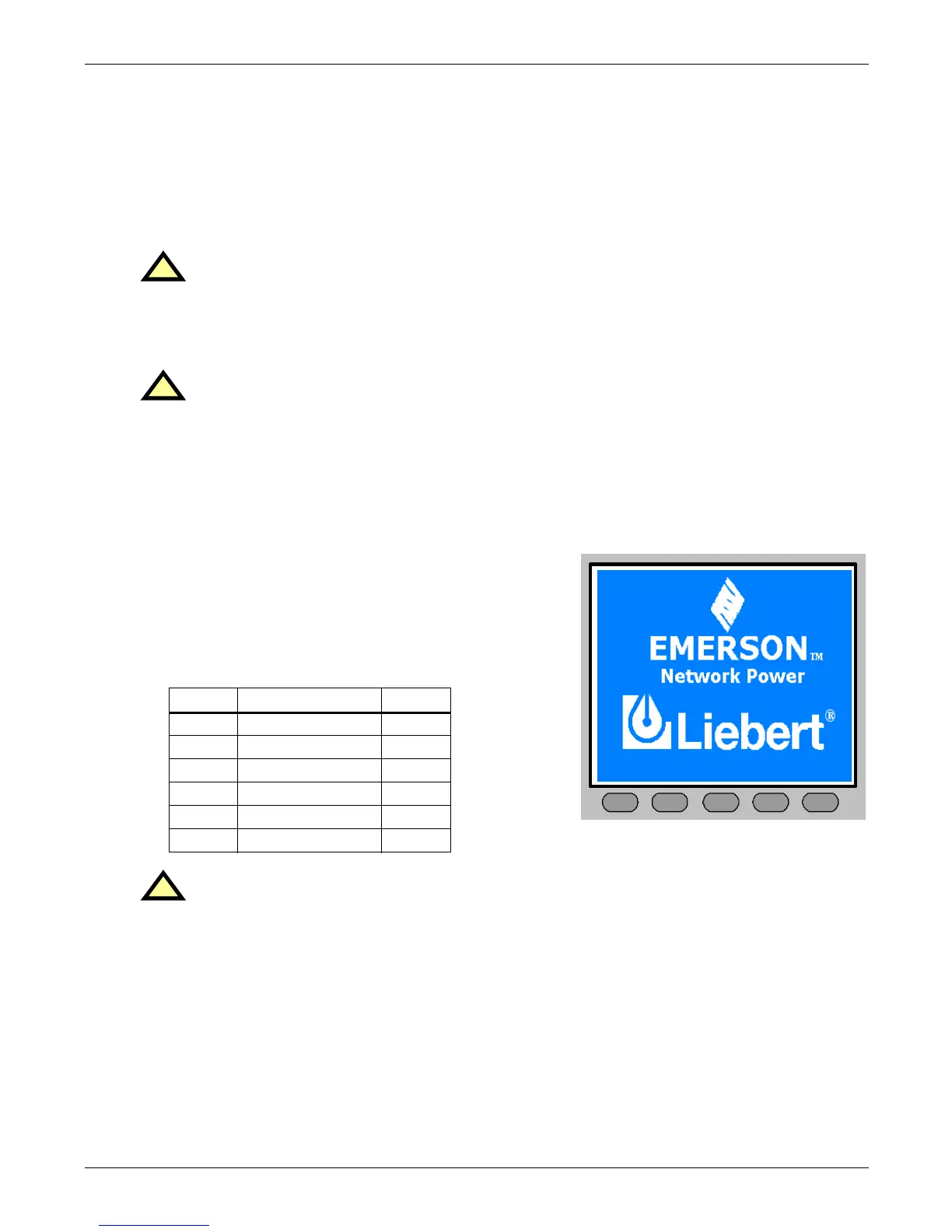

The opening display is shown in the figure at right.
The UPS Mimic display indicators will be:
!
WARNING
During this procedure the output terminals will become live.
If any load equipment is connected to the UPS output terminals, please check with the load
user and ascertain whether it is safe to apply power to the load. If the load is not ready to
receive power, then ensure that it is safely isolated from the UPS output terminals.
!
CAUTION
Do not operate the rotary switch too fast. Always wait at least three seconds when rotating
the switch from one position to another.
# Indicator State
1 Rectifier indicator Off
2 Battery indicator Off
3 Bypass indicator Off
4 Inverter indicator Off
5 Load indicator Off
6 Alarm indicator Off
!
WARNING
Do NOT turn the rotary switch until the rectifier indicator stops flashing green.
F2 F4F1 F3 HELP
To Next Page
