LifeSpan R3 User Manual

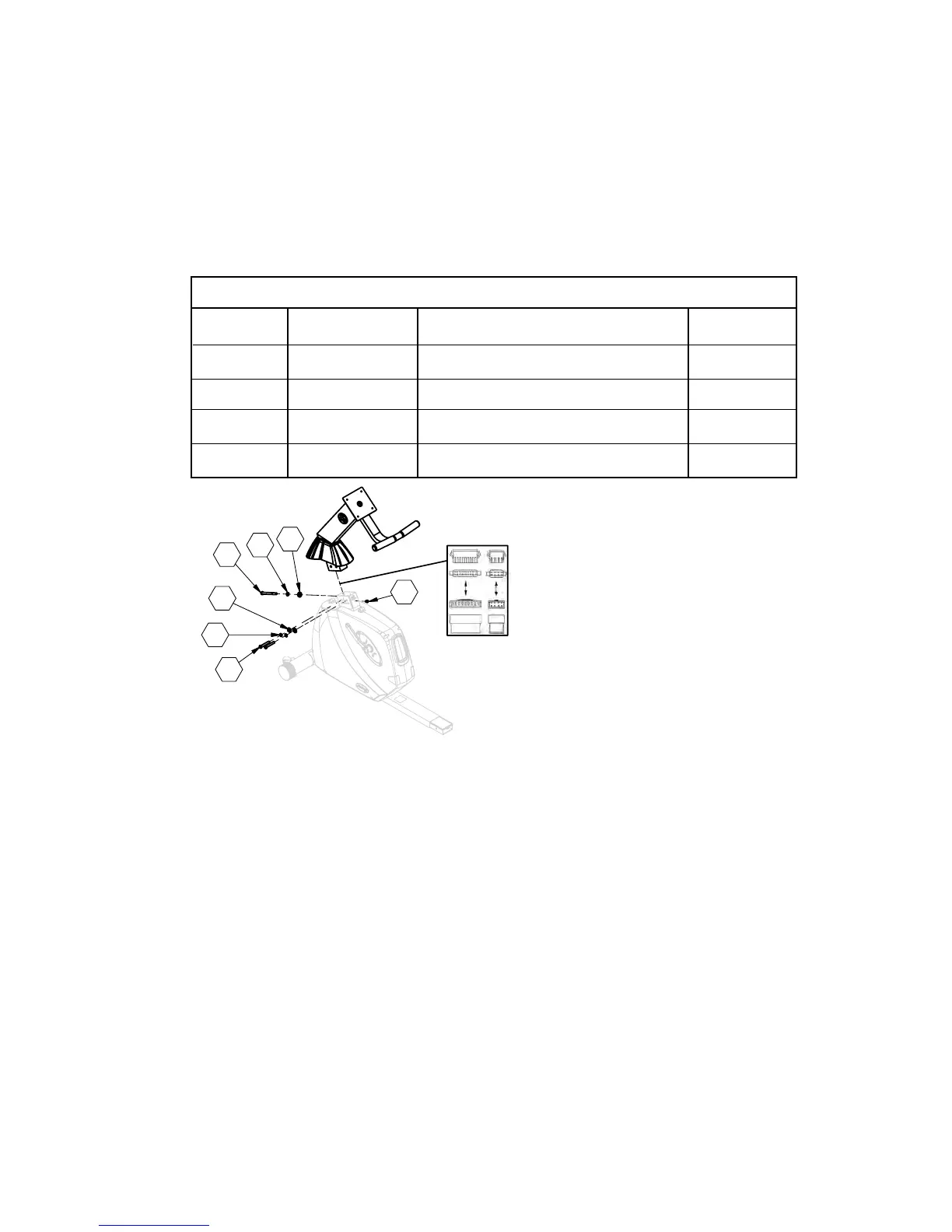

Step 3: Handlebar Post Assembly
Parts Required
Handlebar Post
Rubber Boot
Hardware Required
Part # Size Description Quantity
A-2 M10 * 120 Dome Head Allen Screw 1
A-3 M10 * 70 Dome Head Allen Screw 2
A-6 M8 * 10 Dome Head Allen Screw 1
C-2 M10 Flat Washer 3
C-5 M10 Spring Washer 3
1. Locate the hardware bag for Step 3
2. Slide the rubber boot over the handlebar post as shown in the diagram.
3. Remove the wire tie holding the harnesses in place and connect the two wiring harnesses.
4. Insert the handlebar post into the frame making sure that the wiring harnesses are not
pinched. It may help to keep some tension up on the harnesses from the top of the
handlebar post.
5. Install Screws:
a. Insert the M10 * 120 mm dome head screw (A2) with Flat Washer (C2) and Spring
Washer (C5) thru the hole in the front of the post.
b. Insert the 2 M10 * 70 mm dome head screws (A3) with Flat Washer (C2) and Spring
Washer (C5) thru the holes in the left side of the post.
6. Once all the screws are in place, securely tighten them using the 6 mm Allen Wrench
included with the hardware kit.
7. Install and tighten the M8 * 10 mm dome head screw (A6) into Console side of the post to
eliminate any play in the handlebar post.
10
A2
C5
C2
A6
A3
C5
C2

LifeSpan R3 Specifications

General

Brand	LifeSpan
Model	R3
Category	Exercise Bike
Language	English
