LifeSpan R3 User Manual

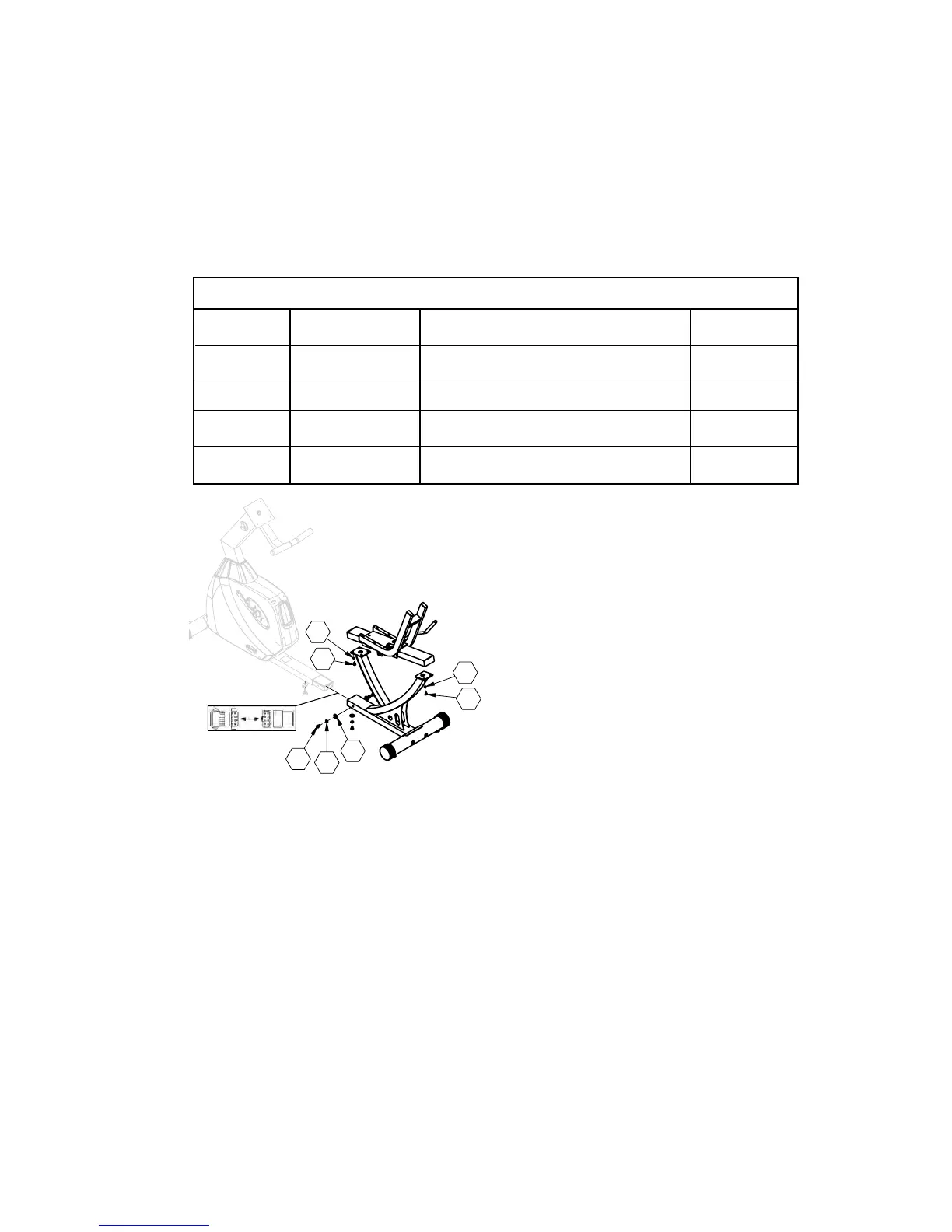

Step 4. Frame Assembly
Parts Required
Seat Rail
Base Frame
Hardware Required
Part # Size Description Quantity
A-4 M8 * 12 Dome Head Allen Screw 6
A-5 M10 * 15 Dome Head Allen Screw 6
C-2 M10 Flat Washer 6
C-3 M8 Spring Washer 6
C-5 M10 Spring Washer 6
1. Locate the hardware bag for Step 4.
2. Slide the front Main Frame close to the Rear Frame. Connect the wire connectors and slide
the Front and Rear Frames together being careful not to pinch the wires.
3. Carefully tip the bike forward onto its nose so that it balances on the front base and
handlebar post.
4. Install the 6 M10*15 Dome Head Allen Bolts (A5) with M10 Flat Washers (C2) and M10
Spring Washers (C5). Tighten these bolts.
5. Carefully lay the unit back down into the Normal position.
6. Set the Seat Slide Frame on top of the Rear Base Frame.
7. Line the mounting holes up. (4 up front and 2 in the back)
8. Install the 6 M8*12 bolts (A5) with M8 Spring Washers (C3). Once all bolts are started
securely tighten all 6 bolts.
11
C3
A4
C2
C5
A5
C3
A4
