2.2 Description of Input and Output Ports

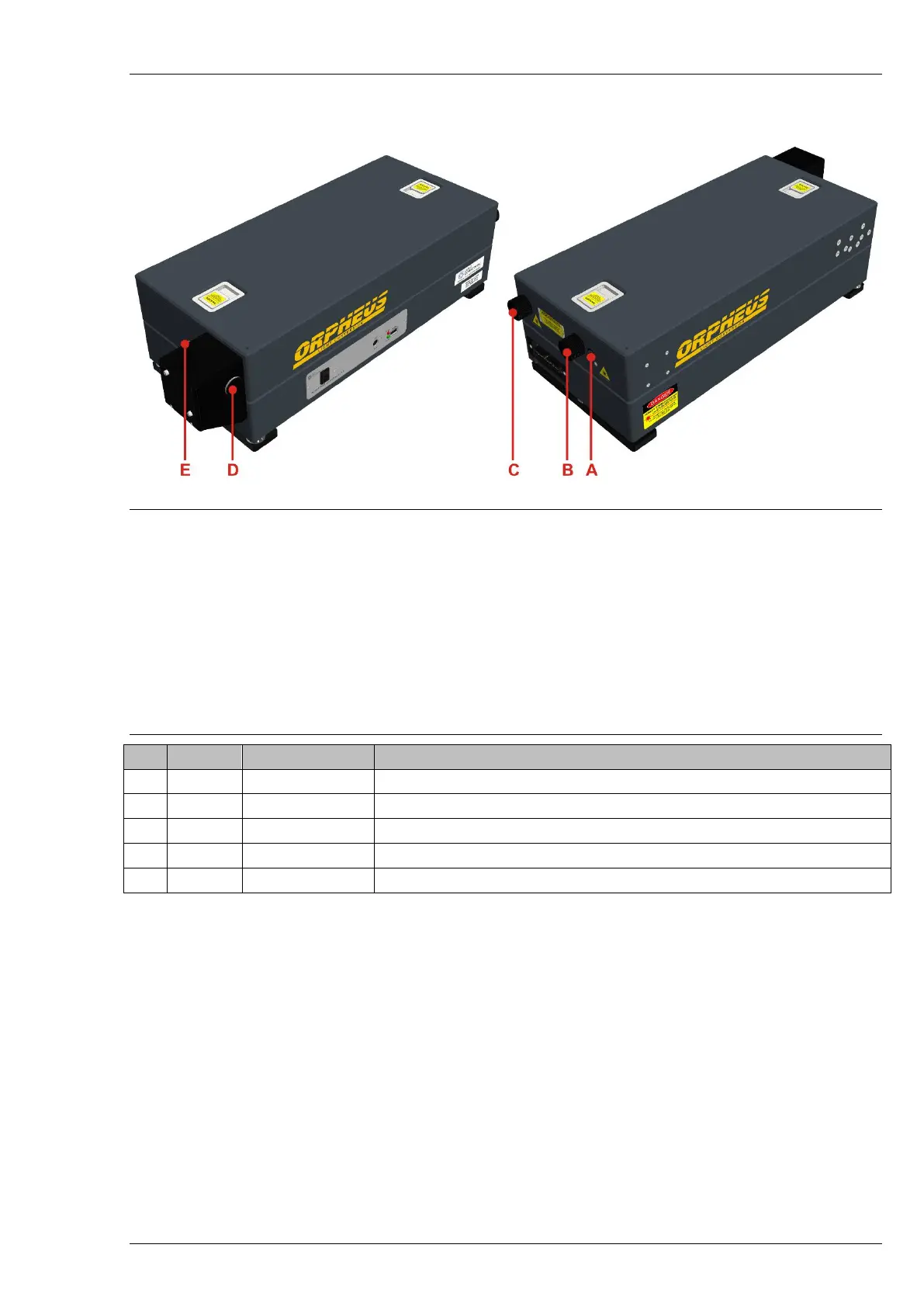

Figure 3. Location of input and output ports on the ORPHEUS body
Figure 3 show the layout of ORPHEUS input and output ports. Parametric radiation is emitted from
the main output port A. Depending on the system configuration, some of the input/output ports may not
be used, but there may still be some radiation emitted from those apertures. They should be blocked
accordingly. Full description of input and output ports is presented in Table 5.
There are also many smaller holes on ORPHEUS body, which are used during alignment of the device.
They are not specially identified; however, it is possible that some radiation may leak through these
apertures. Therefore, make sure that every alignment aperture is closed during normal operation.
Table 5. Description of ORPHEUS input/output ports
No.
In/Out
Wavelength
Description
A
Output
620-2600 nm
Main output port of the ORPHEUS
B
Output
515 nm
Residual second harmonic of pump from the power amplification stage
C
Output
1030 nm
Residual fundamental pump
D
Input
1030 nm
Pump laser input into ORPHEUS
E
Input
1030 nm
Pump laser input into ORPHEUS
