Light Conversion ORPHEUS - Figure 15. Optical Layout of ORPHEUS

ORPHEUS User’s Manual
22 support@lightcon.com Light Conversion
A C Crystal DM DP

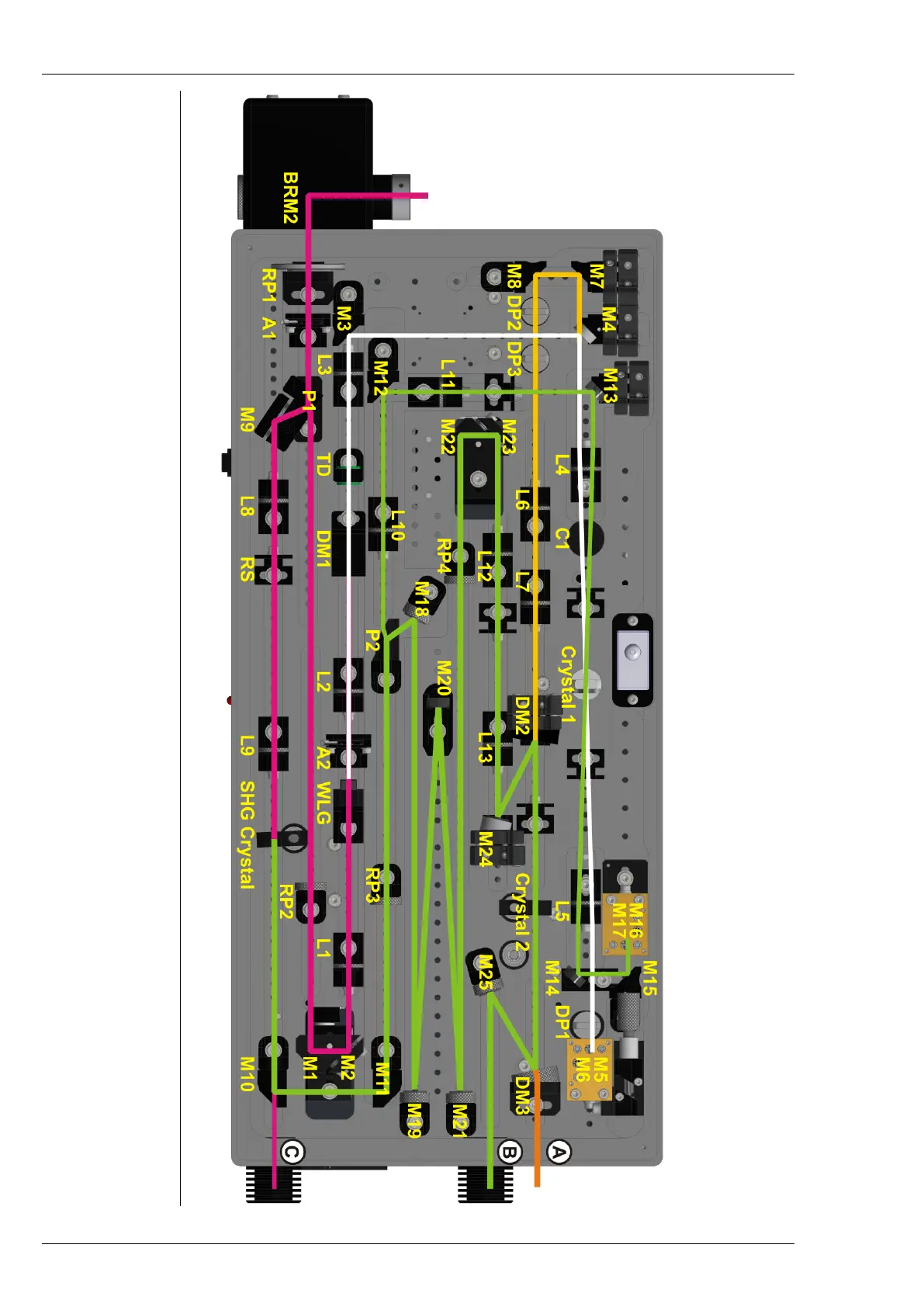

Figure 15. Optical layout of ORPHEUS
– iris aperture – compensator – amplification crystal – dichroic mirror – delay plate
L M P RP RS
– lens – mirror – polarizer – half-wave plate – reflection shield
SHG Crystal TD WLG
– second harmonic generation crystal – temporal dispersion medium – white light generation substrate
