beam dump (Figure 12b). When power is supplied to the solenoid, the mirror is displaced out of the beam
path and the beam is passed through (Figure 12c). The red LED lights up when power is supplied to the
shutter. The WinTOPAS3 software displays the current state of the shutter and provides the control for
opening and closing it.
The software displays the current state of the shutter and provides the control for opening and
closing it (see WinTOPAS start guide).
Always keep the control board powered for the shutter to
operate correctly and for the WinTOPAS to display correct
shutter status.
4.6 Interlock
ORPHEUS is equipped with an interlock mechanism. It is impossible to open the shutter when the
interlock is active. The interlock is activated when an electrical circuit is broken, which happens when
ORPHEUS cover is opened. This releases the button thus breaking the circuit.
Never work with ORPHEUS cover removed unless aligning
the device. Always pay close attention to safety precautions
detailed in this manual, documentation of the laser and
regulations in your laboratory.
To defeat the interlock, pull the button upwards.

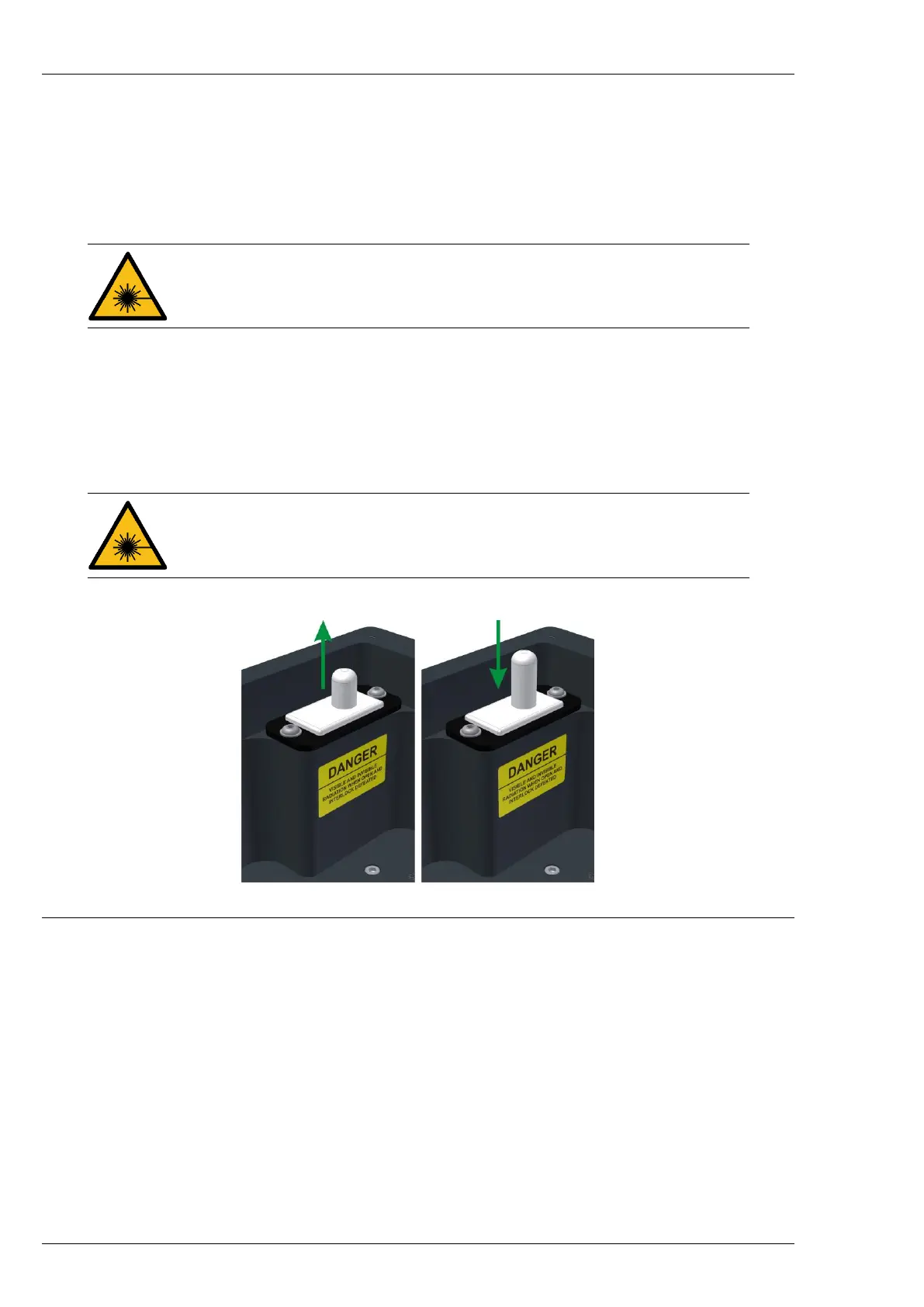

Figure 13. Interlock defeat procedure
