9. Technologies DVI-OPT-220-Pro series – User's Manual 34
Pixel Accurate Reclocking
Signal reclocking is an essential important procedure in digital signal
transmission. After passing the reclocking circuit, the signal becomes
stable, jitter-free, and can be transmitted over more equipment like
and jaggies appear on the image.
only intra-pair skew but inter-pair skew as well. The Pixel Accurate
Reclocking circuit eliminates the following errors:

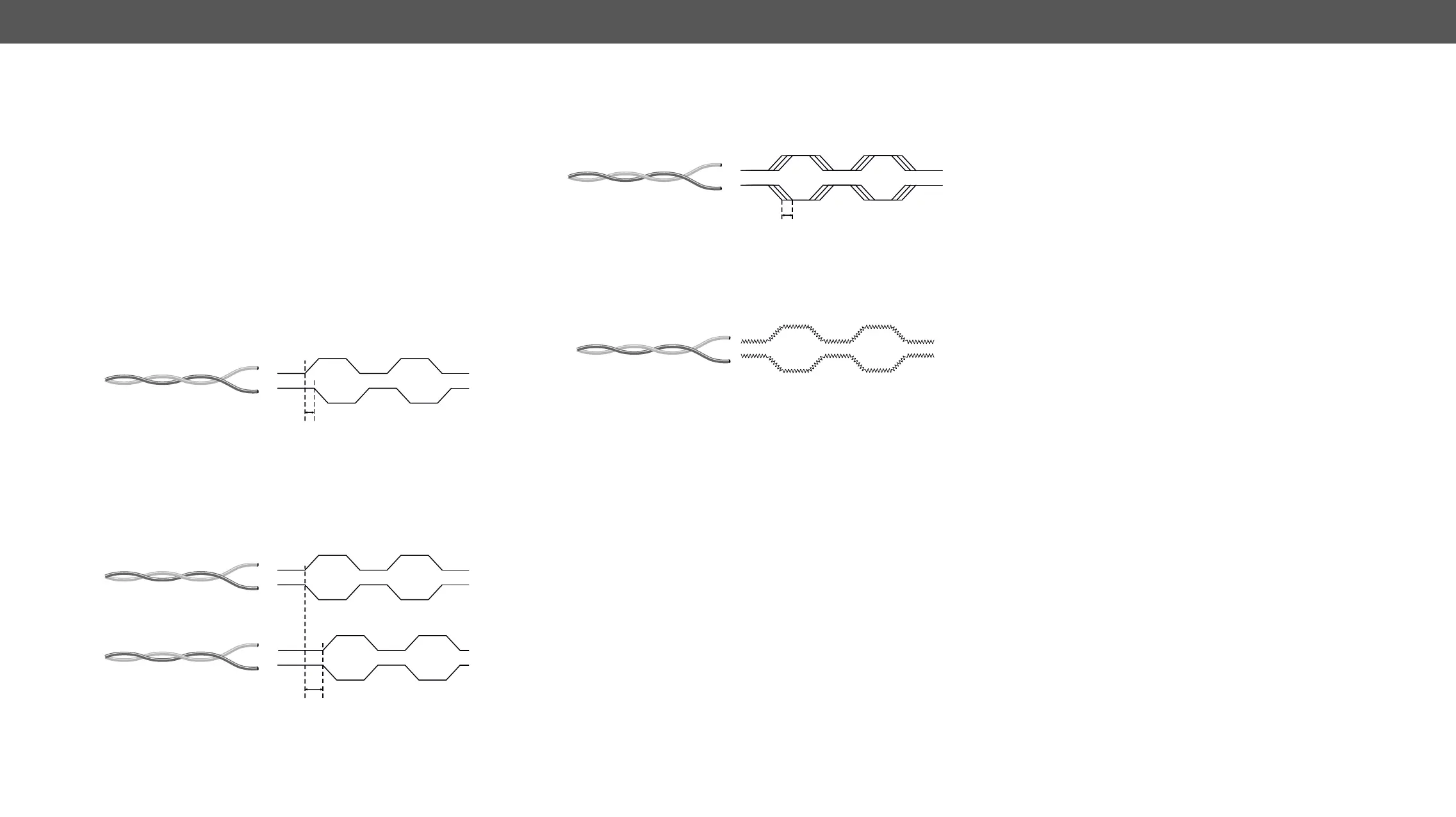

Intra-pair skew
Skew between the + and - wires within a differential wire pair (e.g.
different wire construction (impedance mismatch) in DVI cable. It
results in jitter.
-
Inter-pair skew
Skew between two differential wire pairs in a cable. It is caused by
different wire pair lengths or different number of twists in the DVI
cable. Too much inter-pair skew results color shift in the picture or
sync loss.
-
+
-
Jitter
Signal instability in the time domain. The time difference between two
cause variations.
-
Noise
Electromagnetic interference between other electronic devices such
as mobile phones, motors, etc. and the DVI cable are coupled onto the
signal. Too much noise results in increased jitter.
-
