7. Firmware Upgrade DVIDL-OPT series – User's Manual 29
Click the corresponding cell in the Browse New Firmware
Step 6: Start the Upgrade Process
Press the Upgrade selected rmwares
Quick Bootload mode can be switched on or off any time. It makes the bootloader software faster by only
correct.
Done! message will appear in the bottom left corner. The application
closes the connection, and the device restarts.
Step 7: Done!

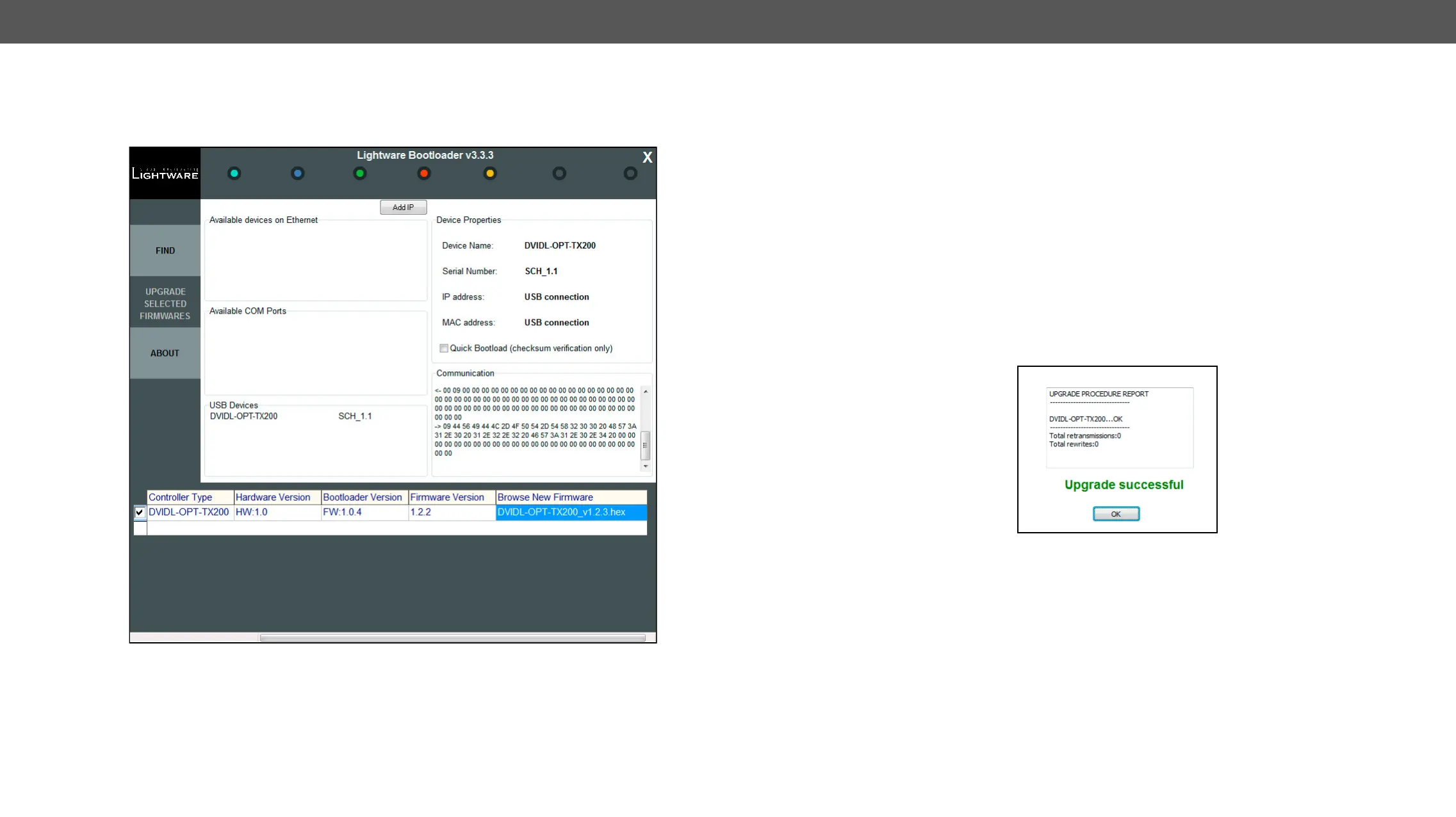

If the upgrade was successful, the following window pops up:
Now you can close the application, or you can select another device to upgrade. After closing the bootloader
application, switch the upgraded devices off and then on. Now the extender is ready to be used with the new
