Lightware DVIDL-OPT-TX200 User Manual


10. Appendix DVIDL-OPT series – User's Manual 35

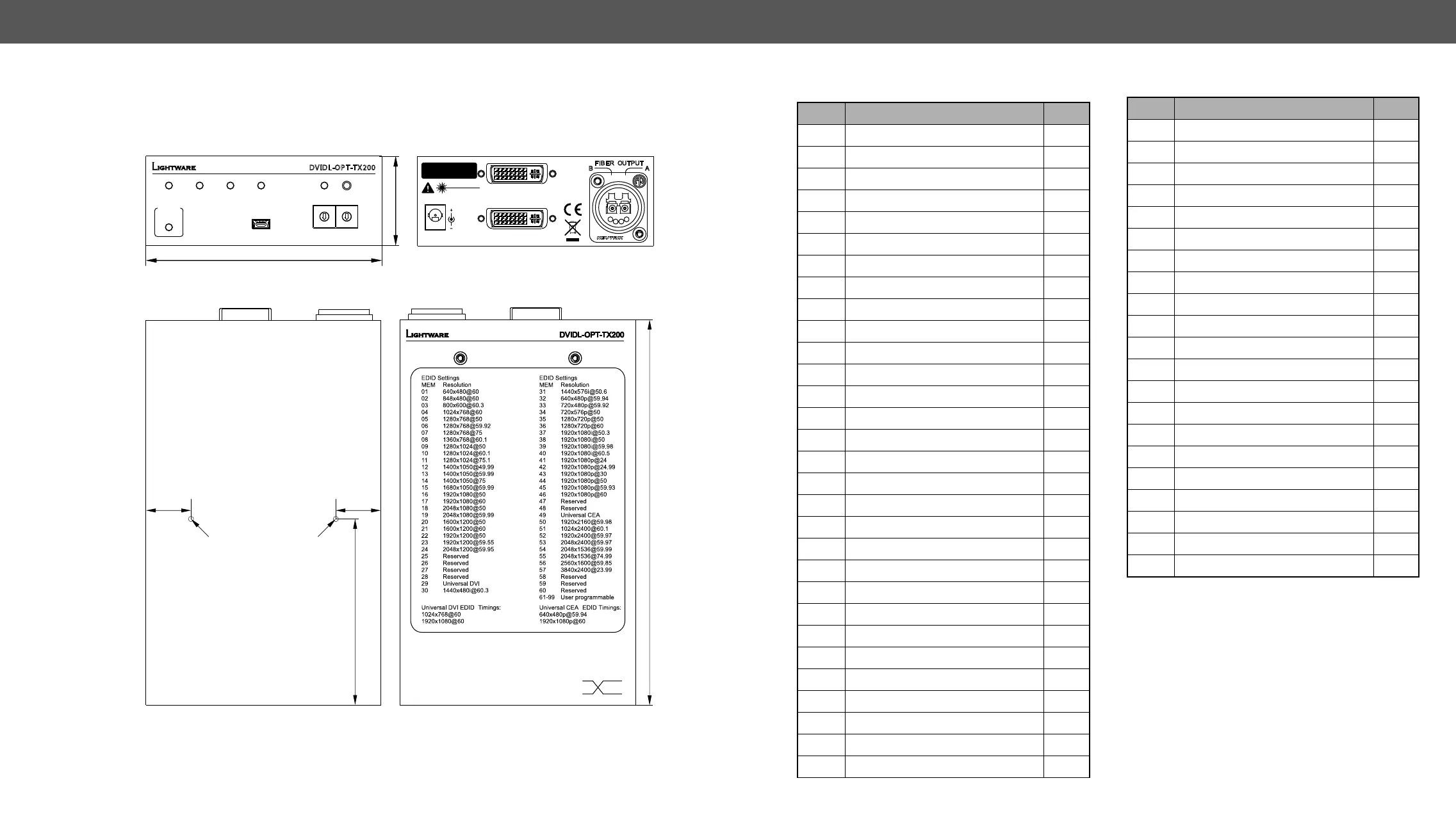

Mechanical Drawings

 Rear View
Bottom View Top View
110
42.2
DV IDL -OP T-T X 200
POWER
MONITOR
HOTPLUG
LASER
ACTIVE
EDID
STATUS
LEARN
PRESS
DUAL LINK DVI MULTIMODE FIBER TRANSMITTER
USB
CONTROL
SIGNAL
PRESENT
SOURCE
+5V
00: LOCAL
MONITOR
OUTPUT
INPUT
5V 1.5A DC
Made in EU, Hungary
FIBER OUTPUT
B A
Sn:
PIN: 2.35mm
Laser Radiation
850 nm
Class 3
RoHS
180
DVIDL-OPT-TX200
For single link DVI signal use Fiber link 1 only .
For dual link DVI extension use both Link 1 and Link 2.
Fiber OUTPUT A: CLK; TMDS 0,1,2 (Link 1)
Fiber OUTPUT B: CL K; TMDS 3,4,5 (Link 2)
EDID STATUS FUNCTIONS
RED:
GREEN:
Invalid EDID memory
Valid EDID selected
RED BLINKING:
GREEN BLINKING:
Learn failed
Learn successful
For 3D appl i c at i o ns s ee manu al.
B
RX INPUTTX OUTPUT
B
A A
Link 1
Link 2
( )
( )
87
21.2521.25
M3 thread M3 thread

Mem. Resolution Type
 640 x 480p @ 60.0 Hz D
 848 x 480p @ 60.0 Hz D
 800 x 600p @ 60.30 Hz D
 1024 x 768p @ 60.0 Hz D
 1280 x 768p @ 50.0 Hz D
 1280 x 768p @ 59.92 Hz D
 1280 x 768p @ 75.0 Hz D
 1360 x 768p @ 60.1 Hz D
 1280 x 1024p @ 50.0 Hz D
 1280 x 1024p @ 60.1 Hz D
 1280 x 1024p @ 75.1 Hz D
 1400 x 1050p @ 49.99 Hz D
 1400 x 1050p @ 59.99 Hz D
 1400 x 1050p @ 75.0 Hz D
 1680 x 1050p @ 59.99 Hz D
 1920 x 1080p @ 50.0 Hz D
 1920 x 1080p @ 60.0 Hz D
 2048 x 1080p @ 50.0 Hz D
 2048 x 1080p @ 59.99 Hz D
 1600 x 1200p @ 50.0 Hz D
 1600 x 1200p @ 60.0 Hz D
 1920 x 1200p @ 50.0 Hz D
 1920 x 1200p @ 59.55 Hz D
 2048 x 1200p @ 59.95 Hz D
 Universal DVI EDID U
 1440 x 480i @ 60.3 Hz C
 1440 x 576i @ 50.6 Hz C
 640 x 480p @ 59.94 Hz C
 720 x 480p @ 59.92 Hz C
 720 x 576p @ 50.0 Hz C
Mem. Resolution Type
 1280 x 720p @ 50.0 Hz C
 1280 x 720p @ 60.0 Hz C
 1920 x 1080i @ 50.3 Hz C
 1920 x 1080i @ 50.0 Hz C
 1920 x 1080i @ 59.98 Hz C
 1920 x 1080i @ 60.5 Hz C
 1920 x 1080p @ 24.0 Hz C
 1920 x 1080p @ 24.99 Hz C
 1920 x 1080p @ 30.0 Hz C
 1920 x 1080p @ 50.0 Hz C
 1920 x 1080p @ 59.93 Hz C
 1920 x 1080p @ 60.0 Hz C
 Universal EDID with CEA U
 1920 x 2160p @ 59.98 Hz D
 1024 x 2400 @ 60.1 Hz D
 1920 x 2400 @ 59.97 Hz D
 2048 x 2400 @ 59.97 Hz D
 2048 x 1536 @ 59.99 Hz D
 2048 x 1536 @ 74.99 Hz D
 2560 x 1600 @ 59.85 Hz D
 3840 x 2400 @ 23.99 Hz D
Legend
D: DVI EDID
C: EDID with CEA extension
U: Universal EDID (supporting many common
resolutions)
Please note that minor changes in the factory EDID





