4. Device Concept UMX-TPS-TX100 series – User's Manual 40
Port Diagrams
Standalone Extenders
operation is the same for the following models.
▪ UMX-TPS-TX120, -TX130, -TX140
▪ UMX-TPS-TX140-Plus
▪ UMX-TPS-TX140K

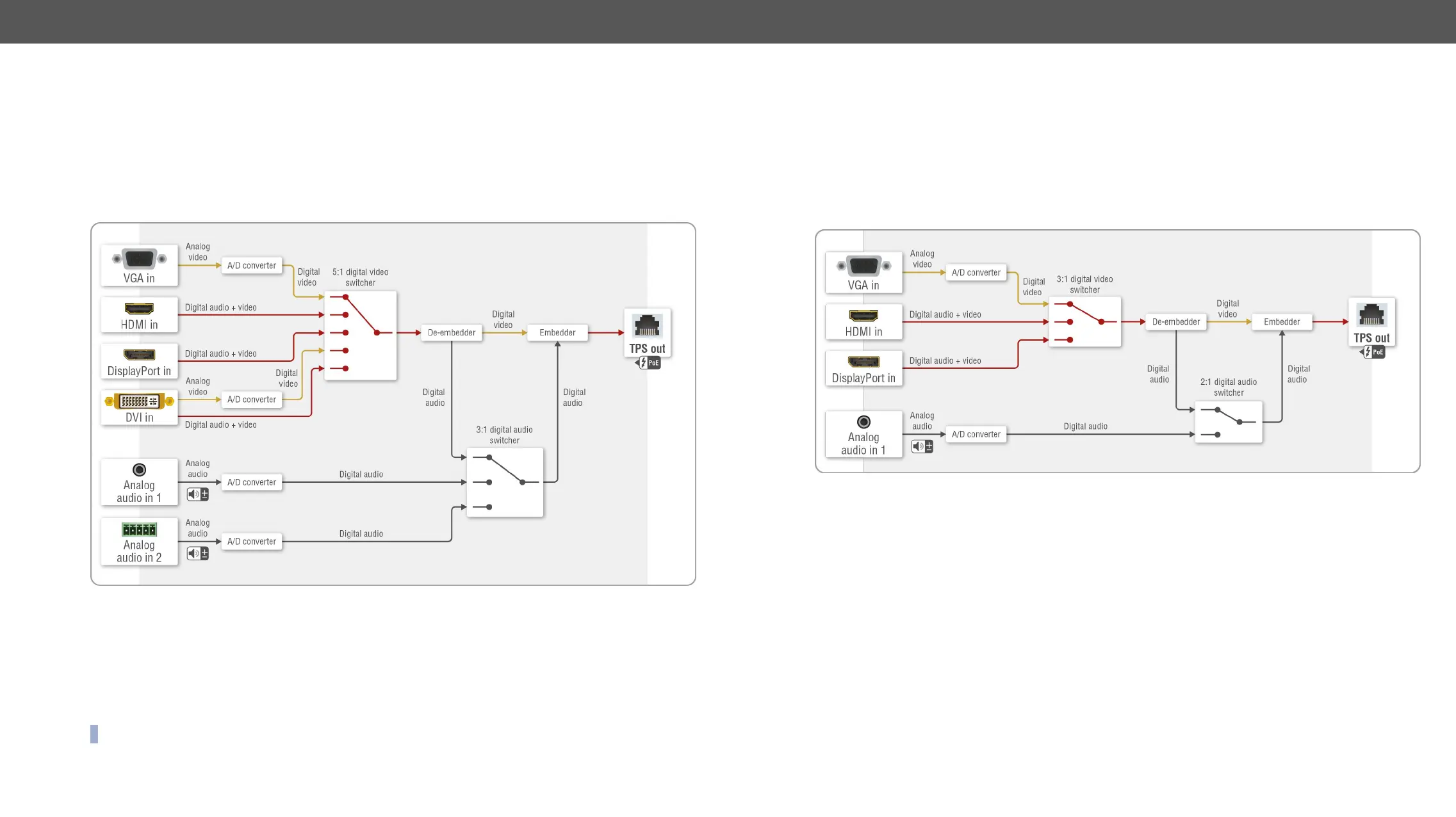

Port diagram of the UMX-TPS-TX140 transmitter
5-pole Phoenix). The analog signals are converted to digital ones. The user can choose which audio signal
is transmitted on the TPS output port: one from the analog audio sources or the original embedded audio
INFO:
Besides, the device has four different interfaces to control the unit itself or third-party devices: infrared (input
and output), RS-232, Ethernet, and GPIO.
Wall Plate / Floor Plate Extenders
the operation is the same for the following models.
▪
▪
▪
▪ FP-UMX-TPS-TX120
▪ FP-UMX-TPS-TX130
Port diagram of the WP-UMX-TPS-TX130-US transmitter
signals are converted to digital ones. The user can choose which audio signal is transmitted on the TPS
Besides, the device has four different interfaces to control the unit itself or third-party devices: infrared
(input), RS-232, and Ethernet.
