Page 143 of 192

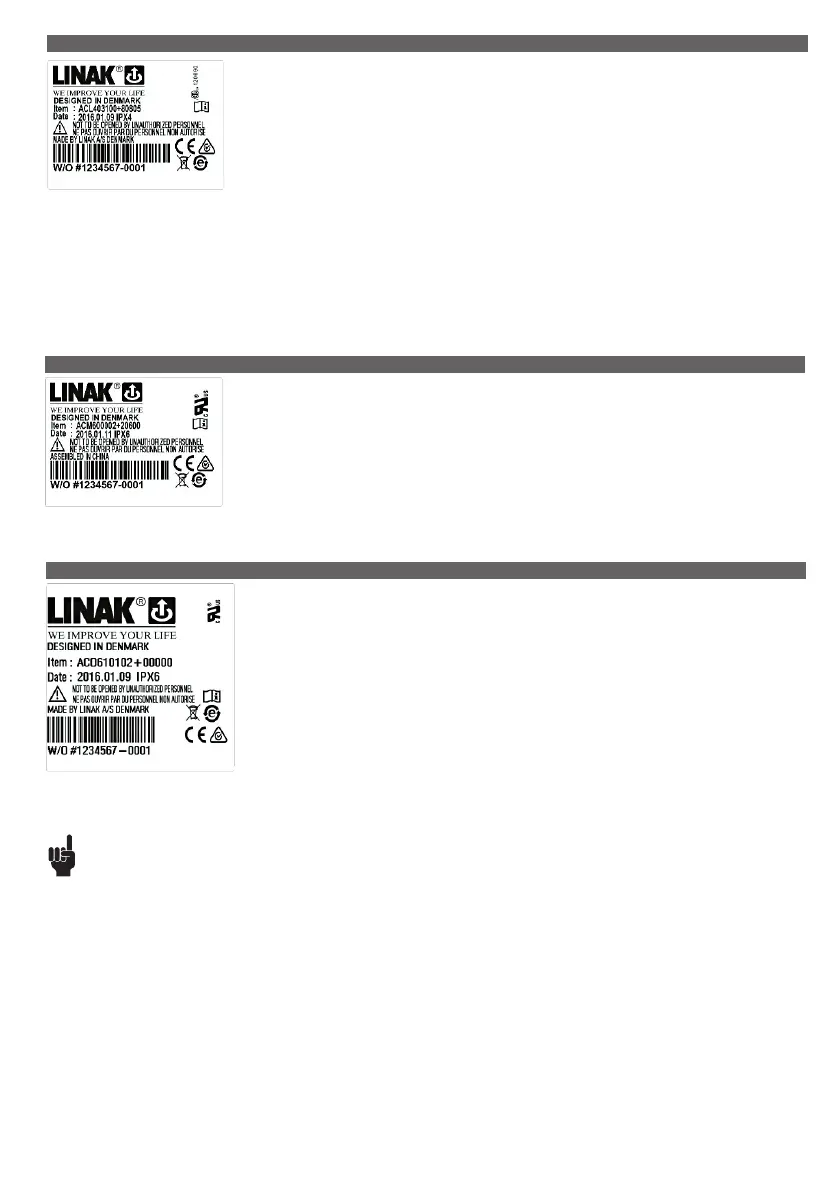

The ACL (Attendant Control Lock) box is a one turn button box for various applications where the patient
positioning must be carefully controlled by the medical staff.
The ACL disconnects all functions on hand control either by means of turn button or turn key.
3. ACL (MEDLINE
®
CARELINE
®
)
The aim is to minimise the risk of unintended activation of an actuator and hereby minimising the risk of “squeezing”.
Due to ESF (Electronic Safety Function), the ACL / FS has to be operated using a certain technique in order to activate the switch.
It is necessary to “double click” to start the system :
• Foot pressure must be applied for a short period of time, from 30 ms to 250 ms.
• Then briefly lift the foot from (max. 40 ms to max. 550 ms pause), followed by a normal activation.
• After an activation attempt without success, a pause of min. 1. sec. is required before a new attempt.
The ACM (Mini Attendant Control) box is fitted to hospital and care beds for use where patient positioning
must be carefully controlled by the medical staff.
The compact design and simple operation makes it easy for the nursing staff to retain direct control over
critical positioning functions whilst giving the patient a limited degree of adjustment.
The ACM must be mounted correctly on a flat surface to ensure IP degree. A short circuit in the cable can
cause movement. To possibly avoid this risk, choose a OpenBus
TM
system.
4. ACM (MEDLINE
®
CARELINE
®
)
The ACO (Attendant Control OpenBus
TM
) is a cost optimised and compact unit with up to 15 buttons that can
be used as hand control keys or lock-outs. The lock-out function can be made visable by using yellow LED´s.
The ACO is compatible with control boxes that use an OpenBus
TM
interface i.e. CB6S, CB16 and CB20.
Usage:
• Compatible with OpenBus™ e.g. CB20, CB6S and CB16.
• Ambient temperature: +5 °C to + 40 °C
• Approvals: IEC 60601-1 Edition 3.1 (2012)
IEC 60601-1-6:2010 + A1:2013,
ANSI/AAMI ES60601-1: A1:2012, C1:2009/(R) 2012 and A2:2010/(R)2012,
CAN/CSA-C22.2 NO. 60601-1:14
• Current consumption: 15 mA (Standard versions with 5 no. LEDs (5 LEDs x 2 mA = 10 mA)
+ microprocessor 5 mA, total = 15 mA
In order to comply with the norm, the ACO must hang vertically from its hook during the washing process.
5. ACO (MEDLINE
®
CARELINE
®
)
Recommendations
• Always use Locking ring and cables with O-rings.
• Locking ring and cables with O-rings must be fitted to ensure IP degree.
• If other front covers than standards are requested, the customer must design them.
N.B.
• Cables are inclusive an O-ring.
