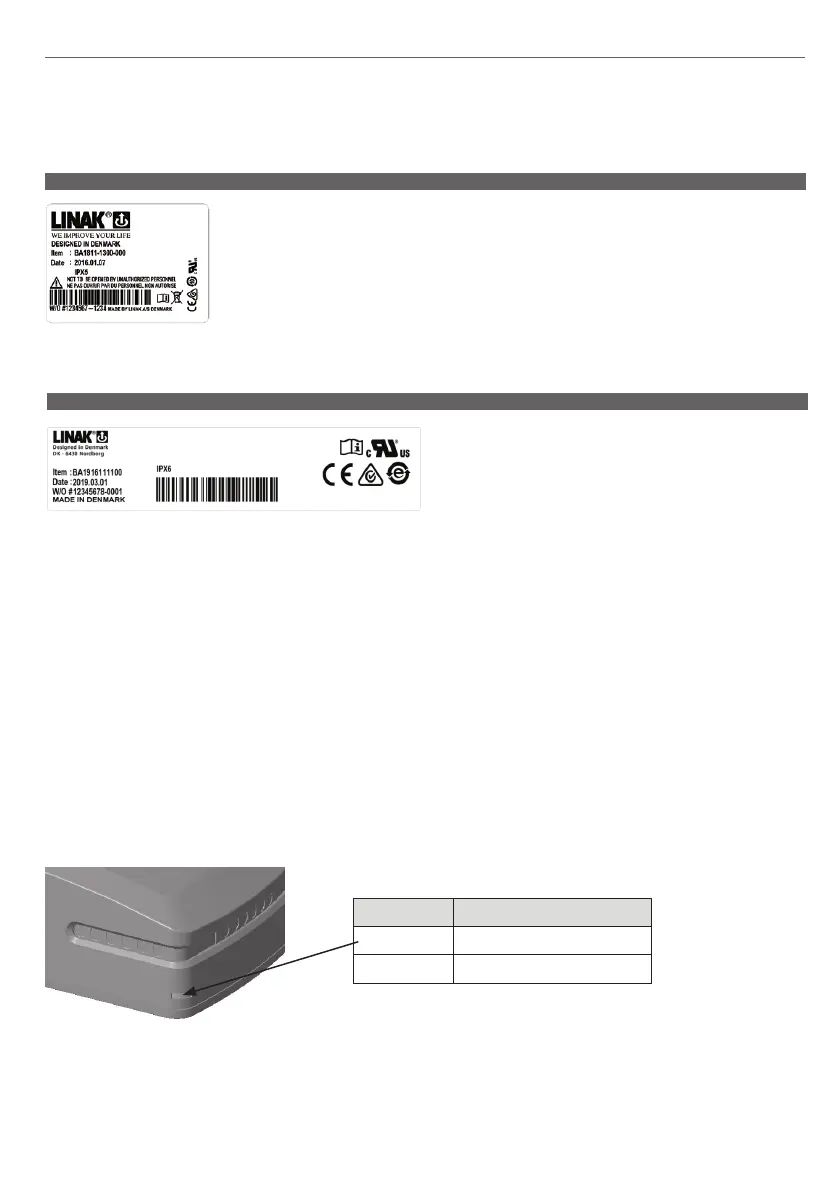

Page 170 of 192
8. Information on specific accessories
If the actuator is to be equipped with accessories, these must be specified when ordering the actuator from LINAK. There are the following possibilities:
1) TR6/TR7 External transformer
If the TR6 or TR7 fixed cable connection becomes damaged the transformer must be replaced.
1. BA18 (MEDLINE
®
CARELINE
®
)
The BA18 is exchangeable without opening the CB (BA18 is a separate box).
Ventilation of external batteries, BA18 - see Figure 1
Check at regular intervals that the ventilation stub is undamaged and intact. The construction of the ventilation stub
permits battery gasses to get out, but it does not permit penetration of water.
Usage:
• Compatible with CB6, CB6S, CB7, CB9, CB12 / CB14 BT versions
• Ambient temperature: +5 °C to +40 °C
2. BA19 lead acid (MEDLINE
®
CARELINE
®
)
The BA19 lead acid backup battery has been developed specifically for
use with the new control boxes CA30/CA40 and CO61. It is a compact
and cost-efficient battery with built-in charger and cable management.
Usage:
• Compatibility: Battery backup for CA30/CA40 and CO61
• Duty cycle: 10%, 2 minutes continuous use followed by 18 minutes not in use
• Charging: Via integrated charger
• Charging time: Approx. 6 hours
• Recharging during storage: Battery recharging no later than 6 months after production date stated on the label
• Operating temperature: + 5 °C to + 40 °C
• Storage temperature: - 5 °C to + 40 °C
The batteries must be stored in an applicable storage room to avoid direct sunlight
• Relative humidity: 20 % to 80 %, but non-condensing acc. to temp.
• Atmospheric pressure: 700 to 1060 hPa
• Service: Battery cells cannot be replaced as the battery cover cannot be closed properly afterwards
• Approvals (pending): IEC60601-1:2005 3
rd
edition,
ANSI/AAMI ES60601-1: 2005, 3
rd
edition
CAN/CSA-22.2 No. 60601-1:2008
LED functionality:
What does the LED indicate?
LED Indication of operation
Solid orange Charging (battery not ready)
No LED light Fully charged (battery ready)
Buzzer functionality:
The buzzer will make a warning when a button on the hand control is pressed and the battery capacity is low.
The buzzer can also be activated by the control box to signal other conditions. This must be specified in the control box software.
