The Care Communication System (CCS) is a communication system primarily targeting nursing homes and the home care sector. CCS provides
instant intelligent messages and direct voice communication from care bed to caregiver.
The system consists of three parts: a Care Communication Module (CCM) mounted on the bed, a Care Communication Web Portal (CCW) and a
Care Communication App (CCA).
Intended use
The Care Communication System (CCS) is developed as a communication and information system with the purpose of increased efficiency for the
health care sector, improved work conditions for caregivers and higher comfort and independency for the people in need of care.
The CCS is not a medical device, nor to be used for any medical purpose, such as diagnostic or therapeutic purposes. CCS is not an emergency call
system, nor does the CCS replace the normal monitoring or care routines of patients or people in need of care.
4. Care Communication System (CCS)
Care Communication Module (CCM)
The CCM accommodates the transfer of intelligent sensor information from the care bed (i.e. WET detection (WET) or Out Of Bed detection (OOB) to
the caregiver by means of the CCW and CCA.
Furthermore, the CCM facilitates voice communication between a caregiver or relative and the person in care.
Usage and compatibility:
• Compatible: OpenBus
TM
control boxes
• Fire classification: UL-94 V2
• IP-classification: IPX4
• Temperature: Operation: + 5 °C to + 40 °C
Storage: - 10 °C to + 50 °C
• Relative humidity: 20 % to 90 % at + 30 °C
• Atmospheric pressure: 800 to 1060 hPa
• Meters above sea level: Max. 2000 meters
• Approvals: IEC 60601-1: 2005 (3
rd
edition)

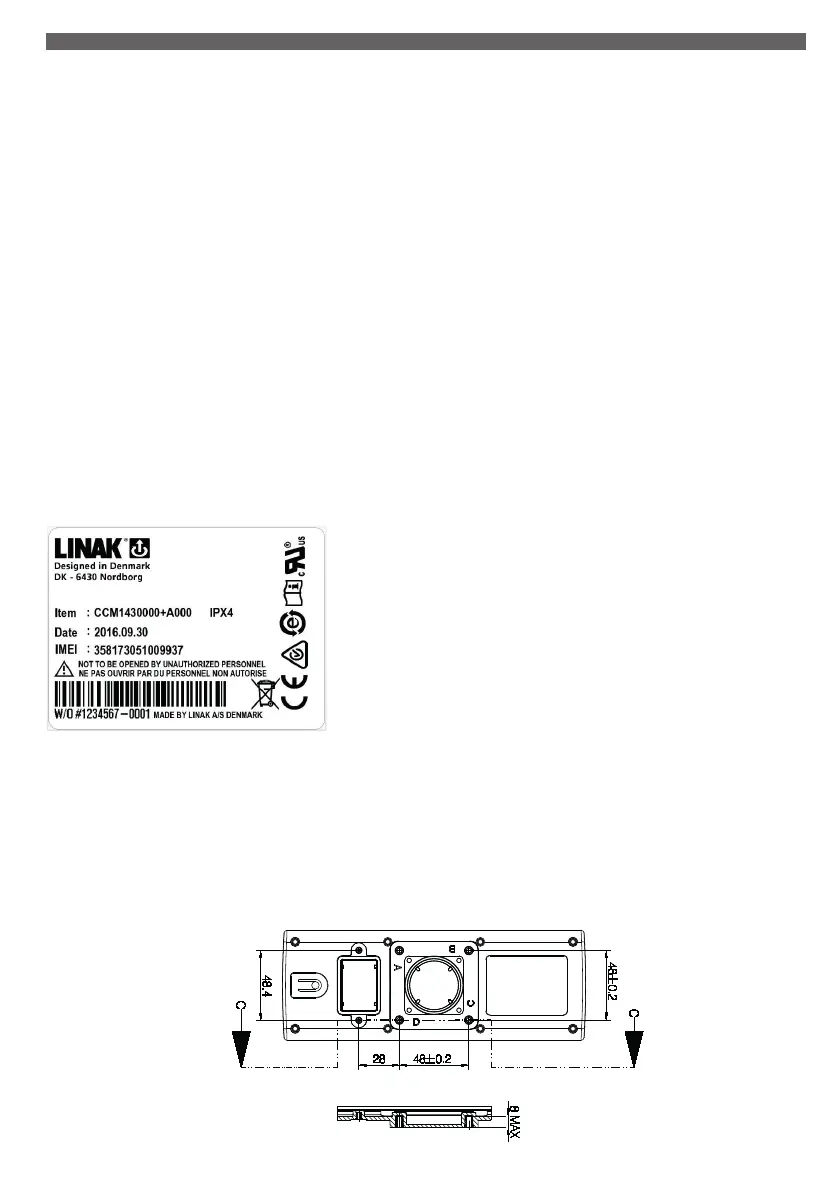

The CCM has an identity number called IMEI. The IMEI number is a 15 digit number that
is unique for the CCM. The IMEI number is written on the CCM label and is used for
registration of the CCM in the CCW.
Mounting instructions
The CCM is intended for fixed mounting to the bed within reach of the person in bed.
There are four cable plug position variants, A, B, C or D (see drawing below), making it possible to define if the CCM is to be mounted on the left or
the right side of the bed in either vertical or horizontal position. Please see the design view and combination code for further information.
It is not possible to change the cable outlet after the CCM has been manufactured!
The bed mounting bracket is not supplied by LINAK, but must be designed and made by the bed manufacturer according to the dimensions below.
Maximum screw torque = 1.2 [Nm]
Section C-C
