The control boxes CA30 and CA40 are developed
as part of a new control box platform for the care
and rehab industry.
The control boxes can be mounted separately
on the application by means of unique slide-on
brackets, but also on several actuator models
using a specially designed actuator bracket.

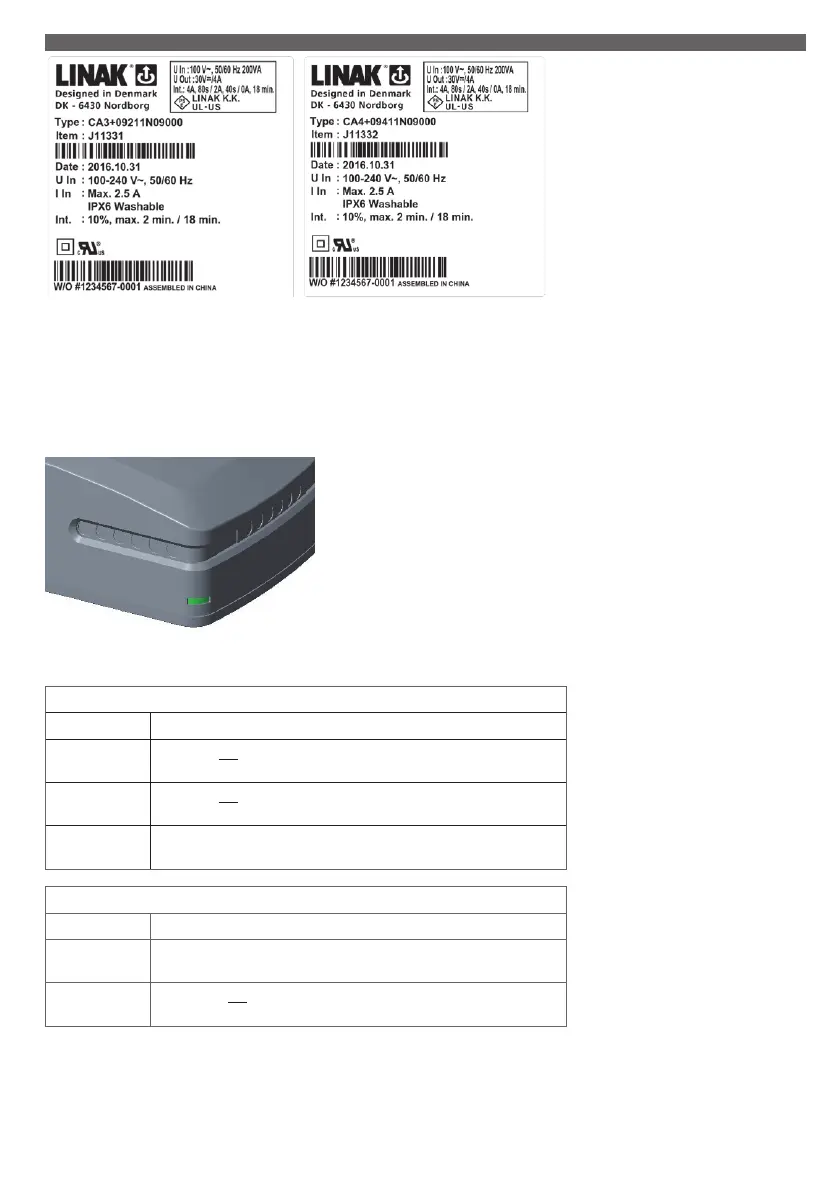

LED indicator
CA30/CA40 is equipped with a three-colour LED for indication of mains or battery operation.
Connected to MAINS
LED colour Indication of operation
Green
On mains, not activated by hand or foot control.
The system is working ok and is ready for normal operation
Yellow
On mains, not activated by hand or foot control.
The system is defective and should not be operated.
Yellow On mains, activated by hand or foot control.
The system is working.
Not connected to mains but with BATTERY back-up
LED colour Indication of operation
Orange On battery, activated by hand or foot control.
The system is working
No LED
On battery, not activated by hand or foot control.
or CA30/CA40 not connected to mains
1. CA30/CA40 (MEDLINE
®
CARELINE
®
)
Usage:
• Duty cycle: 10 % - 2/18 min. on/off continuos use.
Maximum power is 120 W for 80 seconds and 60 W for 40 seconds at 25 °C
