The CBJ-Home is a specially developed solution for patient lifts.
The complete system consists of a control box and a battery enclosed in a
single elegant module.
The system is approved according to medical safety standards and
contains a series of features ensuring a safe comfortable lift, e.g. the
CBJ-Home is equipped with a soft-start function, electrical emergency
lowering, emergency stop etc.
Usage:

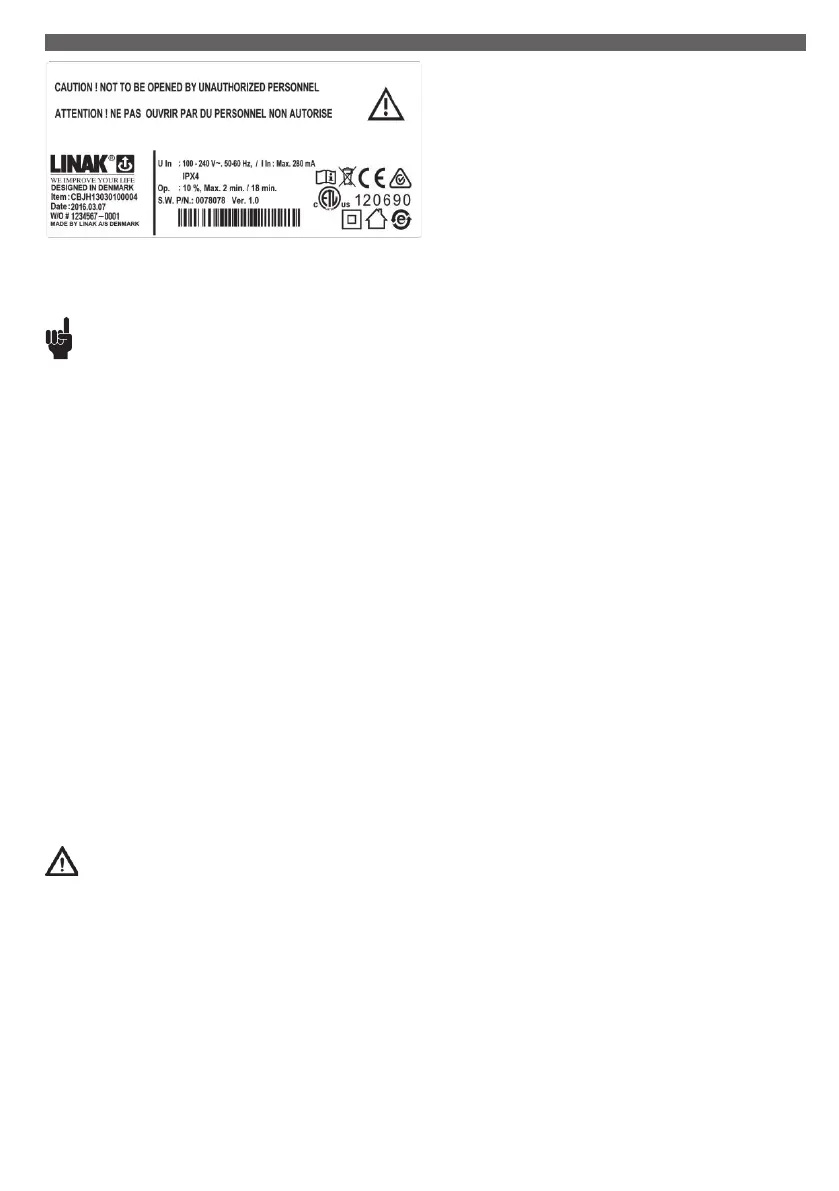

• CBJ Home with internal charger: Nominal current draw max. 280 mA
Power consumption (standby) max. 1.3 W
Power consumption (charging) max. 12 W
• Duty cycle: Max. 10 % or 2 min. continuous use then 18 min. without use.
• Ambient temperature: + 5 °C to + 40 °C
• Storage temperature: - 10 °C to + 50 °C
• Approvals: IEC60601-1, ANSI/AAMI ES60601
5. CBJ-Home (MEDLINE
®
CARELINE
®
)
Recommendations
• If emergency stop is pressed whilst charging, the batteries will not be charged.
• When charging, the CBJ Home will not be able to operate any actuators.
• For recharging the batteries, use charger CH01 (charger has to be ordered separately).
• Note: Always mount the CBJ Home with the channel sockets facing downwards
• The CBJ Home is not intended for use with “buffer” type actuators such as LA28 and LA32.
• The actuator must always be fitted with an exchangeable cable (mini-fit) socket.
• Actuators on channel 1 must always be with spline.
• The mains cables must always be ordered separately when ordering a CBJ with an internal charger.
• Use only original LINAK mains cables to ensure proper connection to internal charger.
• Always use fully charged batteries for learning mode procedures.
• Only an authorised LINAK service centre should change a battery in a CBJ Home. If a CBJ Home is opened and a battery is changed by
unauthorised personnel, there may be a risk of malfunction
• When using the control box with emergency stop button, the stop button must be released before charging batteries or before the application
is put into operation
• It cannot be guaranteed that the actuator will stop exactly at the weight that is stored as the motors in the actuators will use less current when
run in. Though it will never reach the 1.5 times max. load as the norm states.
• Tolerance for current cut off is: +/-10 %
• The maximum cut-off value that can be registered (stored) is 8 Amp.
• If an actuator or CBJ Home is exchanged it will be necessary to reset the max. load to ensure the correct cut-off value for the new system as a whole.
• The registration function can only be activated by using a specially produced hand control (HB7X161-00). A standard hand control cannot activate
the function.
• To operate the “Learn mode” function in External charger versions produced before February 2010 press the “R” button when “learning” (the
lifting arm actuator will operate automatically). With all other versions (and future versions with external charger) both the “R” button and the
“lifting arm” button need to be pressed.
• It is possible to use the “learn mode” function for channel 2: To operate the learn mode function for channel 2, press the “R” button and
the “leg spread out” button at the same time. Run actuator with load and full cycle to record maximum current during a cycle.
Warning
• In order to avoid injury, the emergency stop should be activated in (all) transport situations.
• When “learn mode” is used, and channel 2 is pressed instead of channel 1, the CBJ Home will learn a new current limit of nearly 0 Amp.
This will make it impossible to run the actuator with channel 2 until a new learn mode has been programmed.
Mounting information:
The CBJ-Home is mounted by means of 2 screws:
Type ISO4762-M6x90-8.8 ( not supplied by LINAK )
Spares information:
The cable lock kit consists of the following 3 items:
• 2 x screws
• 1 x blind plug for ch. 2 if not in use
• Cable Lock
All the cable lock items are included when ordering the kit, article number: 0898001-B.
The mounting screws for the control box and the charger must be tightened with a maximum torque of 1 Nm.
