Page 53 of 192
The LA30 is a powerful actuator yet small enough to fit most applications.
The actuator can be supplied with options such as built-in potentiometer for servo
operation or an extra powerful motor for increased speed and strength (S-motor).
In addition to industrial and agricultural applications, the actuator is also ideal for
positioning satellite dishes.
Usage:
• Duty cycle: 10 %, 2 minutes continuous use followed by 18 minutes not in use
• Ambient temperature: + 5 °C to + 40 °C
• Storage temperature: - 40 °C to + 70 °C
• Compatibility: CB8, CB12,
• Approvals: IEC 60601-1, ANSI/AAMI ES60601-1 and CAN/CSA-22.2 No 60601-1
• Should the LA30 be used with a non LINAK control unit, please ask the nearest
LINAK representative for further details
10. LA30 (MEDLINE
®
CARELINE
®
TECHLINE
®
)
Recommendations

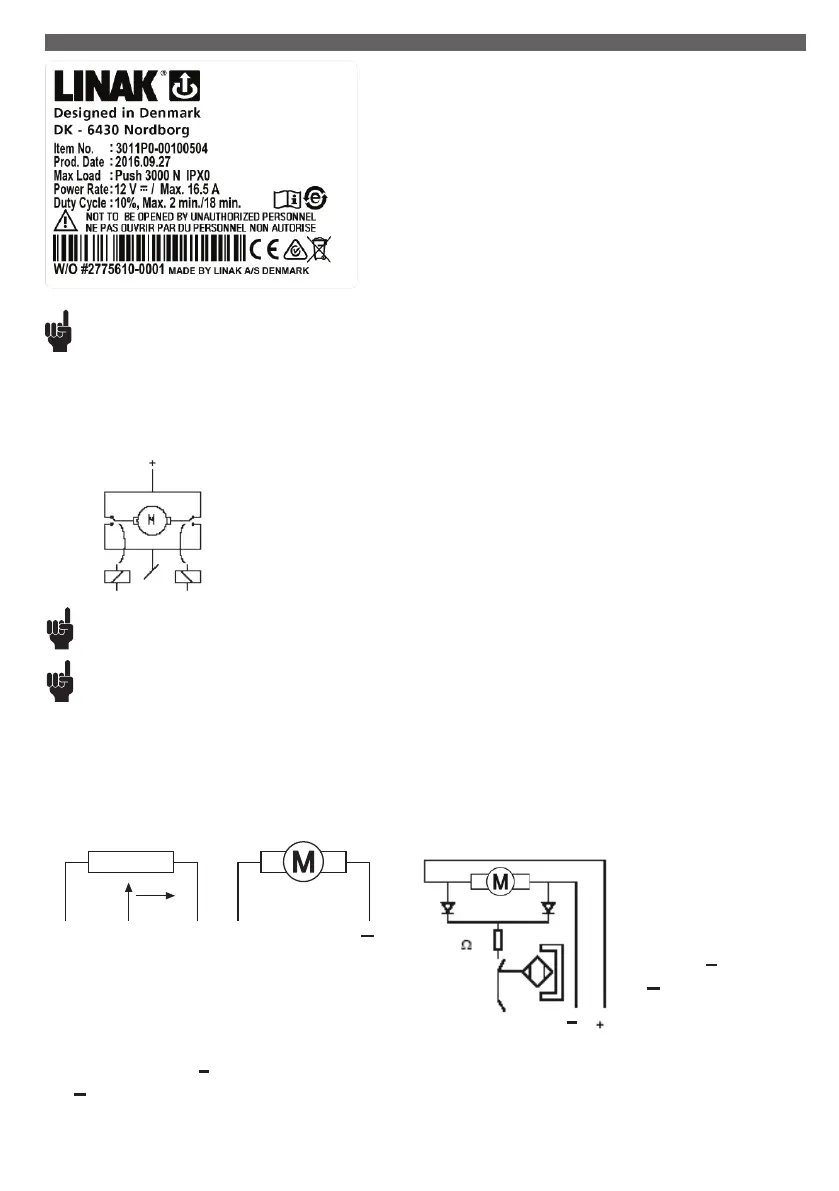

LINAK control boxes are designed so that they will short-circuit the motor terminals (poles) of the actuator(s), when the actuator(s) are not running.
This solution gives the actuator(s) a higher self-locking ability. If the actuator(s) are not connected to a LINAK control box the terminals of the motor
must be short-circuited to achieve the self-locking ability of the actuator.
Improved self-locking ability
When using the LA30 with stereo jack plug be aware of the reversed direction of travel as standard.
The current supply to LINAK actuators must be cut off in case of overload when the actuators reach end position.
Various other information:
Noise levels:
LA30: dB(A) 50; LA30S: dB (A) 55; LA30L: dB(A) 48.
Measuring method DS/EN ISO 3743-1, actuator not loaded.
The H-bridge ensures that the motor is shorted when the relays are incactive.
This is necessary to improve the self-locking of the actuator.
+
Black
Blue
Brown
Red / Yellow
Green / White
LA30 Actuator with potentiometer
Red / Yellow
Green / White
Out going
In going
+
+
LA30 Actuator with reed ( only possible with 24V L-motor )
Brown Black
+
+
Out going
In going
Please note that the voltage level og feedback signal depends on the
actuator load.
Blue
Black
Brown
Pulse
3.9 k
