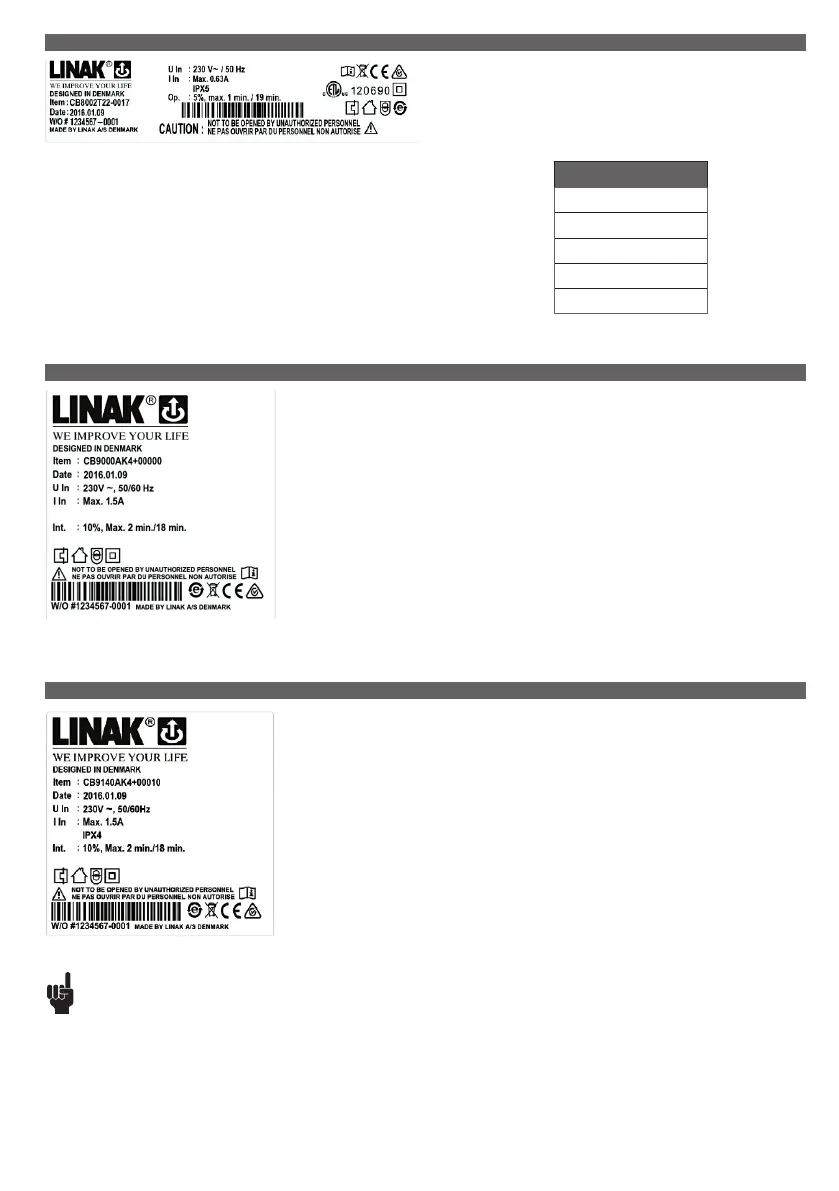

The CB8-T is developed for use with LINAK A/S’ actuators and handsets.
The control box can operate up to 2 actuators individually.
The simple compact design combined with high quality makes the control
box ideal for use with beds, chairs, tables and many other applications.
CURRENT CUT-OFF (A)
2 A (2.35 +/- 0.35 Amp.)
3 A (3.00 +/- 0.35 Amp.)
4 A (4.00 +/- 0.50 Amp.)
5 A (5.35 +/- 0.50 Amp.)
6 A (5.90 +/- 0.70 Amp.)
Values in brackets
show tolerances.
Important: Individual current cut-off:
The current to each actuator is monitored and when this reaches a specified value, the current to
that actuator is cut-off.
As the actuators do not have the same current consumption the cut-off values must also be
different. Therefore it must be specified which actuator is to be connected to which channel:
The CB9 has been developed for Home use. The CB9 and the LA31 can be fully integrated, which saves
mounting and wiring or be installed separately.
The HOMELINE CB9 series is available as either analogue (Ax) or μ-processor based (Px) types.
Recommendations
LA34 fast motor is not compatible with any standard versions of CB9, due to high current consumption. For use of LA34 standard
motor and small motor always use a CB9 with EAS.
Additionally, actuators with reed switch may not be connected to AC, AJ, AK, AF, AL or AM types because of a conflict between the
CB-signal wires and the reed wires !
The CARELINE
®
CB9 has been developed for use together with LA31/LA31R, LA34/LA34R* in the
Care & Rehab industry. CB9 and LA31 can be fully integrated which saves mounting and wiring or be
installed separately.
Exchangeable mains cables, Electronic Overload Protection (EOP), EAS, earth connection (Class 1) and
exchangeable mains fuse makes CB9 a good choice for the simple hospital and care beds.
Usage:
• Duty cycle: Max. 10 % or 2 min. continuous use followed by 18 min. not in use
• Ambient temperature: + 5 °C to + 40 °C
• Compatible with up to 4 actuators, type LA31/LA31R and LA34/LA34R, via 4-pole DIN sockets
• Compatible with BA18
• Medically approved according to EN 60601-1/UL 60601-1
8. CB8-T (MEDLINE
®
CARELINE
®
TECHLINE
®
)
9. CB9 (HOMELINE
®
)
10. CB9 (MEDLINE
®
CARELINE
®
)
