The LA44 Intelligent Control (IC) enables a simple system consisting of 1 or 2 actuators,
a Switch Mode Power Supply and a hand control or footswitch.
The system is for example an advantage when there is no space for a control box.
Usage:
• Duty cycle: 10 %, 2 minutes continuous use followed by 18 minutes not in use
• Usage temperature: + 5 ºC to + 40 ºC
• Storage temperature: -10 ºC to + 50 ºC
• Compatibility: SMPS30
• Approvals: IEC60601-1, ANSI/AAMI ES60601-1

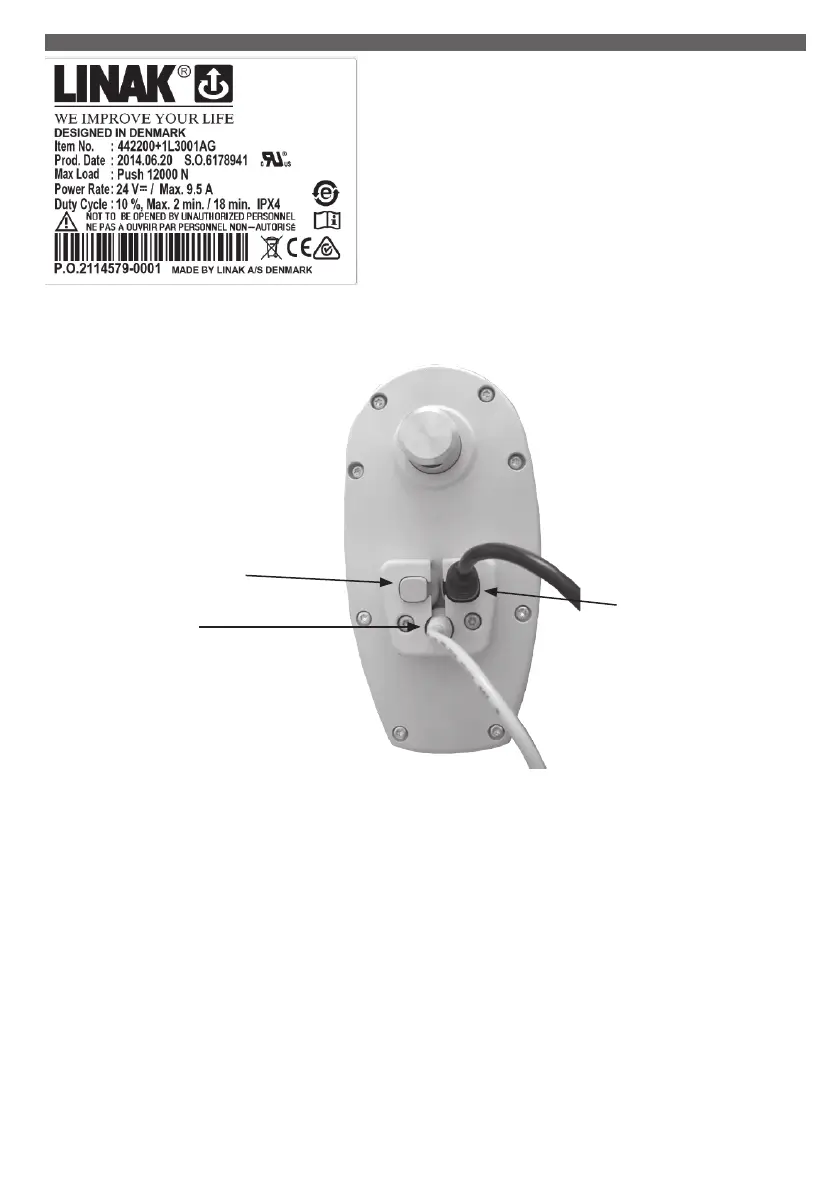

Cable connections:
Hand control / FS connection,
10-pole modular jack /
5 wire standard cable.
SMPS connection,
4-pole minifit plug.
Blind plug or second actuator
connection, 6-pole minifit plug.
Cable connection and cable lock
Tighten the two screws with approx.1.5 Nm torque, to secure the cable lock.
Precautions, Recommendations and Warnings - please see LA44 user manual
19. LA44 IC (MEDLINE
®
