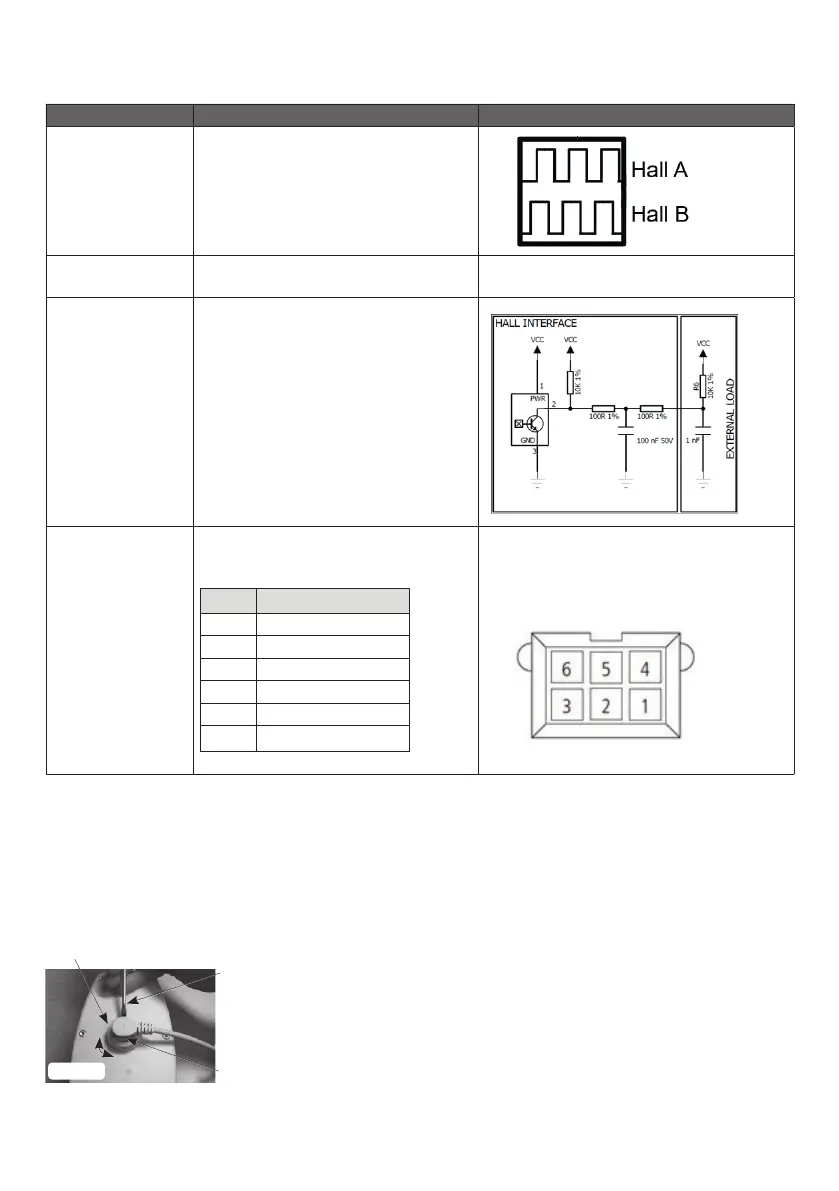

Page 70 of 192
Item Specification Comment
Description The actuator can be equipped
with Dual Hall that gives a relative positioning
feedback signal when the actuator moves.
Input voltage 4-15V
The feedback circuit has to be powered 50 ms before
driving and until the actuator has stopped moving
Current Maximum 15mA @10kΩ and 1nF load.
See diagram.
Pin configuration LA44 Mini-Fit plug cable (hall)
with feedback
Hall
Pin1 Hall GND
Pin2 Vbus
Pin3 M+ (Motor/Power)
Pin4 Hall A
Pin5 Hall B
Pin6 M- (Motor/Power)
PCBA header top view
Feedback specifications
Hall
Unlocking the plug/smart cable lock
Using a tool, release the lock (must be from the side shown) by pushing the tap
(through the small slot in the side of the lock).
At the same time, turn the lock 90 ºC in either direction to release the plug connection.
Flanges in locked position
Fig. 1
Press here with tool
No tap on this side
Turn to open
