Page 149 of 192
The Foot Switch is a modular system, developed for use together with some of LINAK control boxes.
The LINAK Foot Switch is designed for control of physiotherapeutic beds, hospital beds, dentist chairs,
gynaecologist chairs, computer workstations, and working desks etc. It can also be used as a “stand alone”
item for industrial applications.
Footswitch
Consist of: FS (a pedal unit) and FSE (electronics unit), which can activate one or more actuators. The module
system can max. consist of two pedal units, a FSR (right pedal), a FSL (left pedal), and one electronics box.
The FS2 Foot Switch is developed for use together with some of LINAK control boxes and especially designed
for mounting on a support plate.
The Foot Switch is available in a single and a double version.
The double version can be used on a bed where one Foot Switch will be mounted on each side of the bed
frame, thus enabling operation from both sides.
Bed adaptorFloor adaptor
The Foot Switch FS3 is an ergonomically designed modular system, developed for use together with LINAK control boxes and IC actuators with
Intelligent Control. The LINAK
®
Foot Switch is designed for easy and improved control of e.g. hospital beds and couches and has been developed in
cooperation with end users. The Foot Switch is therefore very user- and cleaning-friendly and has an aesthetic design.
The FS3 is a robust foot control which is available both as a single and double version as well as a floor and bed model. When mounting the double
version on a bed, the Foot Switch will be placed on each side of the bed frame to enable easy operation from both sides. It is also possible to have
the double floor version for medical applications, e.g. couches, in order to achieve the opportunity to control different motions of the application. The
FS3 is furthermore available in an analogue version and a digital OpenBus™ version.
Usage:
• Usage temperature: + 5 ºC to + 40 ºC
• Storage temperature: -10 ºC to + 50 ºC
• Relative humidity: 20 % to 80 % at +30 °C
• Atmospheric pressure: 700 to 1060 hPa
• Compatibility: LA27CS, LA43 IC, LA44 IC, analogue control boxes and OpenBus
TM
control boxes
• Approvals: IEC60601-1:2005 3
rd
edition, ANSI / AAMI ES60601-1:2005 3
rd
edition and CAN / CSA-22.2 No 60601-1:2008

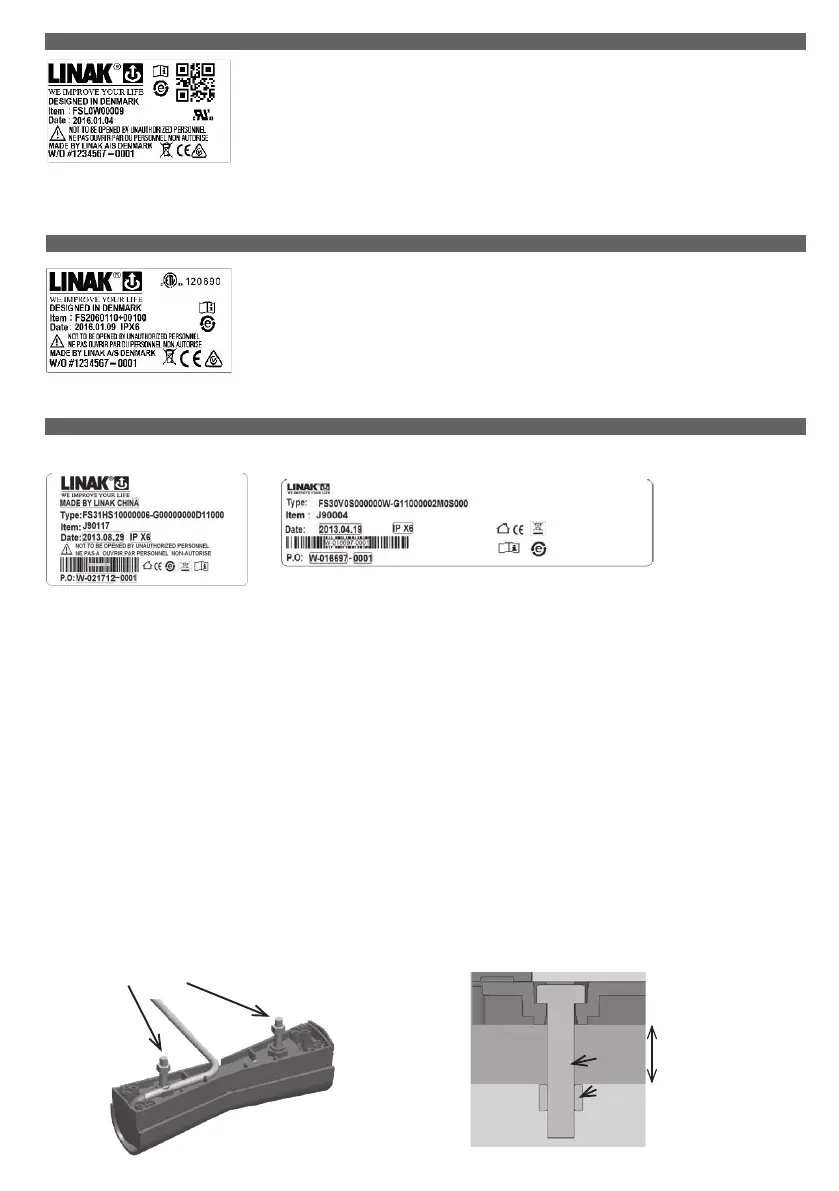

Mounting of the FS3 bed model:
To mount the FS3 bed model, you have to use the bolt and the nut which have already been fitted to the FS3 bed model (see picture below).
Bolt and nut for mounting
7 mm
Bolt M5 x 25
Nut M5
11. FS (MEDLINE
®
CARELINE
®
TECHLINE
®
)
12. FS2 (MEDLINE
®
CARELINE
®
)
13. FS3 (MEDLINE
®
CARELINE
®
)
